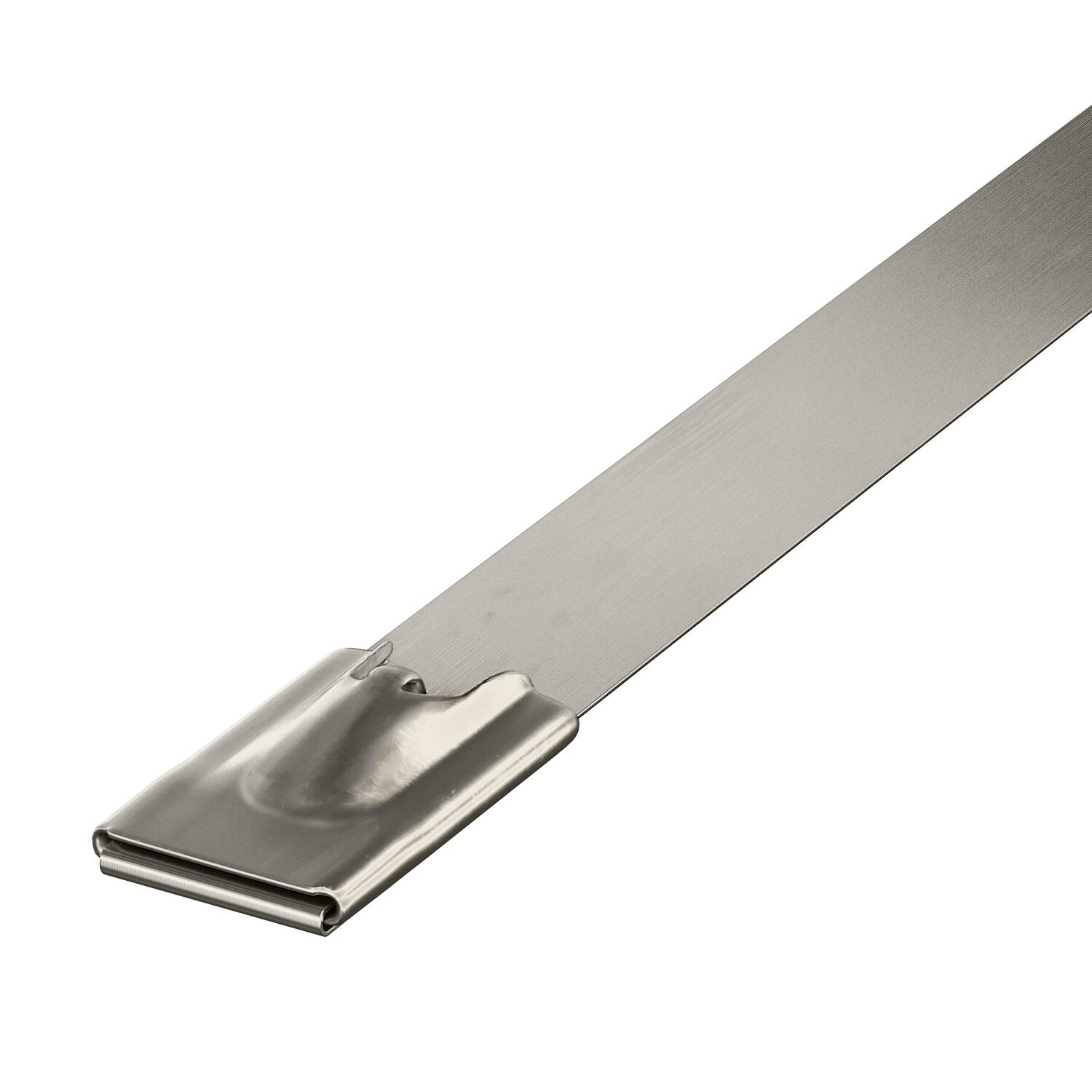

Metal strip clips, wide
Item no. 7203111 | EAN 4012197436988
- Product description
-
Product descriptionMetal strip clip in a smooth finish with ball lock. For high-temperature and weather-resistant fastening. Use spring chuck MBS-Z for tightening.
- Technical data
-
Technical data
Colour stainless steel Dimension 12x1000 Dimension L 1000 mm Dimension t 0,25 mm Fastening type Without Halogen-free yes Height 6,5 mm Labelling area Without Length 1000 mm Material Stainless steel Max. Bundle diameter 145 mm MIL approval no Mounting temperature, max. 50 °C Mounting temperature_min. 5 °C Permitted temperature range, max. 70 °C Permitted temperature range, min. -20 °C Reflective no Releasable lock no Strip closure Ball lock Surface Bright, treated Transparent no UL approval no UV-resistant yes Version for Without toothing VG approval no Width 12 mm - All types
- Downloads
-
Data sheet MBS 100 A2 / 7203111 , 0.19MB , pdf
