Metal strip clips, narrow
Item no. 7203099 | EAN 4012197436896
- Product description
-

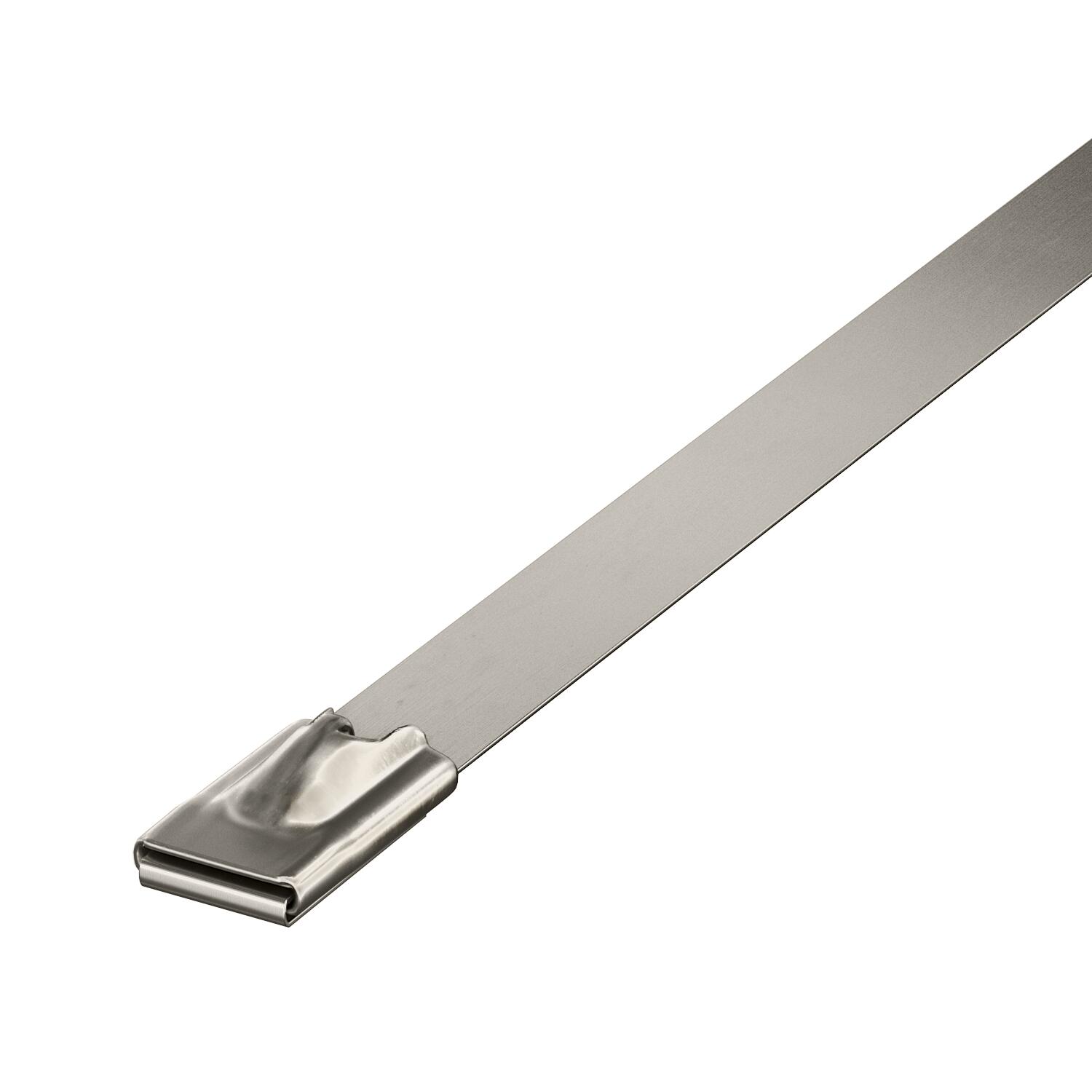

Product descriptionMetal strip clip in a smooth finish with ball lock. For high-temperature and weather-resistant fastening. Use spring chuck MBS-Z for tightening.
- Technical data
-
Technical data
Colour stainless steel Dimension 7,9x150 Dimension L 150 mm Dimension t 0,25 mm Fastening type Without Halogen-free yes Height 5,5 mm Labelling area Without Length 150 mm Material Stainless steel Max. Bundle diameter 16 mm MIL approval no Mounting temperature, max. 50 °C Mounting temperature_min. 5 °C Permitted temperature range, max. 70 °C Permitted temperature range, min. -20 °C Reflective no Releasable lock no Strip closure Ball lock Surface Bright, treated Transparent no UL approval no UV-resistant yes Version for Without toothing VG approval no Width 7,9 mm - All types
- Downloads
-
Data sheet MBS 015 A2 / 7203099 , 0.17MB , pdf
