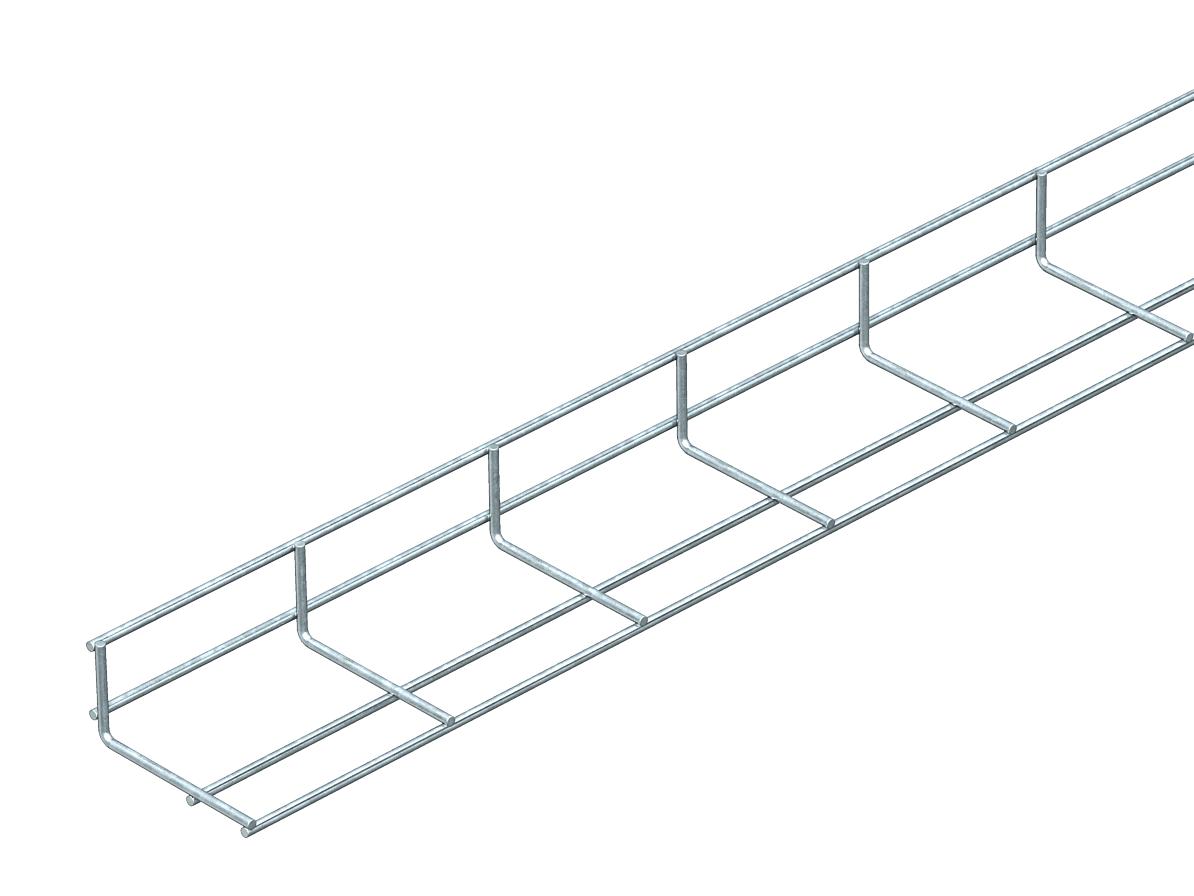

Mesh angle
Item no. 6003818 | EAN 4012196002955
- Product description
-
Product descriptionMesh angle for routing cables in steel girders.
Magnetic shield insulation without cover 15 dB, with cover 25 dB.
-
- Technical data
-
Technical data
CO2 Footprint (GWP) Cradle-to-Gate 1,4001 kg CO2e / 1 Meter Colour zinc Connector version Without connectors Dimension 80x40x2000 Height 80 mm Integrated partition Without Length 2000 mm Material Steel Rustproof steel, pickled no Surface Hot-dip galvanised Type of connector, cable support system Screwed Usable cross-section 32 cm² Usable cross-section 3200 mm² Wide-span version no Width 40 mm Width 1,57 in Wire diameter 4,4 mm - All types
- Downloads
-
Data sheet GW 40 80 FT / 6003818 , 0.18MB , pdfCatalogue Cable support systems , 54.52MB , pdfEU declaration of conformity GW 40 80 FT / 6003818 , 0.10MB , pdfREACH Declaration of conformity GW 40 80 FT / 6003818 , 0.12MB , pdfRoHS Declaration of conformity GW 40 80 FT / 6003818 , 0.13MB , pdfMounting instructions General information on the mounting , 2.65MB , pdfMounting instructions Mounting instructions, mesh cable tray systems , 9.52MB , pdf
