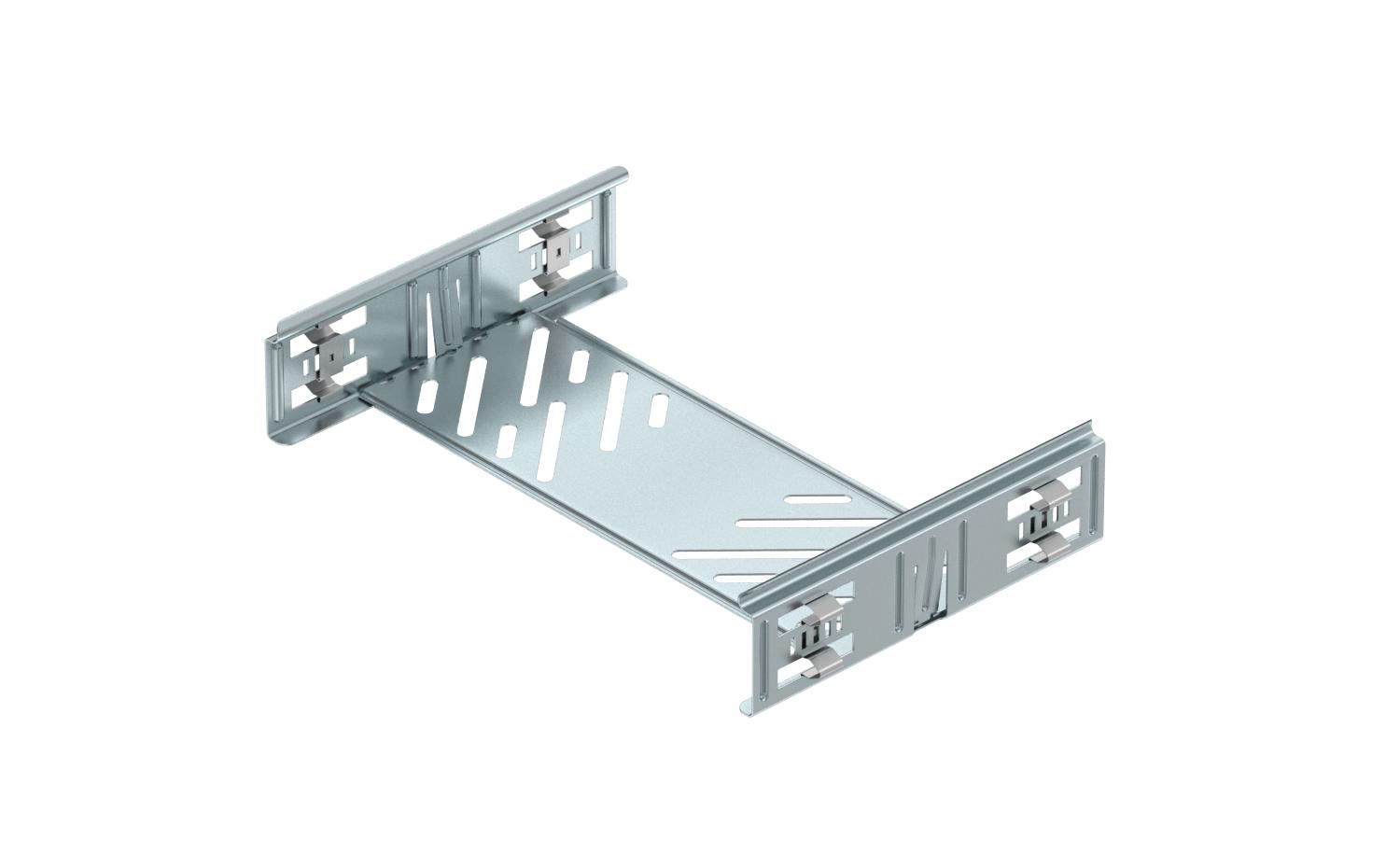

Magic® FS straight connector set

Item no. / Types

Width

Height	60 mm

Dimension B

Plate thickness	1 mm

Colour	zinc

Product description

Product description

Cable tray connector with quick fastening for the screwless connection of perforated cable trays with a side height of 60 mm.

Technical data

Adjustable connector, horizontal	no
Articulated connector, vertical	no
CO2 Footprint (GWP) Cradle-to-Gate	1,1502 kg CO₂e / 1 Piece
Colour	zinc
Connection type	Screwless connector

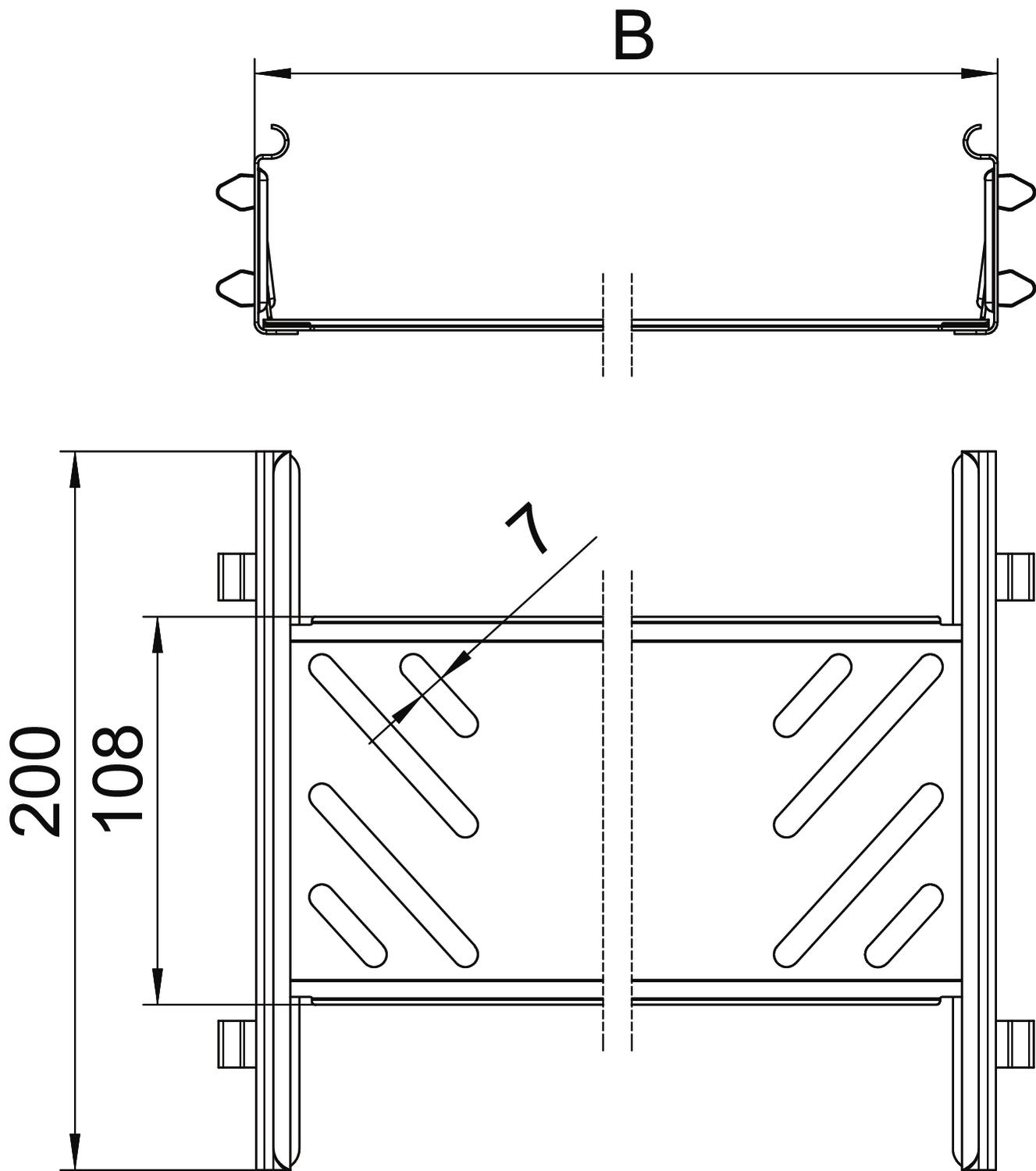

Dimension	60x100x200
Dimension	60x100
Dimension B	100 mm
Height	2 in
Height	60 mm
Length	200 mm
Maintain electrical functions	no

Material	Steel
Plate thickness	1 mm
Rustproof steel, pickled	no
Suitable for cable ladder	no
Suitable for cable tray	yes
Suitable for cable tray system height	60 mm
Suitable for mesh cable tray	no
Surface	Strip galvanized
Version for	Straight connector
Width	100 mm
Width	4 in

All types

All types

Types	Width	Height	Dimension B	Plate thickness	Colour	Item no.
KTSMV 610 FS	100 mm	60 mm	100 mm	1 mm	zinc	6068914
KTSMV 615 FS	150 mm	60 mm	150 mm	1 mm	zinc	6068916
KTSMV 620 FS	200 mm	60 mm	200 mm	1 mm	zinc	6068918
KTSMV 630 FS	300 mm	60 mm	300 mm	1 mm	zinc	6068920
KTSMV 640 FS	400 mm	60 mm	400 mm	1 mm	zinc	6068922
KTSMV 650 FS	500 mm	60 mm	500 mm	1 mm	zinc	6068924
KTSMV 660 FS	600 mm	60 mm	600 mm	1 mm	zinc	6068926
