Magic bend, variable 110 FS
Item no. 6040680 | EAN 4012195992745
- Product description
-

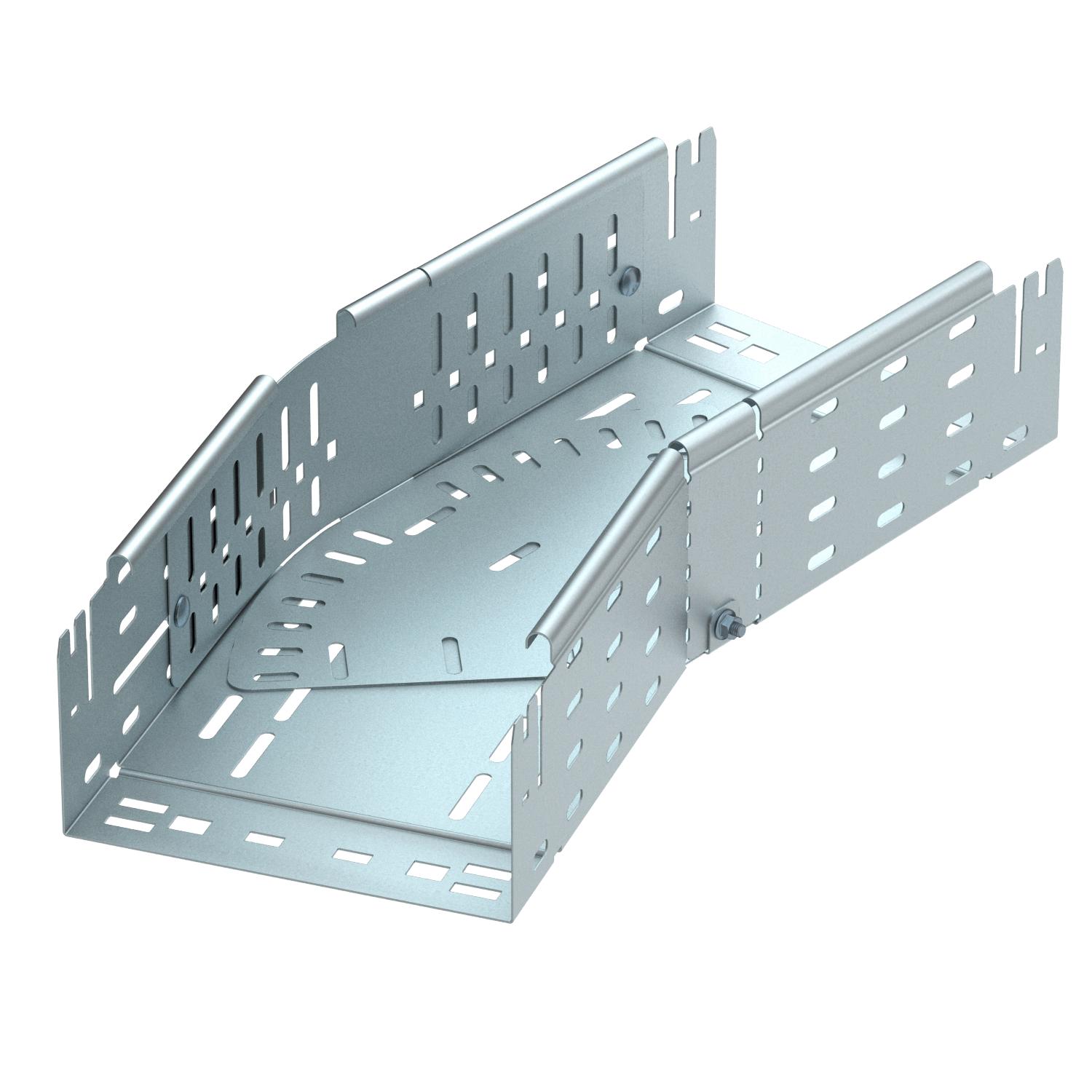

Product descriptionMagic bend 0°–90°, variable, with quick connector system. For all cable tray types of 110 mm side height.
-
- Technical data
-
Technical data

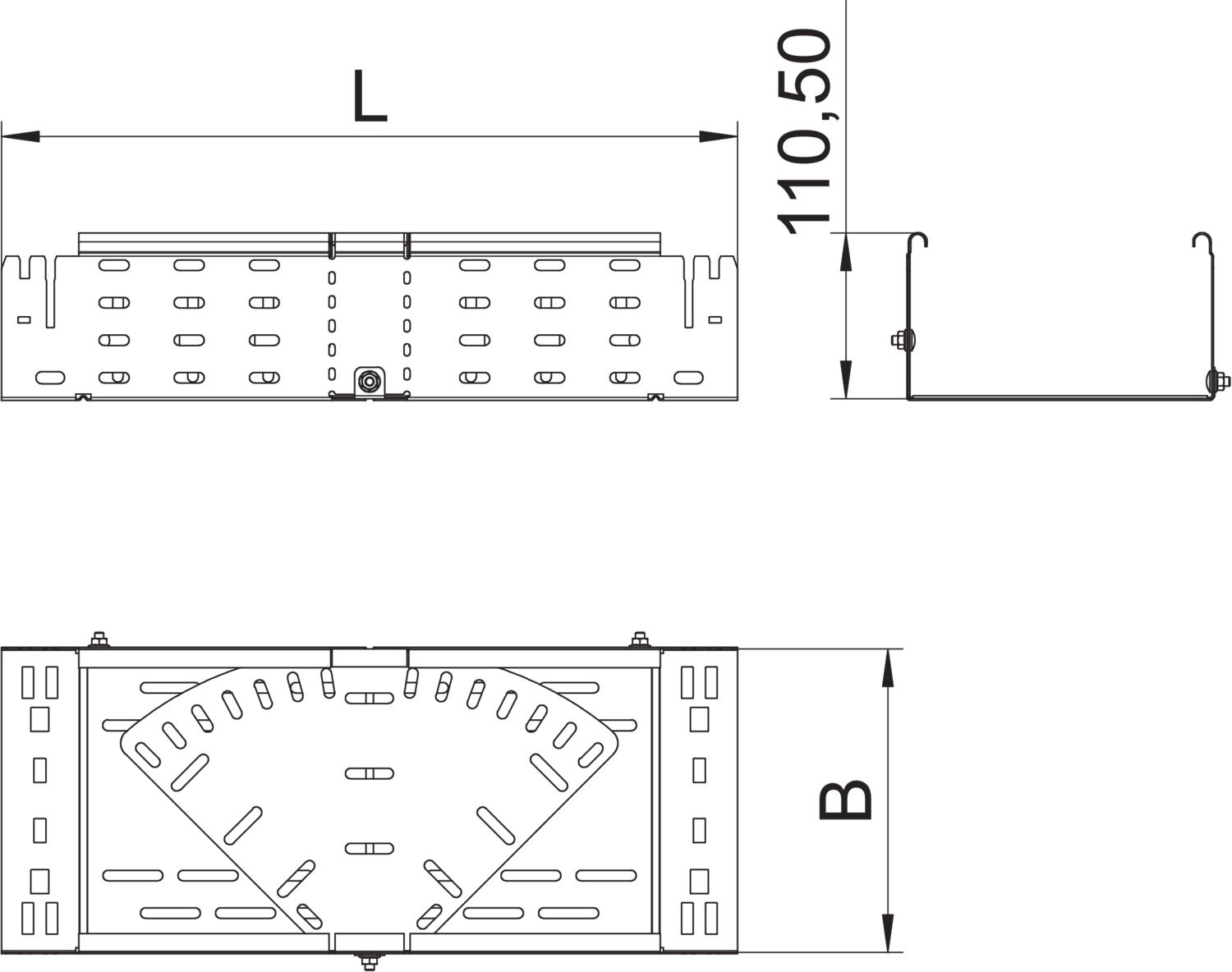

Bend (angle) Adjustable Change of direction Horizontal CO2 Footprint (GWP) Cradle-to-Gate 3,8944 kg CO2e / 1 Piece Colour zinc Connector version Integrated connector Dimension 110x100 Dimension B 100 mm Dimension L 340 mm Height 110 mm Maintain electrical functions no Material Steel Mounting perforation in base yes NATO hole pattern no Plate thickness 1 mm Rustproof steel, pickled no Side perforation yes Surface Strip galvanized Type of connector, cable support system Click fastening Wide-span version no Width 100 mm - All types
- Downloads
-
Data sheet RBMV 110 FS / 6040680 , 0.20MB , pdfEU declaration of conformity RBMV 110 FS / 6040680 , 0.11MB , pdfUK Declaration of Conformity RBMV 110 FS / 6040680 , 0.09MB , pdfREACH Declaration of conformity RBMV 110 FS / 6040680 , 0.12MB , pdfRoHS Declaration of conformity RBMV 110 FS / 6040680 , 0.12MB , pdfMounting instructions General information on the mounting , 2.65MB , pdf
