Locknut, PG thread, light grey Pg_21 | 36
morepic-1 morepic-2 morepic-3

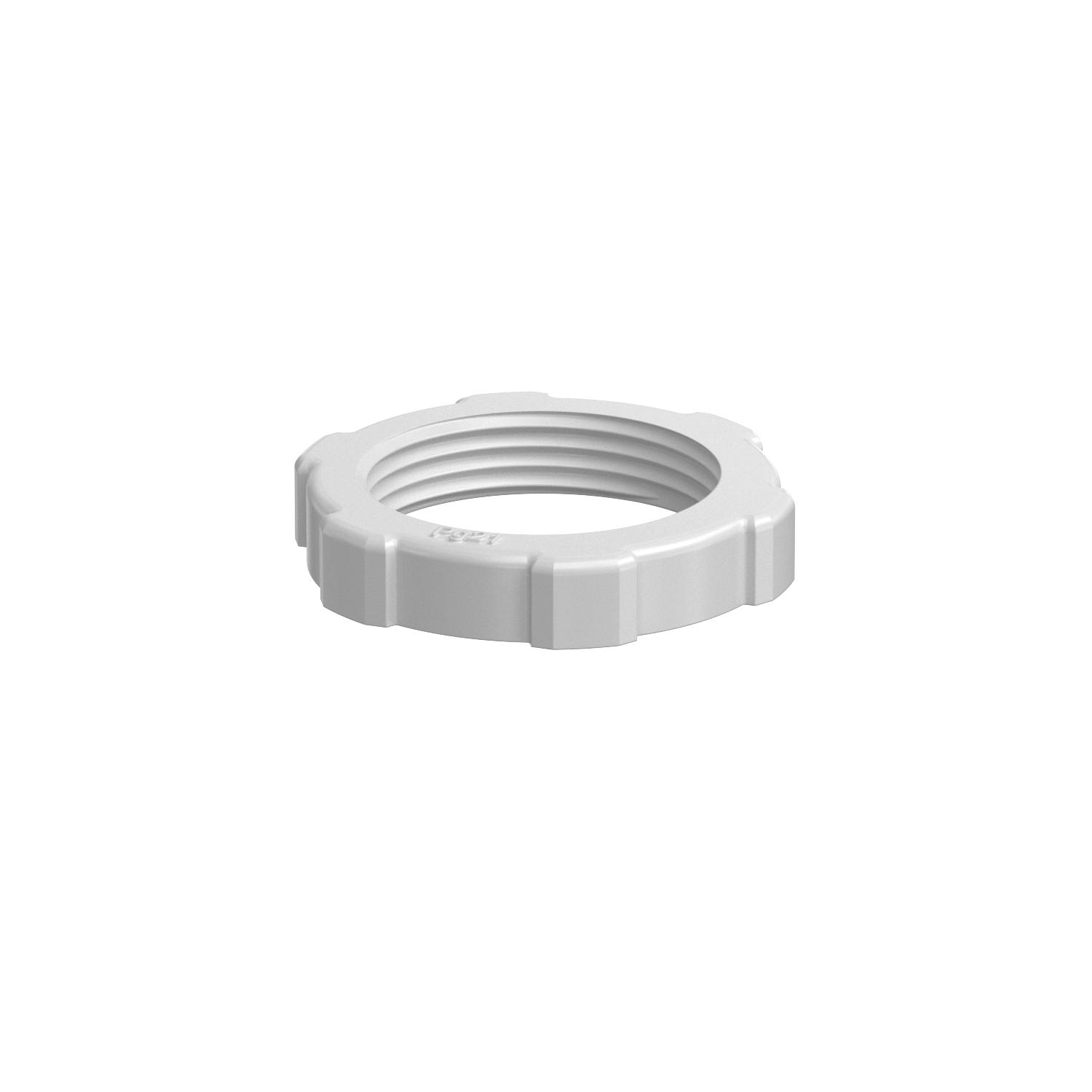

Locknut, PG thread, light grey

Item no. 2048221 | EAN 4012195182719

Product description
Product description
Locknut DIN 46320, with PG thread DIN 40430.
  • Halogen-free; without chlorine, fluorine and bromine
  • Communautés Européennes, EC declaration of conformity according to EC directives
  • Thread Pg
Technical data

Technical data

CO2 Footprint (GWP) Cradle-to-Gate 0,0227 kg CO₂e / 1 Piece
Colour Light grey; RAL 7035

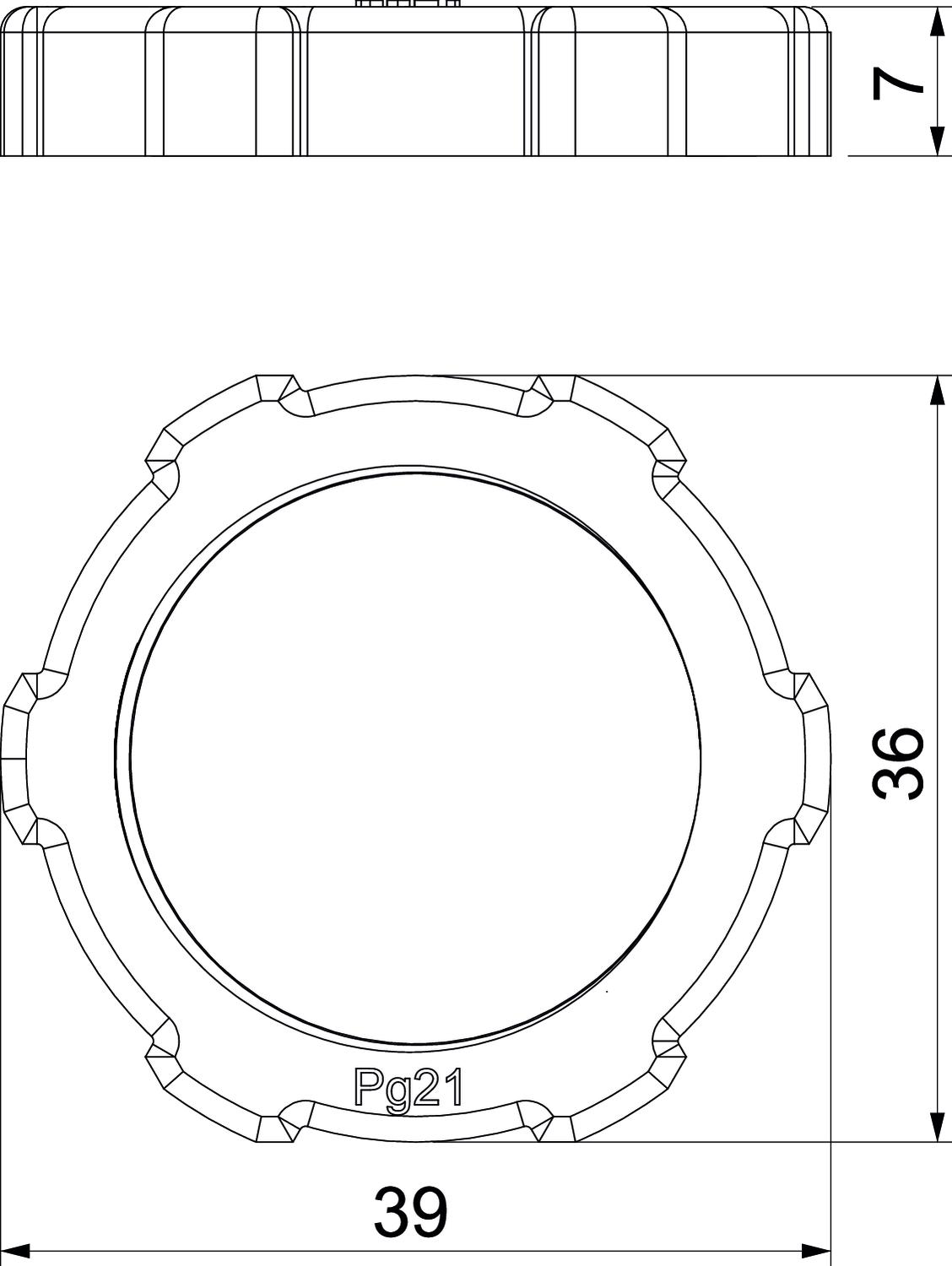

Dimension PG21
Dimension E 39 mm
Dimension L 7 mm
Fibre-glass reinforced no
Halogen-free yes
Impact-resistant no
Material Polyamide
Nominal thread size metric/PG 21
Thread Pg_21
Thread type PG
WAF 36
All types

All types

Types Thread WAF Item no.
116 VDE PG7 PA Pg_7 19 2048078
116 VDE PG 9 PA Pg_9 22 2048094
116 VDE PG11 PA Pg_11 24 2048116
116 VDE PG13.5PA Pg_13,5 27 2048132
116 VDE PG16 PA Pg_16 30 2048167
116 VDE PG21 PA Pg_21 36 2048221
116 VDE PG29 PA Pg_29 46 2048299
116 VDE PG36 PA Pg_36 60 2048361
116 VDE PG42 PA Pg_42 65 2048426
116 VDE PG48 PA Pg_48 70 2048485
