Locknut, metric thread
Item no. 2049538 | EAN 4012195153313
- Product description
-

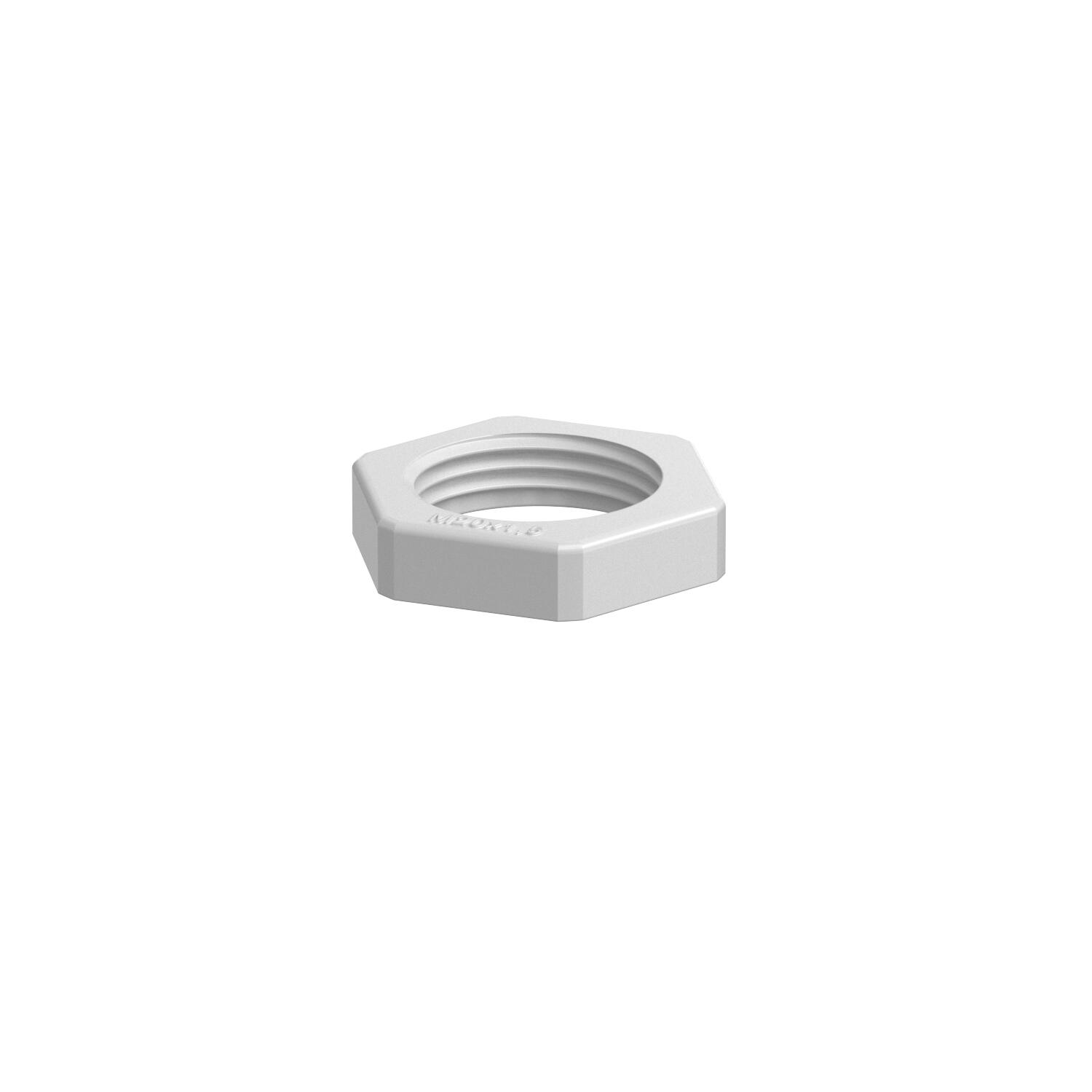

Product descriptionLocknut to DIN 46319, with metric thread IEC 423.
Note: Only tighten polystyrene cable glands lightly due to the risk of stress crack formation.
-
- Technical data
-
Technical data

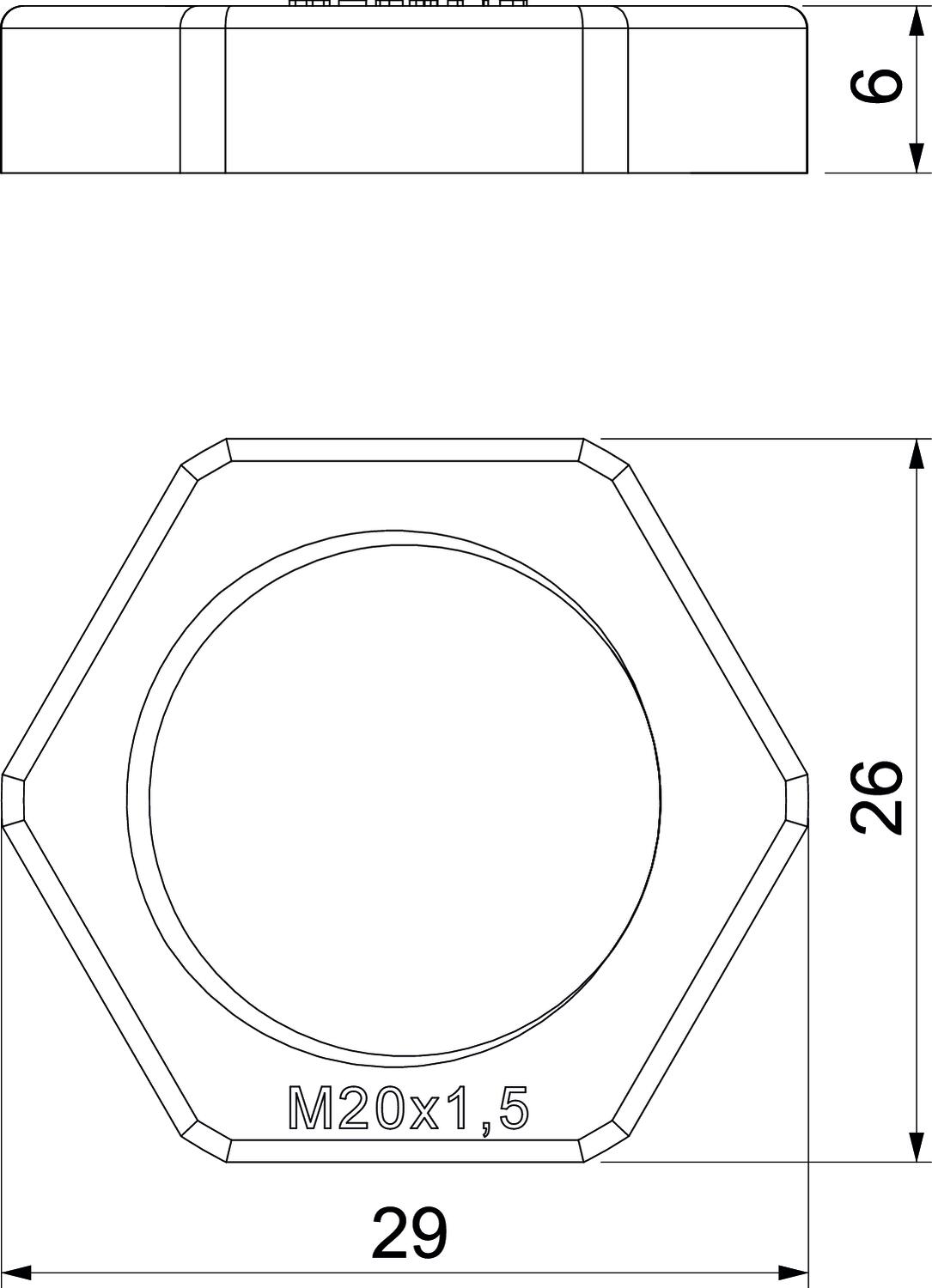

CO2 Footprint (GWP) Cradle-to-Gate 0,0067 kg CO₂e / 1 Piece Colour Light grey; RAL 7035 Dimension M20 Dimension E 29 mm Dimension L 6 mm Fibre-glass reinforced no Halogen-free yes Impact-resistant yes Material Polystyrene Nominal thread size metric/PG 20 Thread M20_x_1,5 Thread type Metric WAF 26 - All types
- Downloads
-
Data sheet 116 M20 LGR PS / 2049538 , 0.19MB , pdfEU declaration of conformity 116 M20 LGR PS / 2049538 , 0.10MB , pdfEU declaration of conformity EU declaration of conformity ,UK Declaration of Conformity 116 M20 LGR PS / 2049538 , 0.09MB , pdfREACH Declaration of conformity 116 M20 LGR PS / 2049538 , 0.12MB , pdfRoHS Declaration of conformity 116 M20 LGR PS / 2049538 , 0.13MB , pdf
