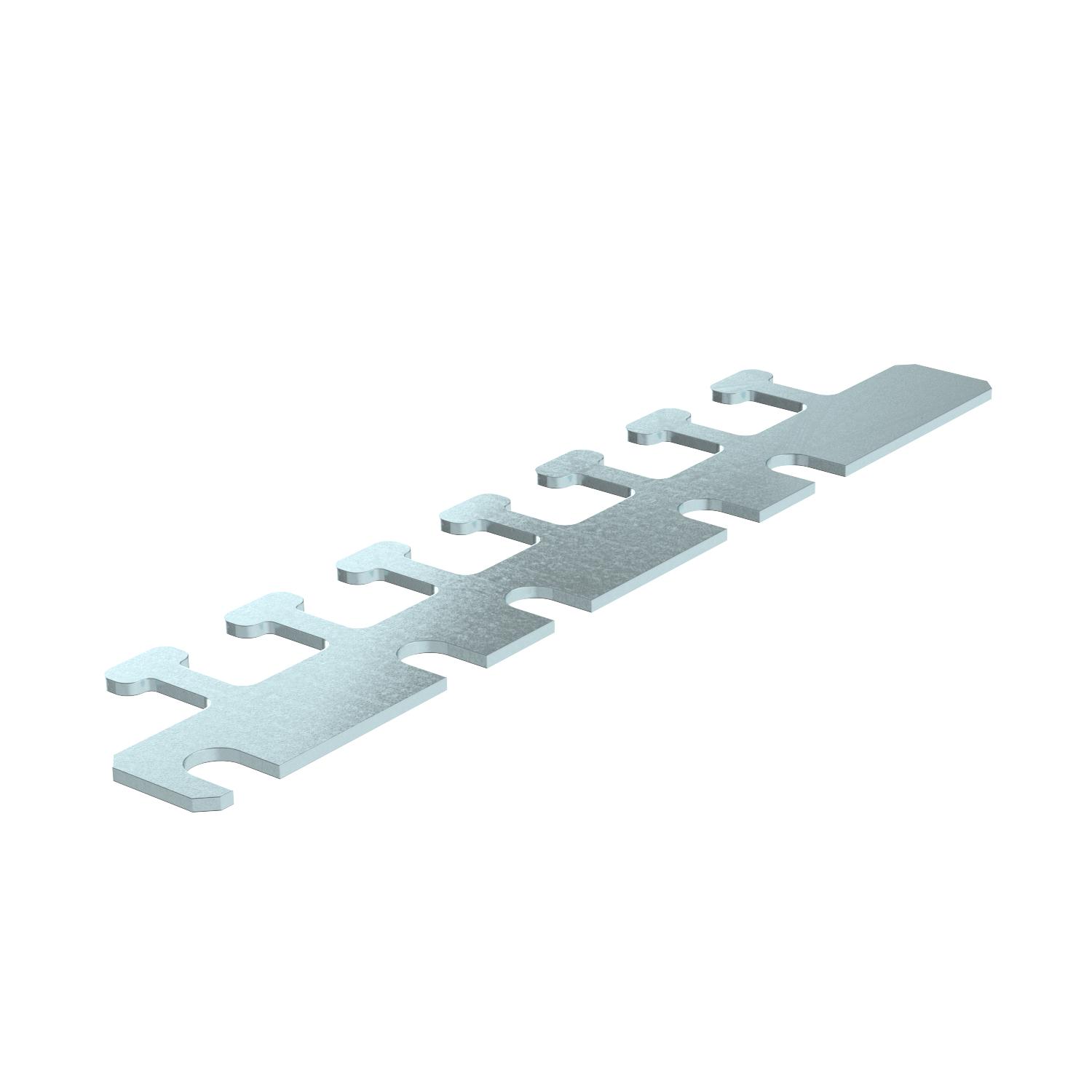

LKM cable bracket, trunking width 150 mm
Item no. 6249965 | EAN 4012196315611
- Product description
-
Product descriptionCable bracket to fix cables in vertical routing.
-
- Technical data
-
Technical data

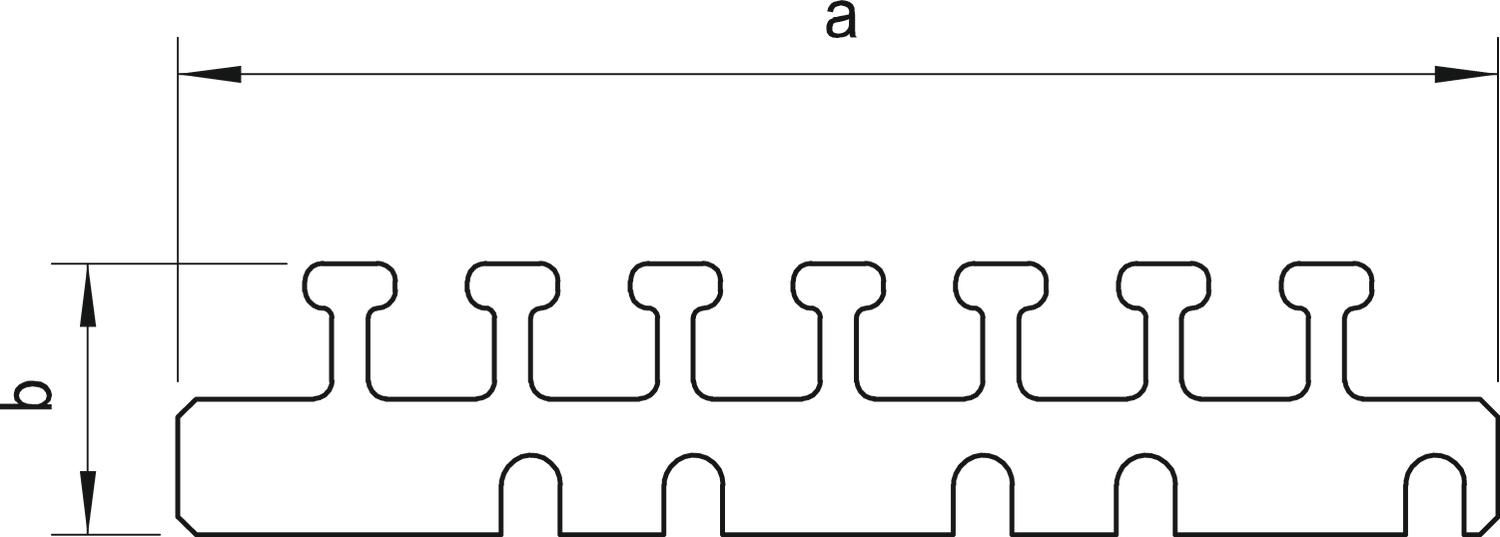

Colour zinc Cover width 150 mm Dimension 150mm Dimension a 146 mm Dimension b 30 mm Fastening type Screw-on for duct dimension 60 x 150 mm Halogen-free yes Height 1,4 mm Length 30 mm Maintain electrical functions no Material Steel Permitted temperature range, max. 90 °C Permitted temperature range, min. -5 °C Protection rating IP30 Protection rating IK code IK10 Self-extinguishing no Surface Strip galvanized Width 146 mm With equipotential bonding no - All types
- Downloads
-
Data sheet LKM Z150 / 6249965 , 0.19MB , pdfBrochure LKM cable trunking , 2.10MB , pdfCatalogue Cable routing systems , 17.62MB , pdfEU declaration of conformity LKM Z150 / 6249965 , 0.10MB , pdfUK Declaration of Conformity LKM Z150 / 6249965 , 0.09MB , pdfREACH Declaration of conformity LKM Z150 / 6249965 , 0.27MB , pdfRoHS Declaration of conformity LKM Z150 / 6249965 , 0.28MB , pdfLabel approval VDE symbol approval LKM , 0.15MB , pdfMounting instructions LKM-Kanal , 0.77MB , pdf
