LCIS 60 cable ladder, 3 m C30 FS
Item no. 6209608 | EAN 4012197347949
- Product description
-

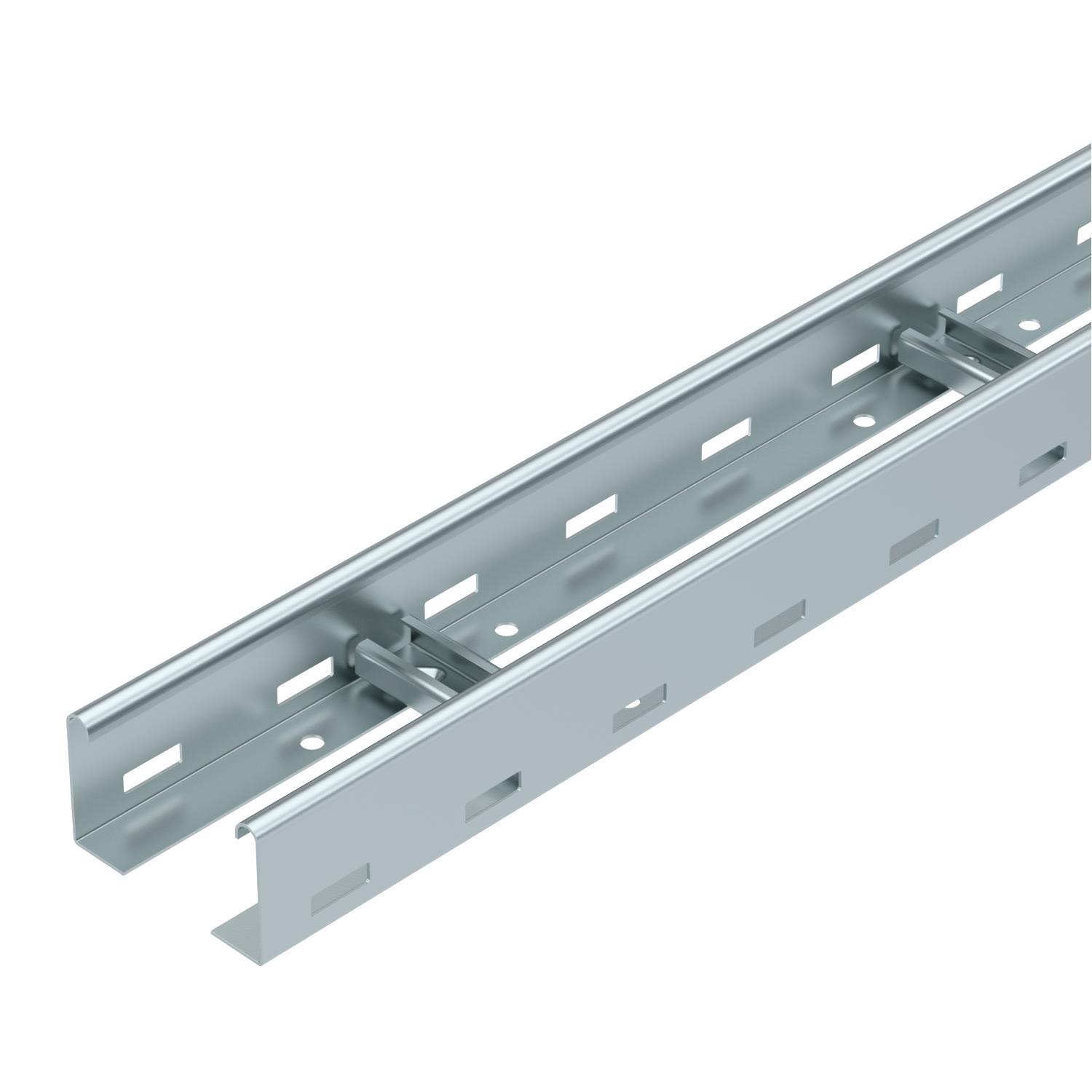

Product descriptionCable ladder with a 60 mm side height with welded C30 profile rungs which are open in an upwards direction. Rolled side rail for reinforcement and as edge protection. Fastening to the bracket takes place using hold-down clamps, type LKS 40. The slot dimension of the rung is 16.5 mm and the appropriate clamp clip is type BS-H....
Magnetic shield insulation without cover 10 dB, with cover 15 dB.
-
- Technical data
-
Technical data

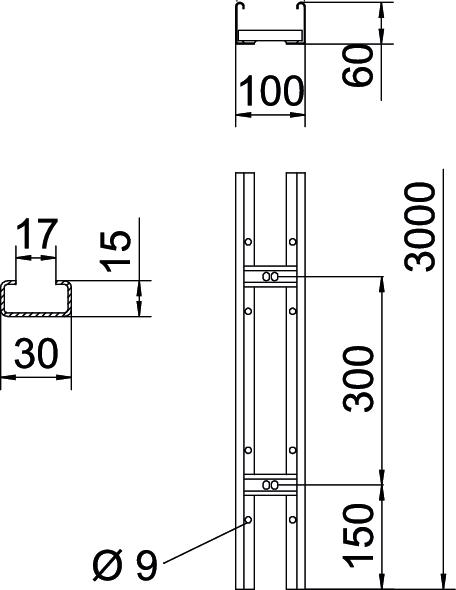

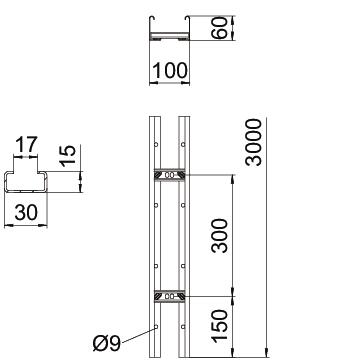

CO2 Footprint (GWP) Cradle-to-Gate 6,0747 kg CO₂e / 1 Meter Colour zinc Dimension 60x100x3000 Dimension B 100 mm Fastening of rung Welded Height 60 mm Length 3000 mm Maintain electrical functions no Material Steel Rail thickness 1,5 mm Rung distance 300 mm Rustproof steel, pickled no Side perforation yes Side rail version Flat profile Support spacing 1.5 m 2,8 kN/m Support spacing 2.0 m 1,3 kN/m Support spacing 2.5 m 0,8 kN/m Support spacing 3.0 m 0,6 kN/m Support spacing 4.0 m 0,25 kN/m Surface Strip galvanized Usable cross-section 40 cm² Usable cross-section 4000 mm² Version of the rungs Profile perforated Wide-span version no Width 100 mm - All types
