Large washer G 30 | 10.5 | 1.5 | M10
morepic-1 morepic-2

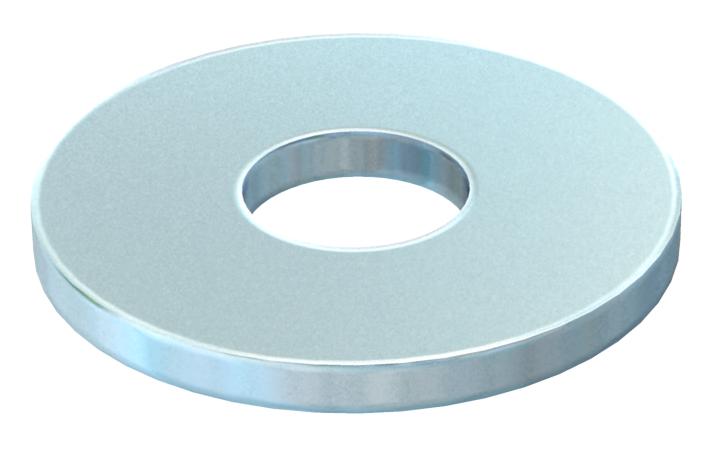

Large washer G

Item no. 3403165 | EAN 4012195868330

Product description
Product description
Washer of particularly large outer diameter.
  • Communautés Européennes, EC declaration of conformity according to EC directives
Technical data

Technical data

CO2 Footprint (GWP) Cradle-to-Gate 0,0179 kg CO₂e / 1 Piece

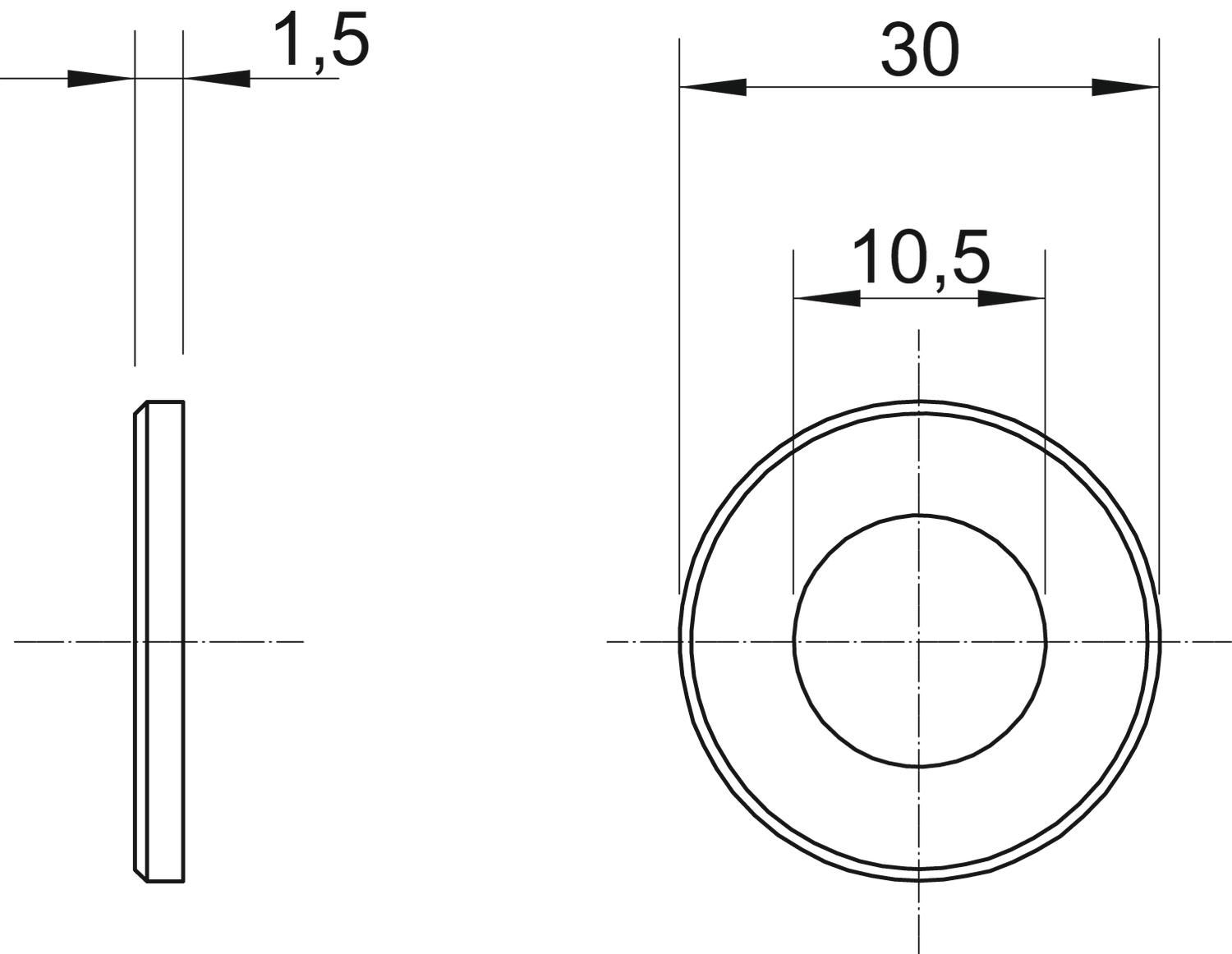

Dimension M10,Ø30mm
Dimension d 10,5 mm
Dimension d max. 30 mm
Dimension d min. 30 mm
Dimension h 1,5 mm
External diameter 30 mm
Faceted no
Hardened no
Inner diameter 10,5 mm
Material Steel
Material thickness 1,5 mm
Plate thickness 0,06 in
Surface Electrogalvanized
Thread M10
All types

All types

Types Dimension d min. Dimension d Dimension h Thread Item no.
WS M4 G15 G 15 mm 4.3 mm 1.2 mm M4 3403025
WS M5 G20 G 20 mm 5.3 mm 1.2 mm M5 3403041
WS M6 G20 G 20 mm 6.4 mm 1.25 mm M6 3403076
WS M6 G25 G 25 mm 6.4 mm 1.2 mm M6 3403084
WS M6 G30 G 30 mm 6.4 mm 1.3 mm M6 3403092
WS M6 G40 G 40 mm 6.4 mm 1.5 mm M6 3403099
WS M8 G20 G 20 mm 8.4 mm 1.25 mm M8 3403122
WS M8 G25 G 25 mm 8.4 mm 1.2 mm M8 3403130
WS M8 G40 G 40 mm 8.4 mm 2.5 mm M8 3403140
WS M10 G30 G 30 mm 10.5 mm 1.5 mm M10 3403165
