Large washer, A2

Item no. / Types

Dimension d min.

Dimension d

Dimension h	1.5 mm

Thread

Product description

Product description

Washer of particularly large outer diameter. In the case of connections on the MS 41 mounting rail, we recommend the external diameter of 40 mm.

Technical data

CO2 Footprint (GWP) Cradle-to-Gate	0,0119 kg CO₂e / 1 Piece

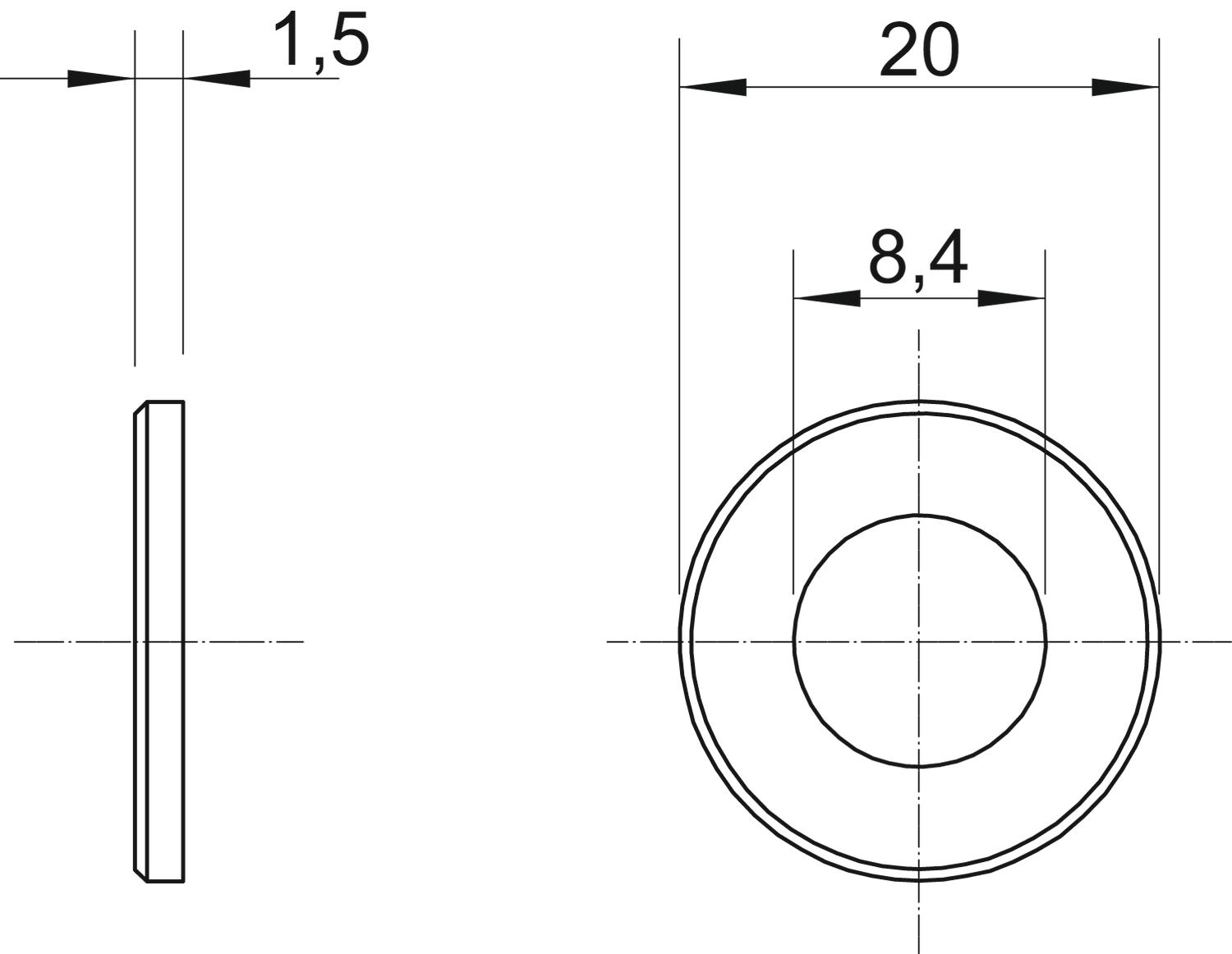

Dimension	M8,Ø20mm
Dimension d	8,4 mm
Dimension d max.	20 mm
Dimension d min.	20 mm
Dimension h	1,5 mm

All types

All types

Types	Dimension d min.	Dimension d	Dimension h	Thread	Item no.
WS M8 D20 A2	20 mm	8.4 mm	1.5 mm	M8	3403125
WS M8 D25 A2	25 mm	8.4 mm	1.5 mm	M8	3403135
WS M8 D40 A2	40 mm	8.5 mm	1.5 mm	M8	3403145
WS M10 D30 A2	30 mm	10.5 mm	1.5 mm	M10	3403155
WS M10 D40 A2	40 mm	10.5 mm	1.5 mm	M10	3403175
