Junction box, T series, with Promo Box plug-in seals
Item no. 2006964 | EAN 4012196493869
- Product description
-

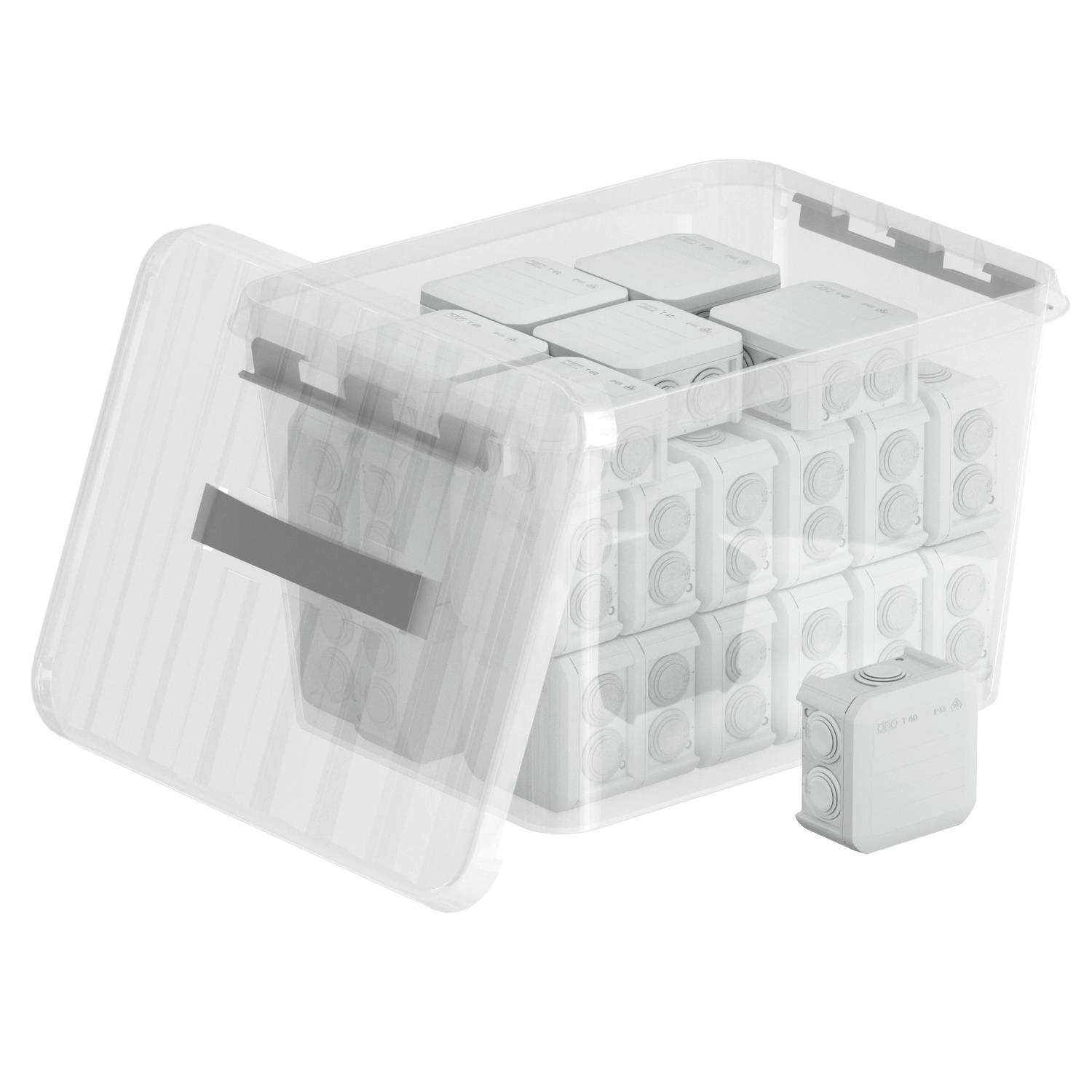

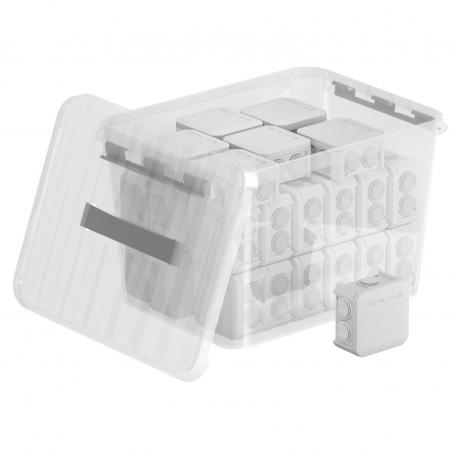

Product descriptionThe tried-and-trusted junction boxes of the T series are packed in a practical and recloseable 22-litre multifunction box.
The T series is made of a thermoplastic polypropylene plastic with plug-in seals made of ethylene vinyl acetate (EVA). The entire range is halogen-free and UV-resistant.
The plug-in seals can be removed and replaced with pipe insertions. Alternatively, instead of seals, cable glands can be inserted through the openings and be countered internally with a locknut.
-
- Technical data
-
Technical data
CO2 Footprint (GWP) Cradle-to-Gate 8,6798 kg CO₂e / 35 Piece Colour Transparent Cover Not transparent Cover fastening Screwed Dimension 22 Liter Entries ax Mxx

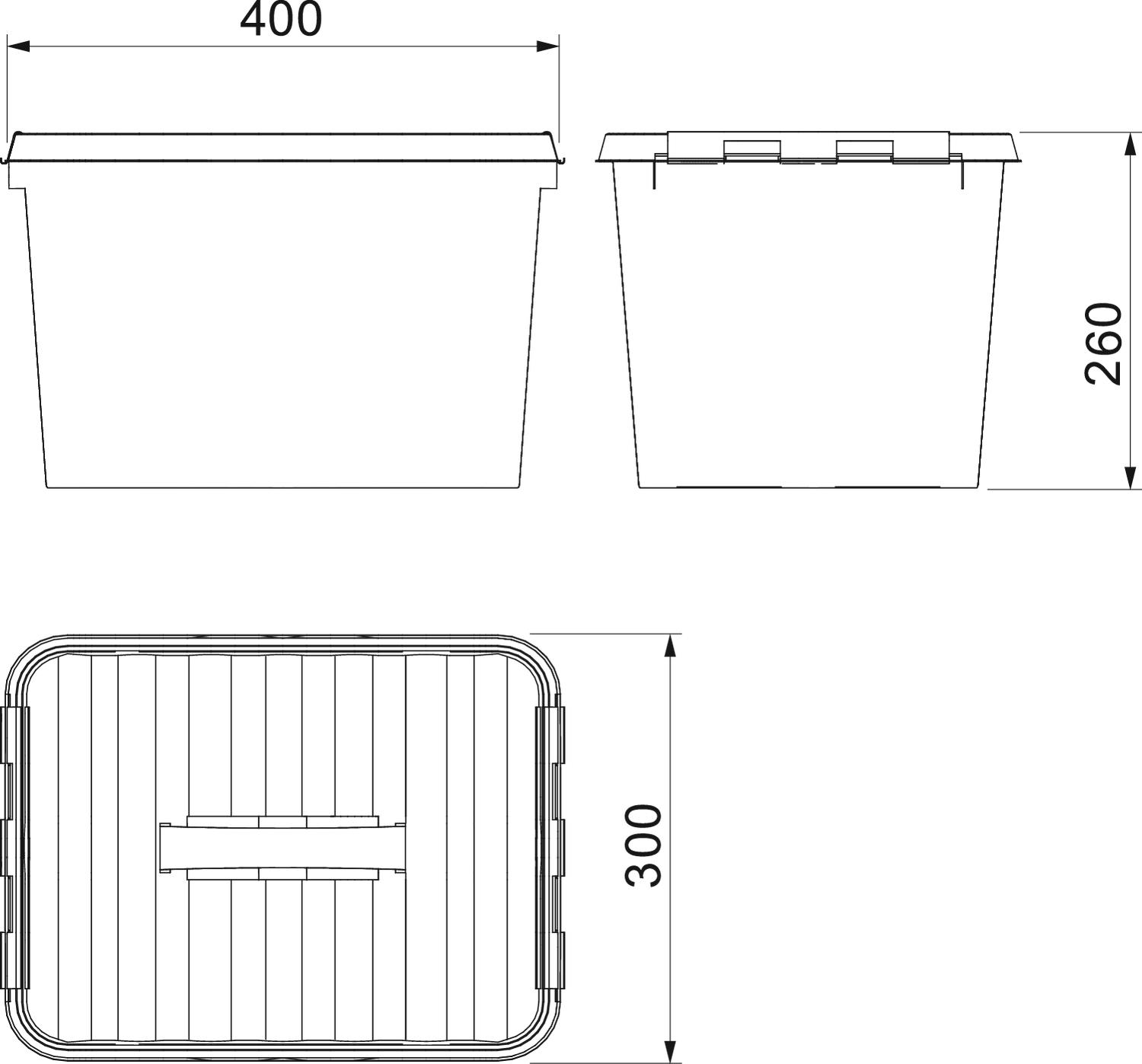

Entry from rear yes Expandable yes Explosion-tested version no Fibre-glass reinforced yes Flame-resistant acc. to VDE 0471/DIN 695 Part 2-1, test temperature 650°C For Ex zone Without For Ex zone dust Without For Ex zone gas Without Halogen-free yes Height 260 mm Length 400 mm Maintain electrical functions Without Material Plastic Measured insulation voltage Vi 500 V Mounting type Wall/ceiling mounting Nominal voltage 500 V Permitted temperature range, max. 60 °C Permitted temperature range, min. -5 °C Protection rating IP66 Sealable yes Transparent lid no Type of entry Cable Type of entry Plug-in seal Type of housing penetration Cuttable stepped membrane Weatherproof no Width 300 mm with lid yes With screening no - All types
- Downloads
-
Data sheet TB PB 40 / 2006964 , 0.26MB , pdfBrochure FireBox , 2.61MB , pdfEU declaration of conformity TB PB 40 / 2006964 , 0.10MB , pdfREACH Declaration of conformity TB PB 40 / 2006964 , 0.12MB , pdfRoHS Declaration of conformity TB PB 40 / 2006964 , 0.13MB , pdf
