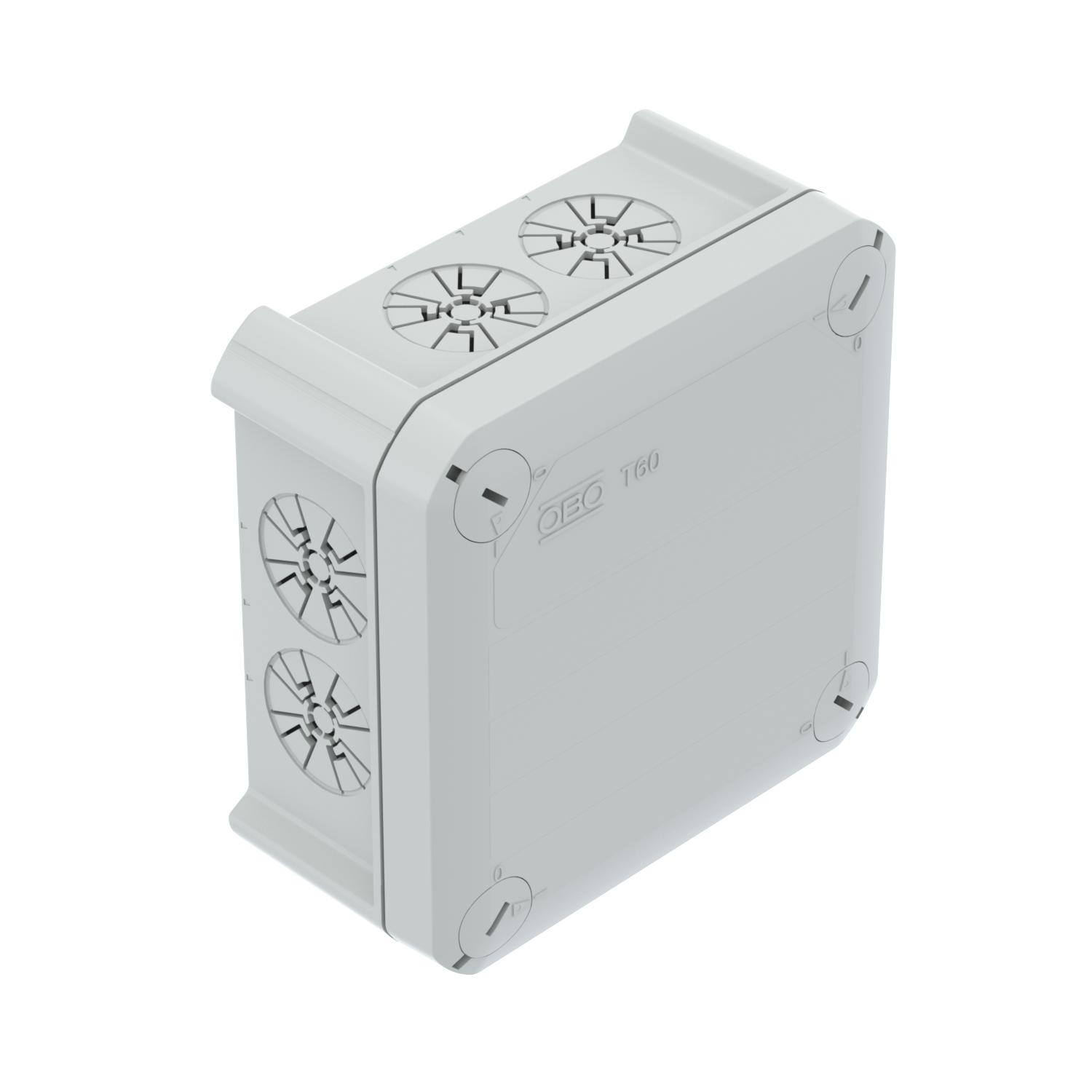

Junction box, T 60, with strain relief entries IP 31
Item no. 2007803 | EAN 4012195615774
- Product description
-
Product descriptionJunction box with strain relief entries for the connection of cables indoors and in protected outdoor areas. Square design with knock-out entries to the sides and knock-out entries in the bottom. Suitable for wall and ceiling mounting and on mounting panels. With the option of fastening inside and to mount via the corner domes. Cover with quick lock, sealable. Made from halogen-free and UV-resistant materials.
Junction box according to DIN EN 60670. Flame-resistant to DIN EN 60695/2/11, test temperature 650 °C. Impact resistance IK07 according to DIN EN 50102.
-
- Technical data
-

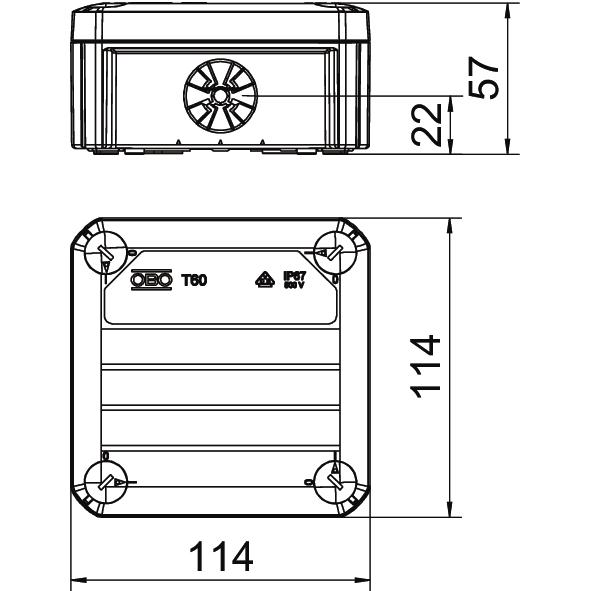

Dimensions
Clear internal dimensions 100x100x48 mm CO2 Footprint (GWP) Cradle-to-Gate 0,4739 kg CO2e / 1 Piece Colour Light grey; RAL 7035 Cover Not transparent Cover fastening Screwed Dimension 114x114x57 Entries 7
Entry from rear yes Equipment Without Expandable yes Explosion-tested version no Flame-resistant acc. to VDE 0471/DIN 695 Part 2-1, test temperature 650°C For Ex zone Without For Ex zone dust Without For Ex zone gas Without Halogen-free yes Height 67 mm Length 114 mm Maintain electrical functions Without Material Polypropylene Measured insulation voltage Vi 500 V Mounting type Wall/ceiling mounting No. of entries 7 Nominal cross-section, min. 6 mm² Nominal voltage 500 V Permitted temperature range, max. 60 °C Permitted temperature range, min. -5 °C Protection rating IP30 Protection rating IK code IK07. Sealable yes Shape Square Transparent lid no Type of entry Cable Type of entry Strain relief entries for direct penetrations for cable diameters of 7−21 mm Type of housing penetration Pre-marking Weatherproof no Width 114 mm with lid yes With screening no - All types
