Junction box, B 9/K M empty, with thread
Item no. 2001942 | EAN 4012195536116
- Product description
-
Product descriptionProtection rating IP67, empty box for use with individual terminals, four plastic cover screws, thus absolute corrosion-protection, two fastening bases for screws of up to 5 mm Ø, 7 break-out entries with thread M20 x 1.5. 3 polyamide cable glands for cable diameters of 9–12 mm, type 106 M.
Clear internal dimensions: 84x84x34 mm.
-
- Technical data
-

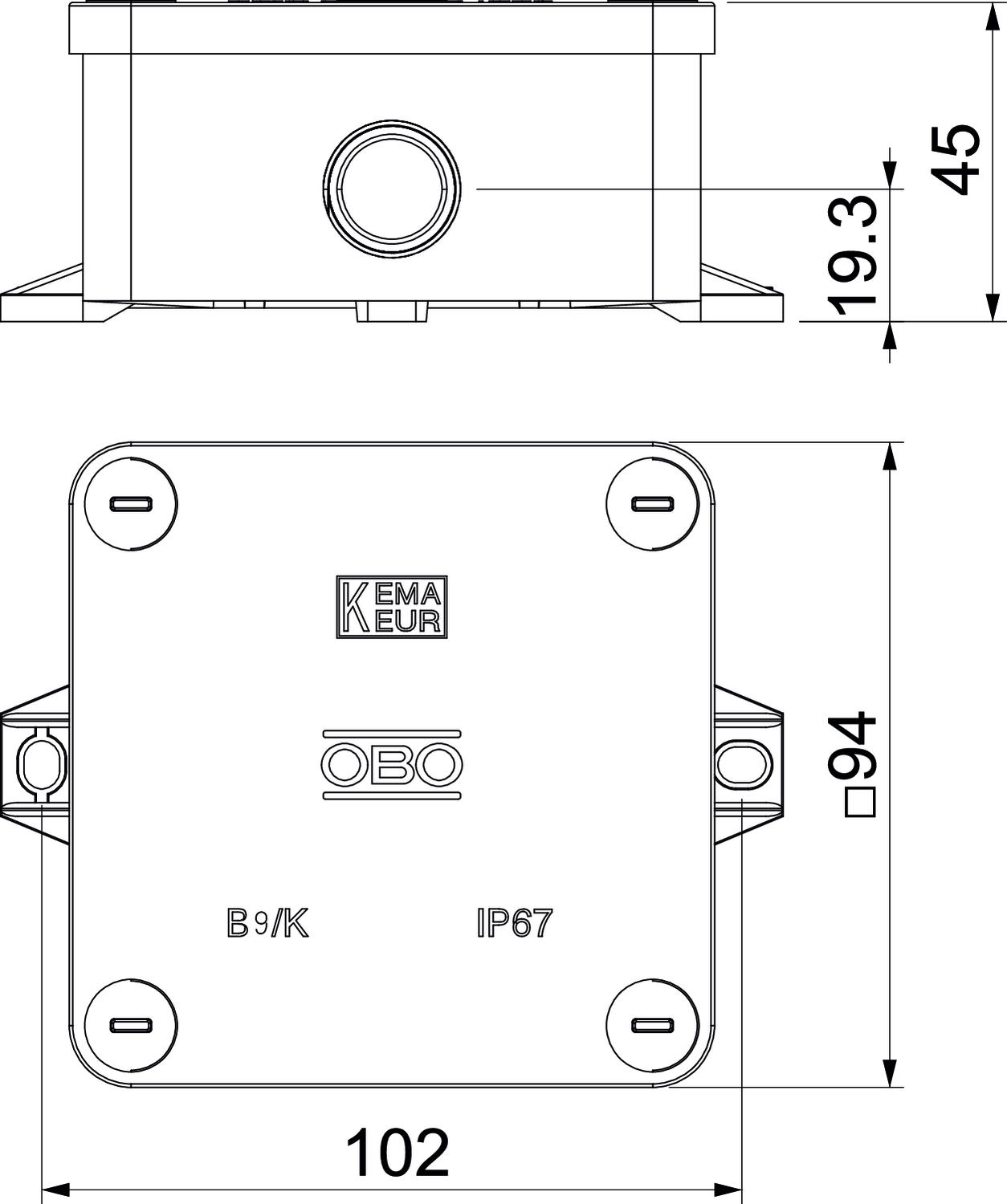

Dimensions
Clear internal dimensions 84x84x34 mm CO2 Footprint (GWP) Cradle-to-Gate 0,5548 kg CO₂e / 1 Piece Colour Light grey; RAL 7035 Cover Not transparent Cover fastening Screwed Dimension 94x94x45 Entries 7 break-out entries with thread M20 x 1.5.
Entry from rear no Expandable no Explosion-tested version no Flame-resistant Acc. to VDE 0471/DIN 695 Part 2-1, test temperature 750°C For Ex zone Without For Ex zone dust Without For Ex zone gas Without for pipe diameter 20 mm Halogen-free yes Height 45 mm Impact-resistant no Length 94 mm Maintain electrical functions Without Material Duroplast, Aminoplast Measured insulation voltage Vi 400 V No. of entries 7 Nominal cross-section, max. 70 mm² Nominal voltage 400 V Protection rating IP67 Sealable yes Shape Square Transparent lid no Type of entry Cable Type of entry Gland Type of housing penetration Thread and pre-marking Weatherproof no Width 94 mm with lid yes With screening no - All types
