Joint cover, trunking height 70 mm
Item no. 6279760 | EAN 4012195667667
- Product description
-

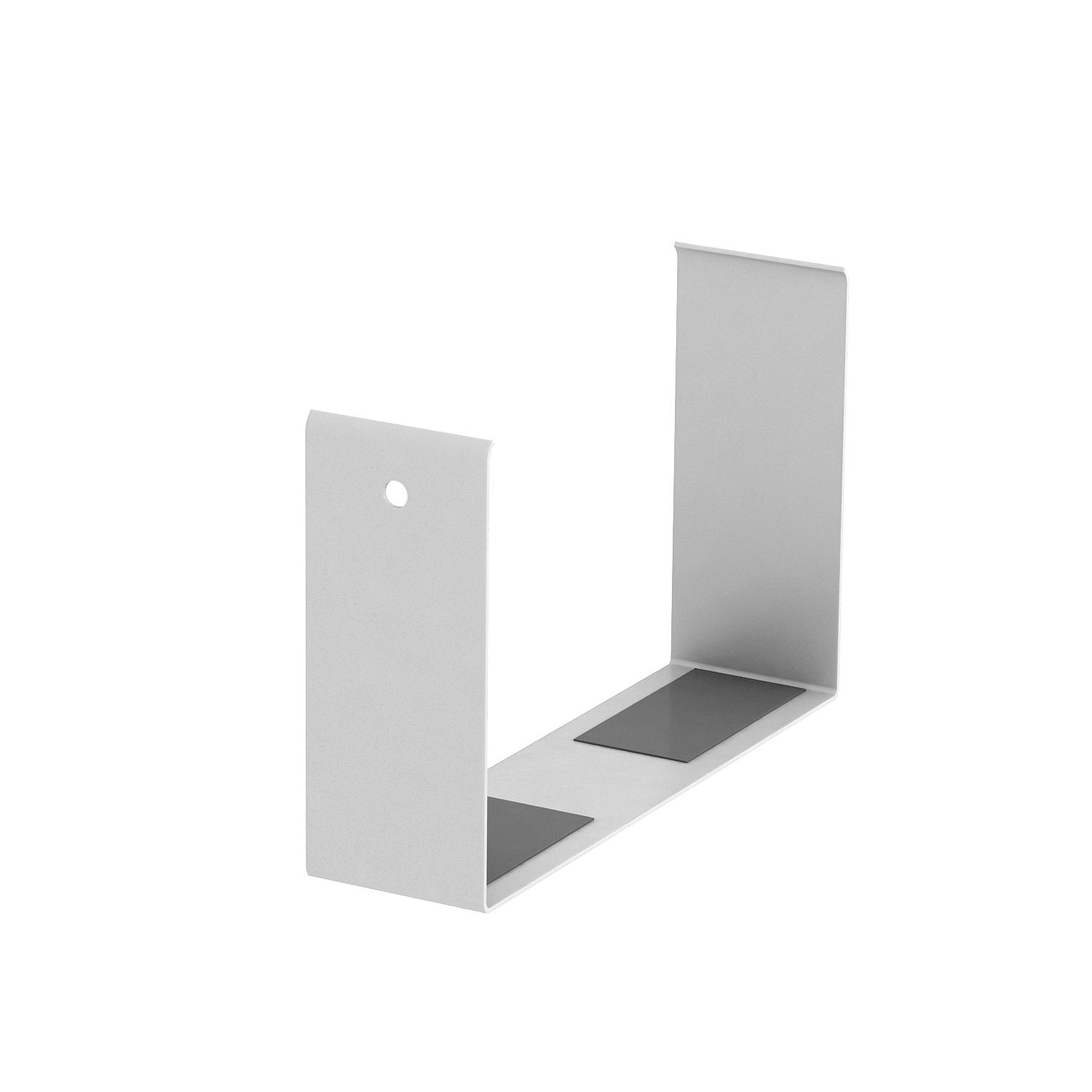

Product descriptionJoint cover to hide sawn trunking joint edges.
-
- Technical data
-
Technical data

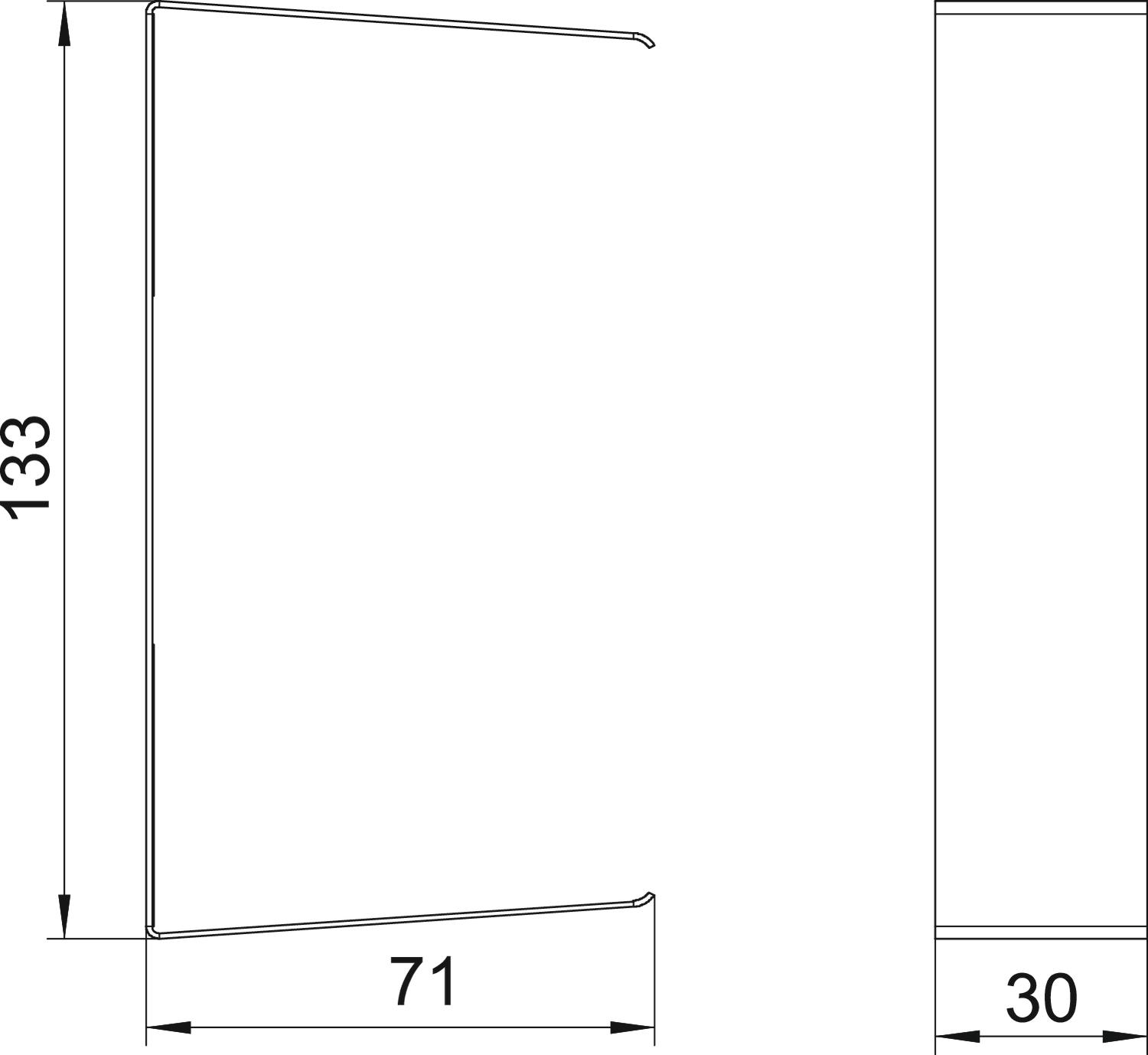

Colour Pure white; RAL 9010 Cover width 76,5 mm Dimension 70x110x30mm Duct height, min. 70 mm Fastening type Self-adhesive for duct dimension 70x110 for duct width 110 mm for trunking height 70 mm Halogen-free yes Height 71 mm Length 30 mm Material Steel Permitted temperature range, max. 60 °C Permitted temperature range, min. -25 °C Protection rating IP30 Protection rating IK code IK10 Shape Universal Trunking depth 70 mm Version for Trunking cut cover Width 113 mm - All types
- Downloads
-
Data sheet G-SVS70110RW / 6279760 , 0.19MB , pdfEU declaration of conformity G-SVS70110RW / 6279760 , 0.10MB , pdfUK Declaration of Conformity G-SVS70110RW / 6279760 , 0.09MB , pdfNo invitation to tender text is available for this product.
