Joint cover Signa Base SSA 70130 Light grey; RAL 7035

morepic-1

morepic-2

Joint cover Signa Base SSA 70130

Item no. 6132792 | EAN 4012196722686

Item no. / Types

Colour

Product description

Product description

Joint cover to connect the Signa Base device installation trunking.

Technical data

Technical data

Colour	Light grey; RAL 7035
Cover width	80 mm
Fastening type	Self-adhesive
Halogen-free	yes
Height	73 mm
Length	35 mm
Material	Polycarbonate/Acrylnitrile-butadiene-styrene

Permitted temperature range, max.	60 °C
Permitted temperature range, min.	-5 °C
Protection rating	IP40
Protection rating IK code	IK07.
Shape	Symmetrical
Version for	Trunking cut cover
Width	137 mm

All types

All types

Types	Colour	Item no.
BRK SSA70130 cws	Cream; RAL 9001	6132790
BRK SSA70130 rws	Pure white; RAL 9010	6132791
BRK SSA70130 lgr	Light grey; RAL 7035	6132792

Downloads

Data sheet BRK SSA70130 lgr / 6132792 , 0.15MB , pdf

Brochure Signa Base device installation trunking , 2.23MB , pdf

EU declaration of conformity BRK SSA70130 lgr / 6132792 , 0.10MB , pdf

Label approval VDE symbol approval, SIGNA BASE device installation trunking , 0.25MB , pdf

Download

Mounting instructions Signa Base device installation trunking , 15.61MB , pdf

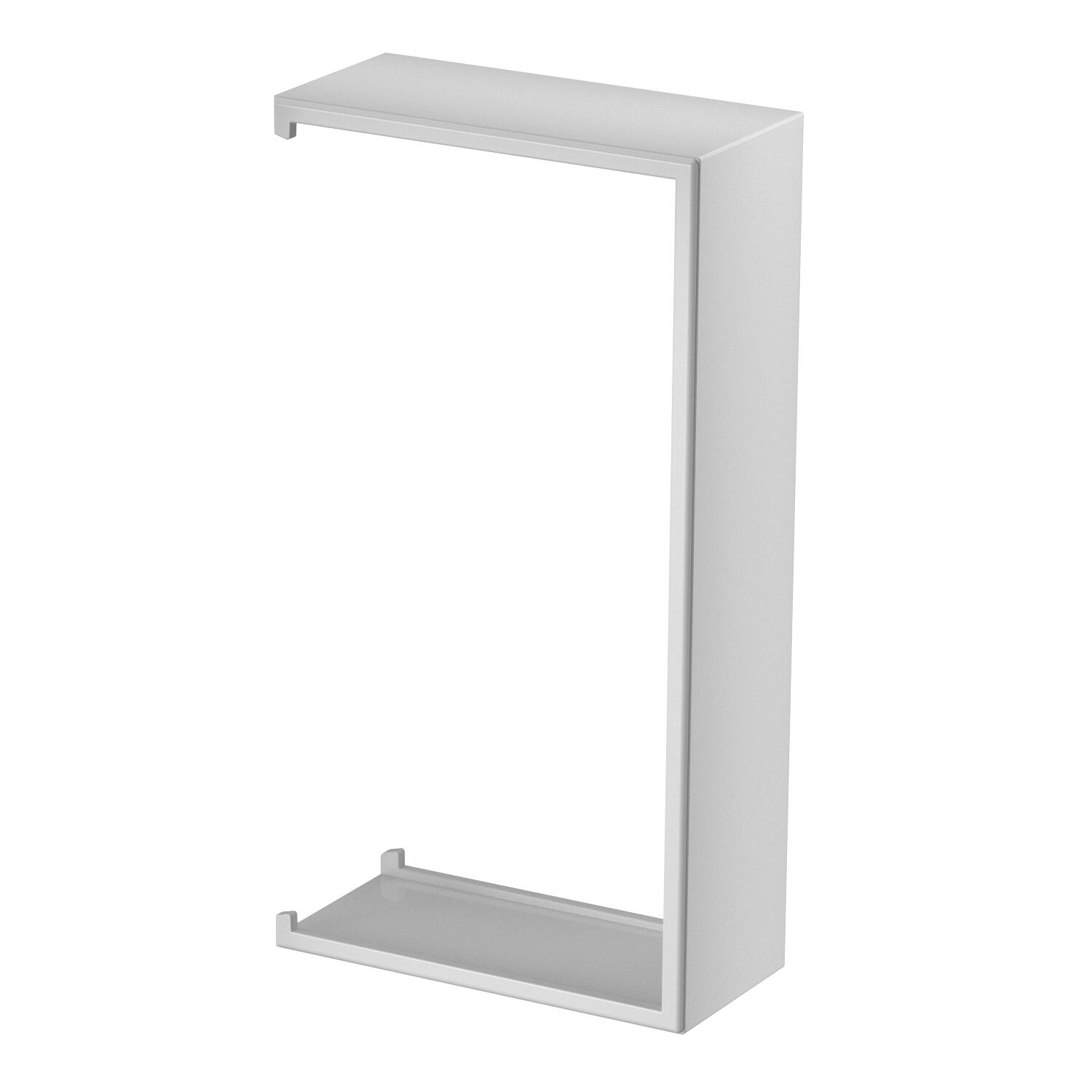

Product graphic BRK SSA70130 lgr / 6132792, 36.59 kB, jpg

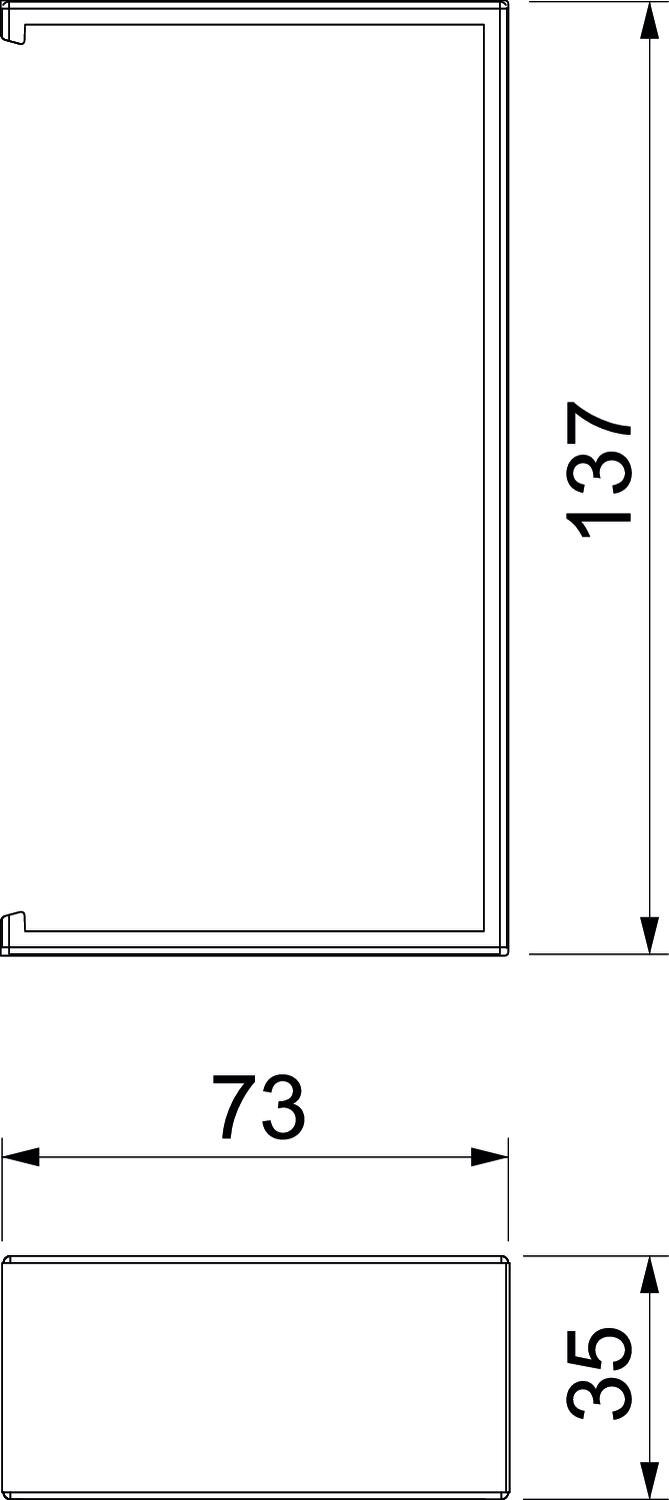

Scale drawing BRK SSA70130 lgr / 6132792, 33.68 kB, jpg
