Joint cover, for trunking, type WDK 40090 Pure white; RAL 9010
morepic-1 morepic-2

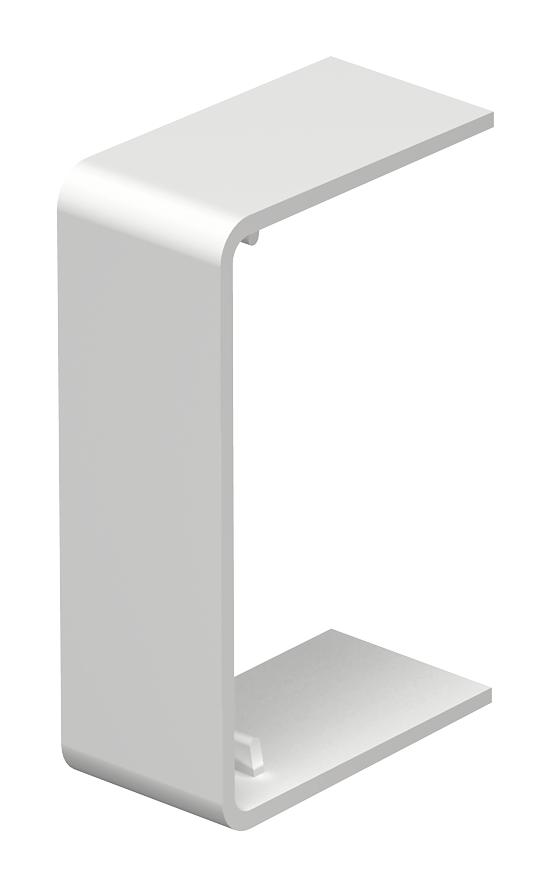

Joint cover, for trunking, type WDK 40090

Item no. 6193580 | EAN 4012195461814

Product description
Product description
Joint cover for hiding cut edges and for smooth connection of trunking segments.
  • Verband der Elektrotechnik, Elektronik, Informationstechnik e.V., Germany
  • Communautés Européennes, EC declaration of conformity according to EC directives
  • UKCA declaration of conformity
Technical data

Technical data

Colour Pure white; RAL 9010
Cover width 39 mm
Dimension 42x93x18mm

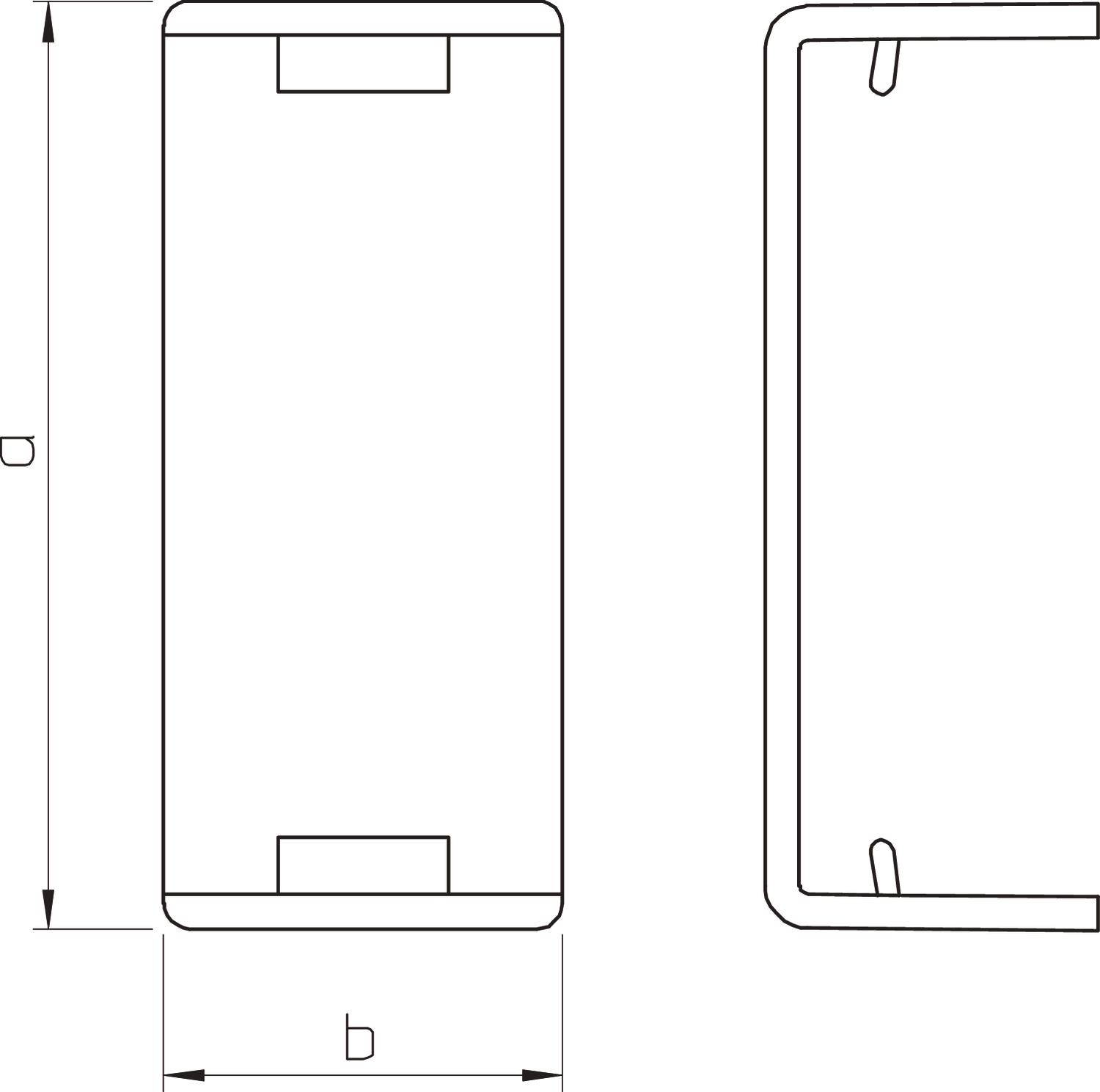

Dimension a 90 mm
Dimension b 39 mm
Fastening type Lockable
Halogen-free no
Height 39 mm
Length 18 mm
Material Polyvinylchloride
Permitted temperature range, max. 60 °C
Permitted temperature range, min. -5 °C
Protection rating IP30
Protection rating IK code IK04
Shape Symmetrical
Version for Trunking cut cover
Width 90 mm
All types

All types

Types Colour Item no.
WDK HS40090RW Pure white; RAL 9010 6193580
WDK HS40090CW Cream; RAL 9001 6193582
Downloads

Download
Download

Download

EU declaration of conformity WDK HS40090RW / 6193580 , 0.11MB , pdf
Download
UK Declaration of Conformity WDK HS40090RW / 6193580 , 0.09MB , pdf
Download
REACH Declaration of conformity WDK HS40090RW / 6193580 , 0.12MB , pdf
Download
RoHS Declaration of conformity WDK HS40090RW / 6193580 , 0.13MB , pdf
Download

Download

No invitation to tender text is available for this product.
