Joint connector A2
Item no. 6066054 | EAN 4012196064816
- Product description
-

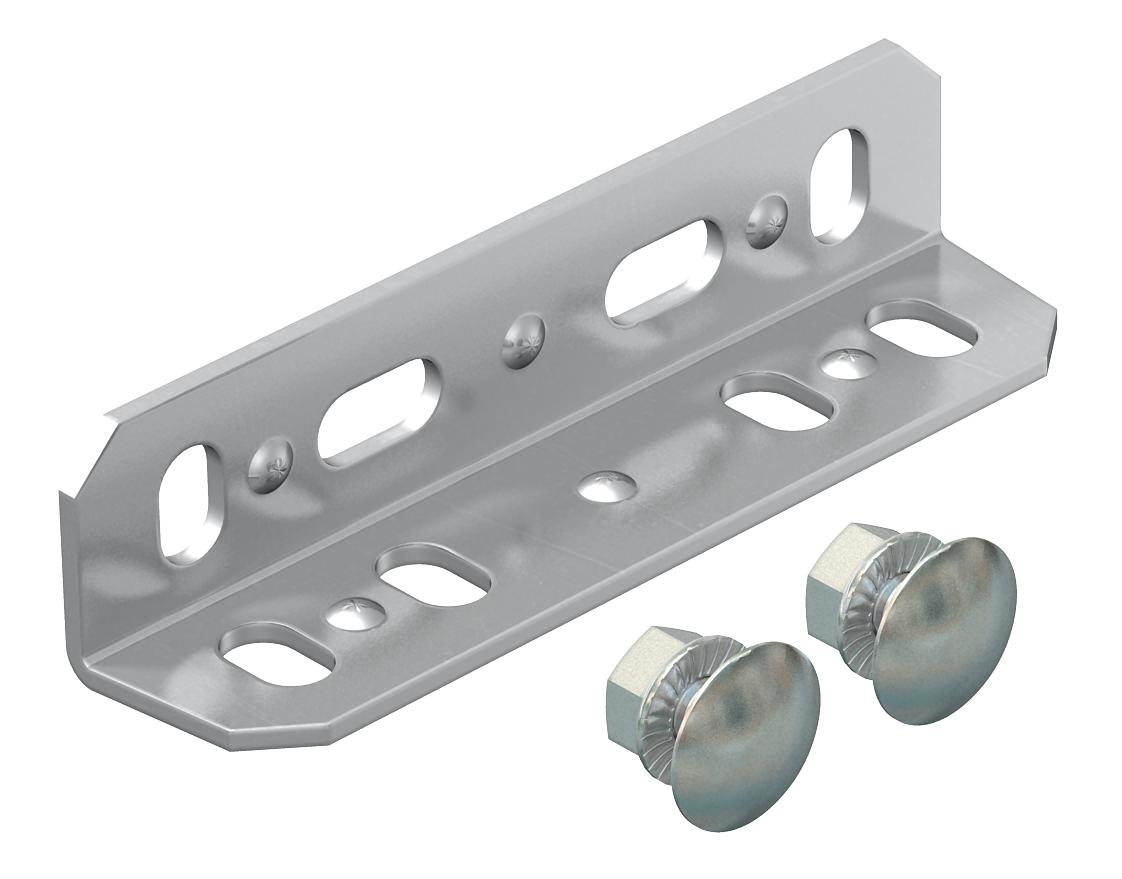

Product descriptionJoint connector for horizontal connection of BKK basic profiles. Including fastening material.
-
- Technical data
-
Technical data

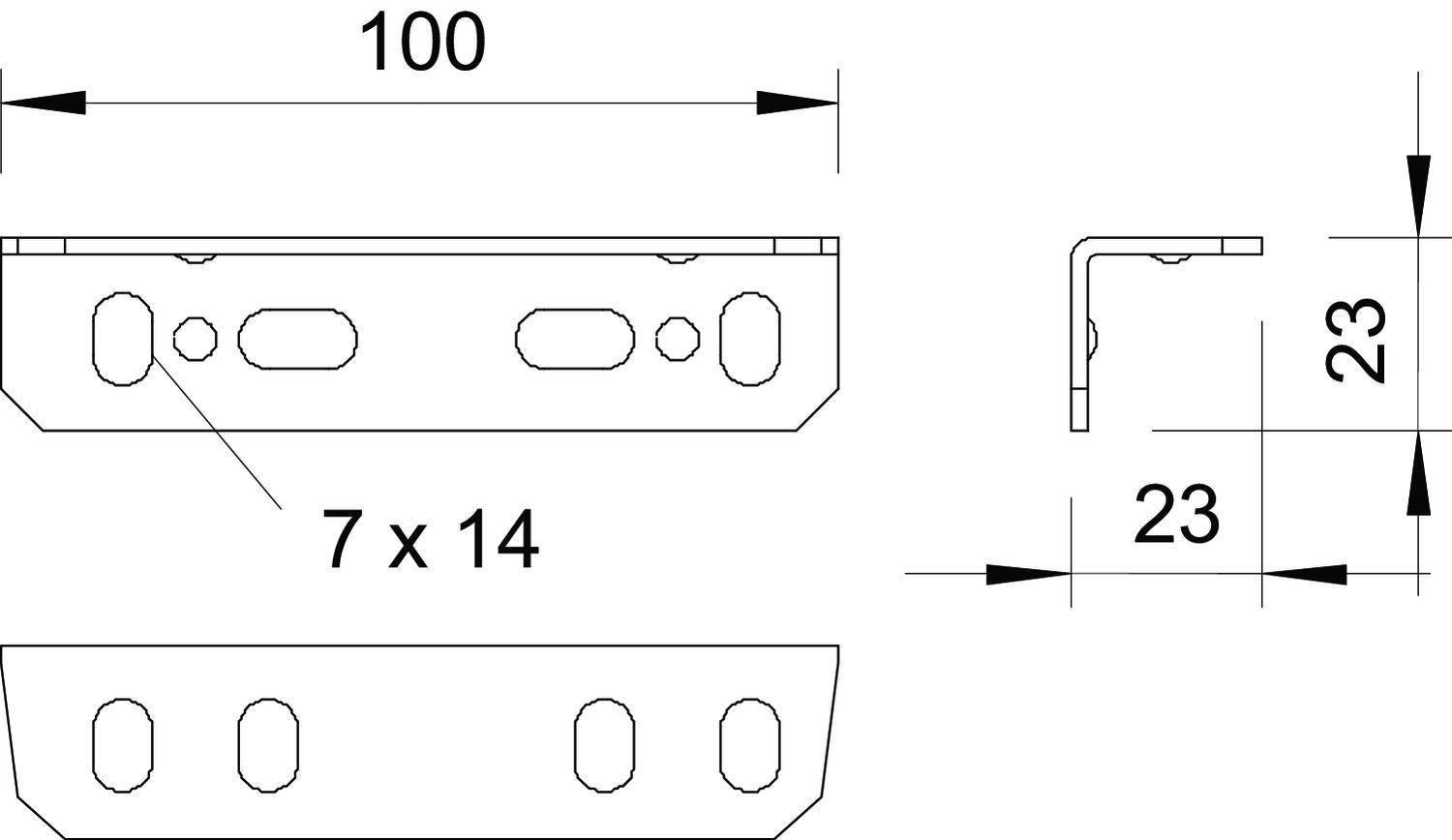

Adjustable connector, horizontal no Articulated connector, vertical no CO2 Footprint (GWP) Cradle-to-Gate 0,651 kg CO2e / 1 Piece Colour stainless steel Connection type Screw connector Dimension 100x23 Dimension 23 x 23 x 100 Material Stainless steel Plate thickness 2 mm Rustproof steel, pickled no Suitable for cable ladder no Suitable for cable tray no Suitable for mesh cable tray no Surface Bright, treated Version for Joint plate - All types
- Downloads
-
Data sheet SSV A2 / 6066054 , 0.16MB , pdfEU declaration of conformity SSV A2 / 6066054 , 0.10MB , pdfREACH Declaration of conformity SSV A2 / 6066054 , 0.12MB , pdfRoHS Declaration of conformity SSV A2 / 6066054 , 0.13MB , pdfMounting instructions General information on the mounting , 2.65MB , pdf
