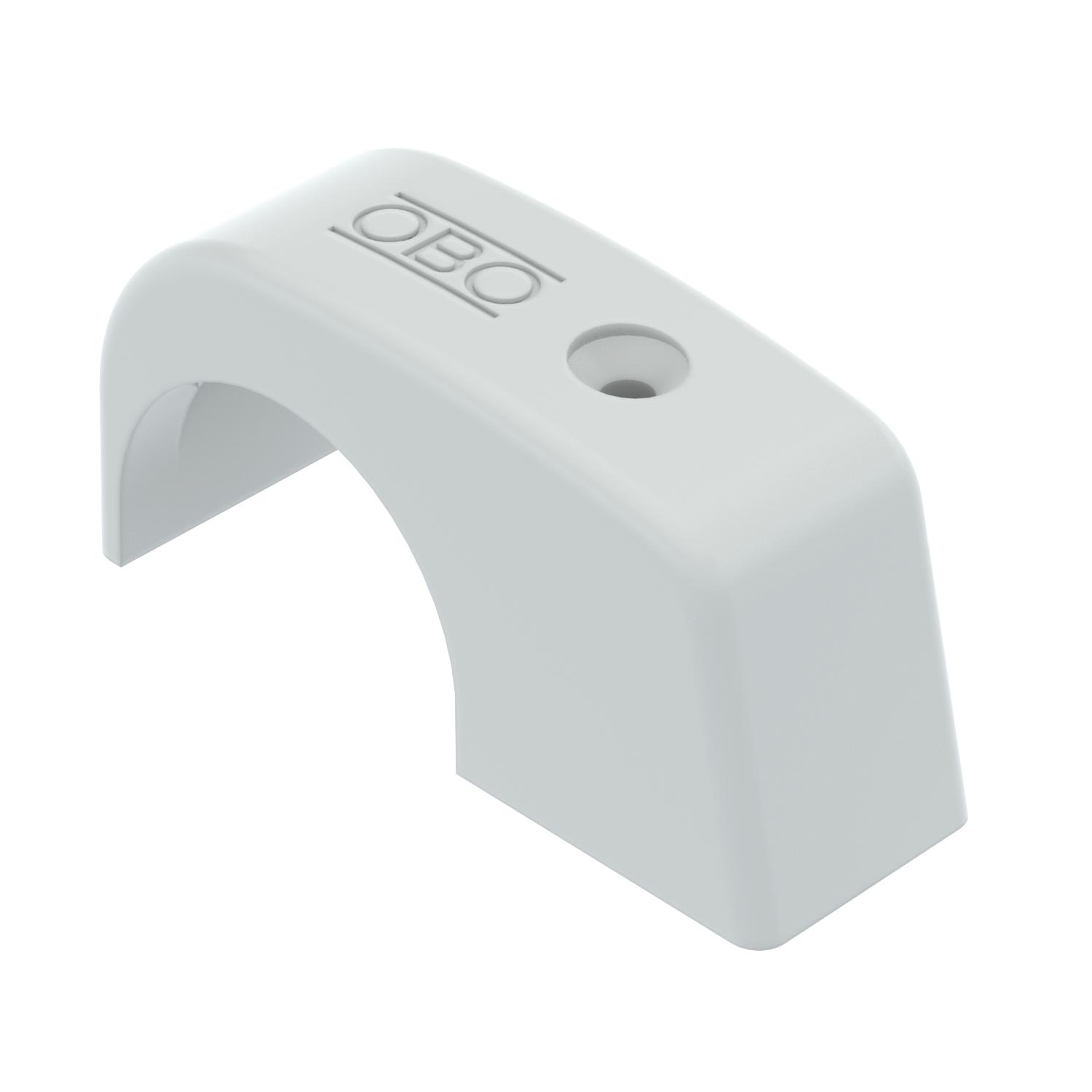

ISO nail clip 4031 14-17

Item no. 2215179 | EAN 4012195213376

Item no. / Types	2215179 / 4031 14-17

for cable diameter, min.	14 mm

for cable diameter, max.	17 mm

For nail diameter	2,0

Product description

Product description

OBO makes various fastening systems available for fastening cables securely on different substrates. Starting with the adhesive clip or ISO nail clips for fastening, e.g. on wooden beams, up to the Nail-Fix for fixing in masonry slits, OBO can offer a wide range of clips for nail fastening, suitable for steel nails 2 mm.

Technical data

Technical data

CO2 Footprint (GWP) Cradle-to-Gate	0,0068 kg CO₂e / 1 Piece
Colour	Light grey; RAL 7035

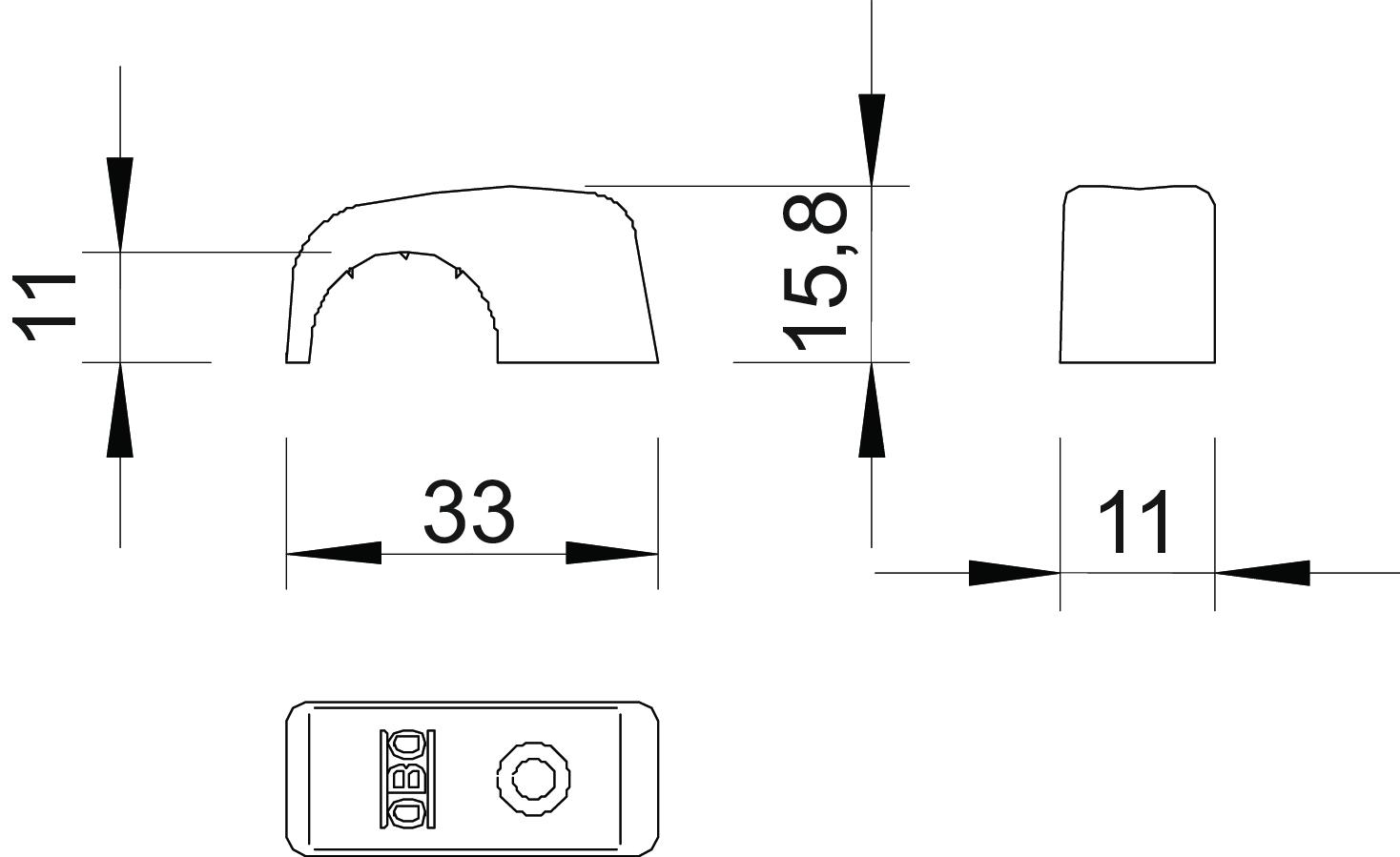

Dimension	14-17mm
Dimension B	11 mm
Dimension H	15,8 mm
Dimension H1	11 mm
Dimension L	33 mm
Double clip	no
for cable diameter, max.	17 mm

for cable diameter, min.	14 mm
For nail diameter	2,0
Halogen-free	yes
Hardened	no
Impact-resistant	no
Material	Polypropylene
Pipe locking	no
Shape	Round (for round conductor)
With nail	no
