ISO nail clip 2020, white 40 | 20 | 2,0x40 | Pure white; RAL 9010
morepic-1 morepic-2 morepic-3

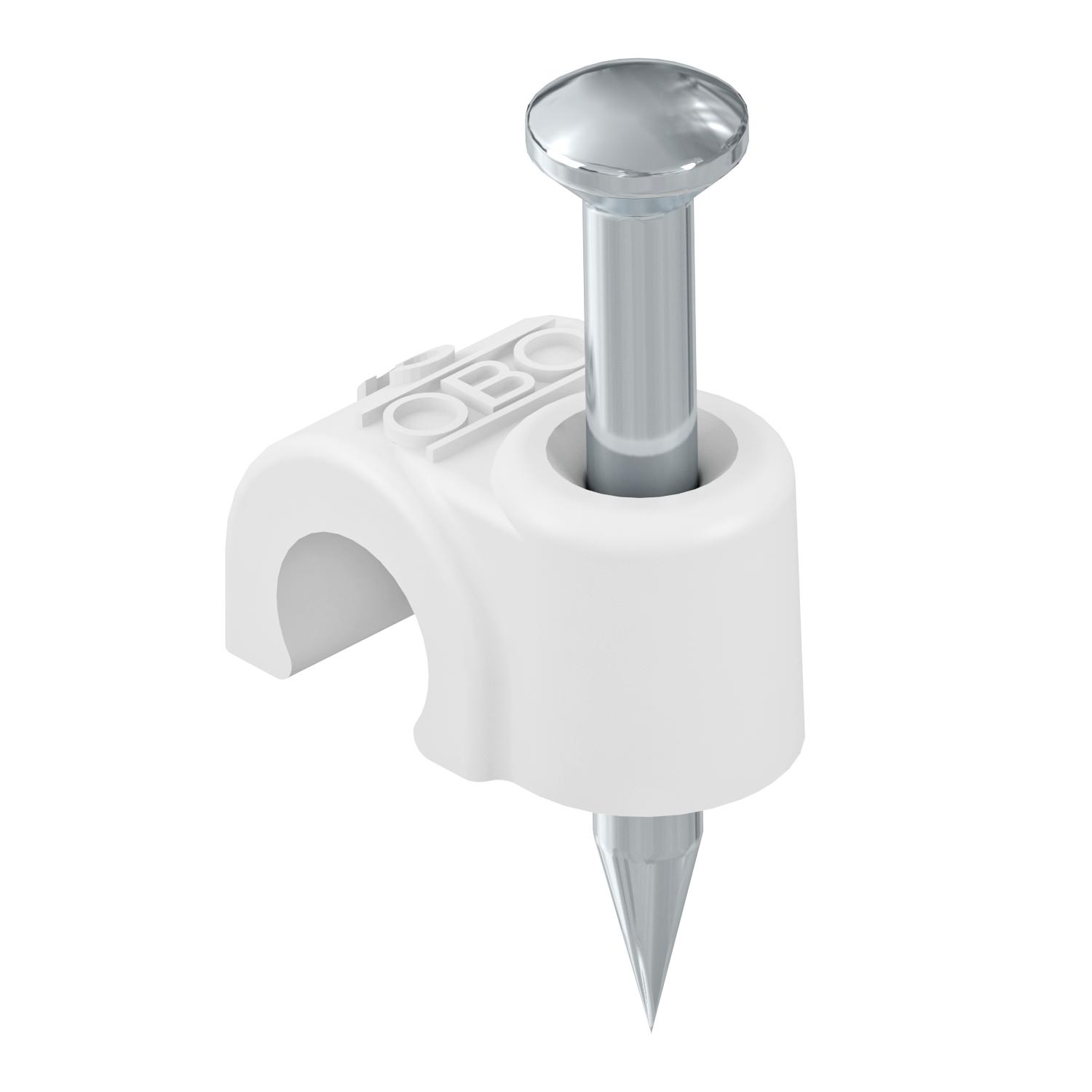

ISO nail clip 2020, white

Item no. 2226405 | EAN 4012195216919

2226405 / 2020 40 RW
40 mm
20 mm
2,0x40
Pure white; RAL 9010
Product description
Product description
ISO nail clip, short design
  • Halogen-free; without chlorine, fluorine and bromine
  • Communautés Européennes, EC declaration of conformity according to EC directives
Technical data

Technical data

CO2 Footprint (GWP) Cradle-to-Gate 0,0172 kg CO₂e / 1 Piece
Colour Pure white; RAL 9010
Dimension 20mm, L40

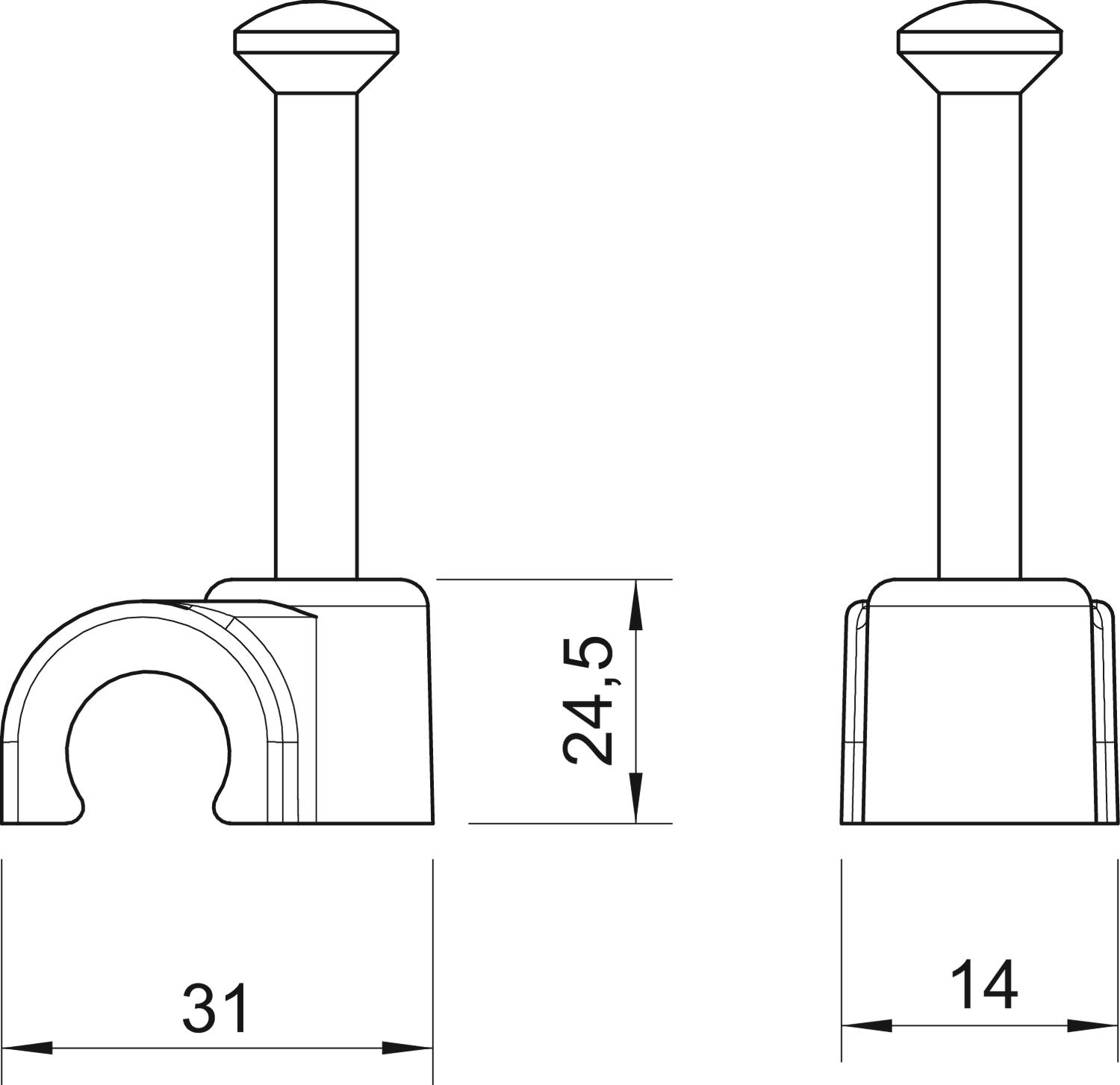

Dimension B 14 mm
Dimension H 24,5 mm
Dimension L 31 mm
Double clip no
for cable diameter 20 mm
For nail diameter 2,0x40
Halogen-free yes
Hardened yes
Impact-resistant no
Material Polypropylene
Nail length 40 mm
Pipe locking no
Shape Round (for round conductor)
With nail yes
All types

All types

Types Nail length for cable diameter For nail diameter Colour Item no.
2020 40 RW 40 mm 20 mm 2,0x40 Pure white; RAL 9010 2226405
Downloads

Download

Download

EU declaration of conformity 2020 40 RW / 2226405 , 0.06MB , pdf
Download

2020 40 RW / 2226405
