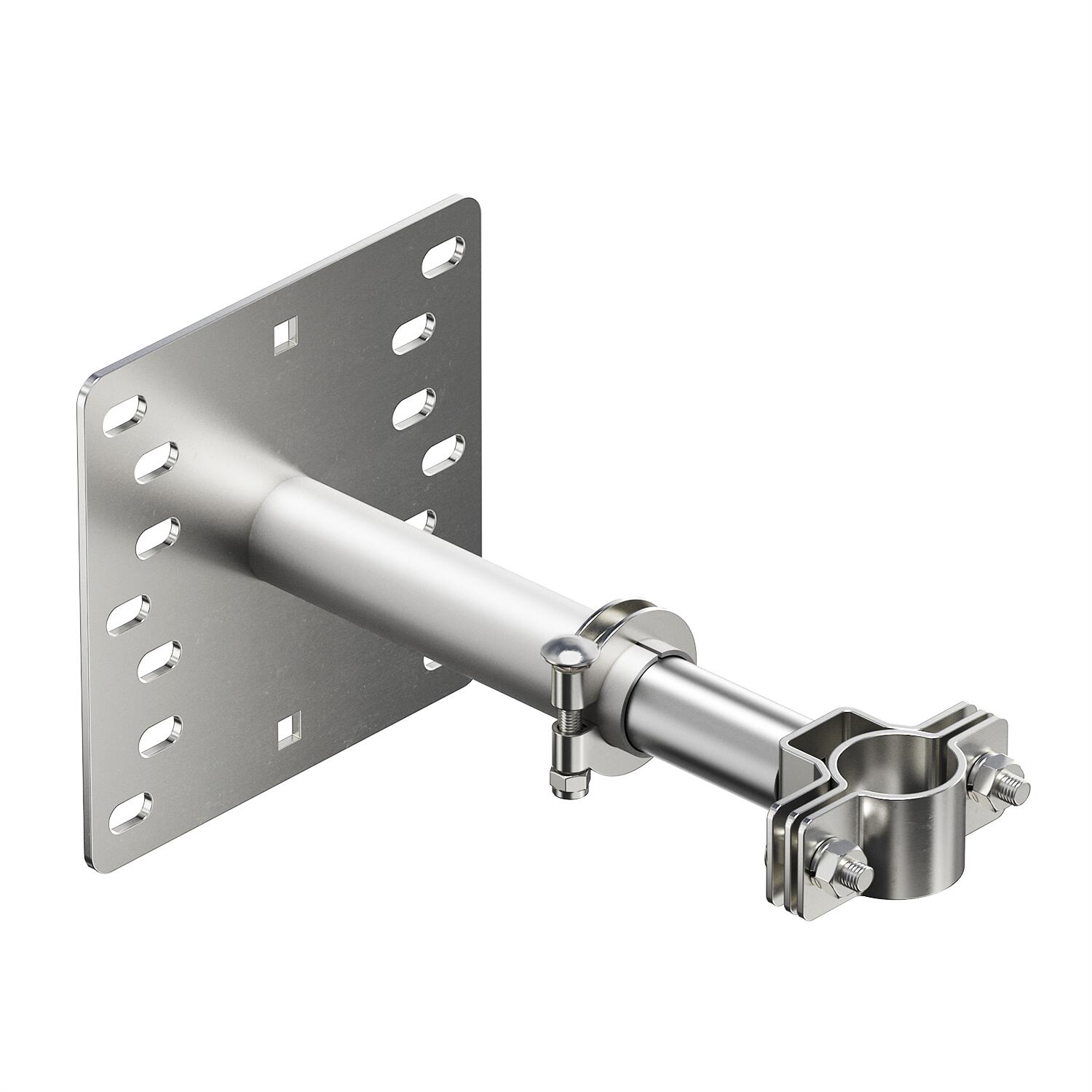

isFang support for wall mounting, 200−300 mm spacing
Item no. 5408954 | EAN 4012195670094
- Product description
-
Product description• To fasten the insulated support pipes on the structure to be protected or on the wall
- Technical data
-
Technical data

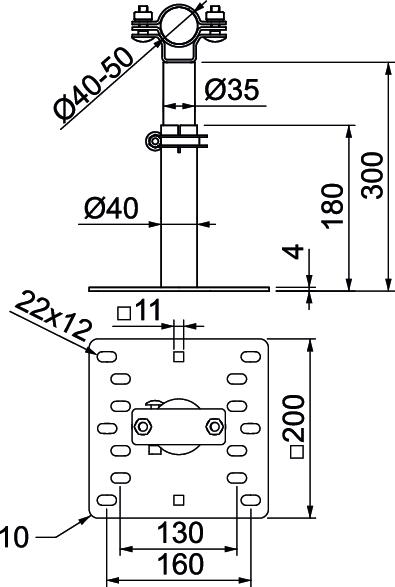

Dimension 200-300mm Dimension L 300 mm Height 200 mm Length 322 mm Material Stainless steel Width 200 mm - All types
- Downloads
-
Data sheet isFang TW200 / 5408954 , 0.14MB , pdfEU declaration of conformity isFang TW200 / 5408954 , 0.06MB , pdfREACH Declaration of conformity isFang TW200 / 5408954 , 0.12MB , pdfRoHS Declaration of conformity isFang TW200 / 5408954 , 0.12MB , pdfMounting instructions Extended mounting instructions, long isCon® , 6.11MB , pdf
