isFang, insulated air-termination rod for inner-routed isCon® conductor Professional Plus 6000 |

isFang, insulated air-termination rod for inner-routed isCon® conductor Professional Plus

Item no. 5408936 | EAN 4012195871620

Item no. / Types

Length

Product description

Product description

• For installation of the OBO isCon® Pro+ conductor in the pipe

• For mounting on the building structure with isFang support

• Suitable for wind loads according to Eurocode 1: DIN EN 1991-1-4

• Inclusive connection element (type isCon IN connect)

• Inclusive potential connection (type isCon In PAE)

• Aluminium standpipe and air-termination tip

• Centre section made of fibre-glass reinforced plastic (GRP)

Technical data

Technical data

CO2 Footprint (GWP) Cradle-to-Gate	80,1525 kg CO2e / 1 Piece
Connection	Round conductor

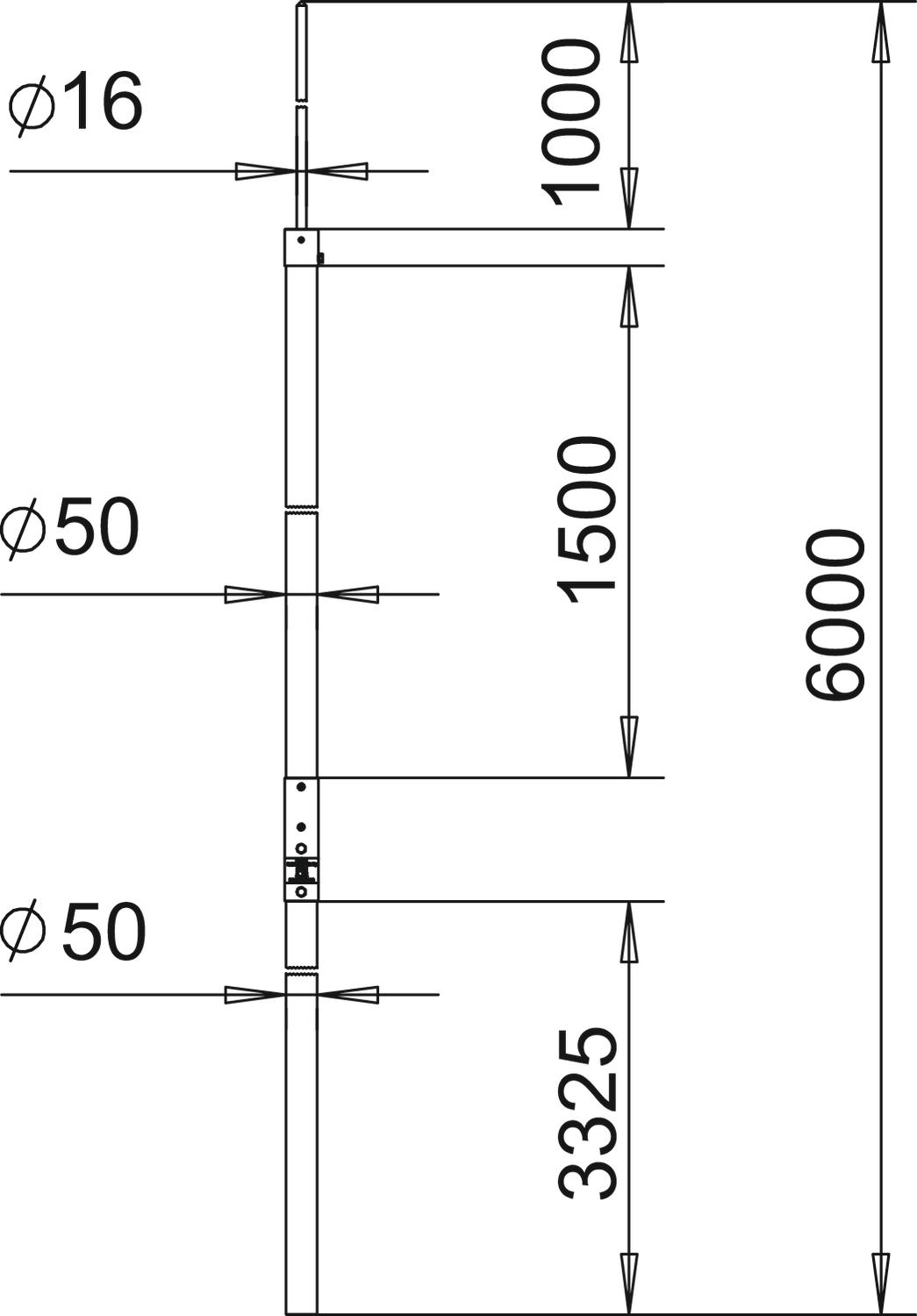

Diameter	50 mm
Dimension	6000mm
Dimension A	3325 mm
Dimension B	1000 mm
Dimension d min.	50 mm

Dimension H	1500 mm
Dimension L	6000 mm
High voltage-resistant, insulated version	yes
Length	6000 mm
Material	Fibre-glass-reinforced plastic
Version for	Air-termination rod
