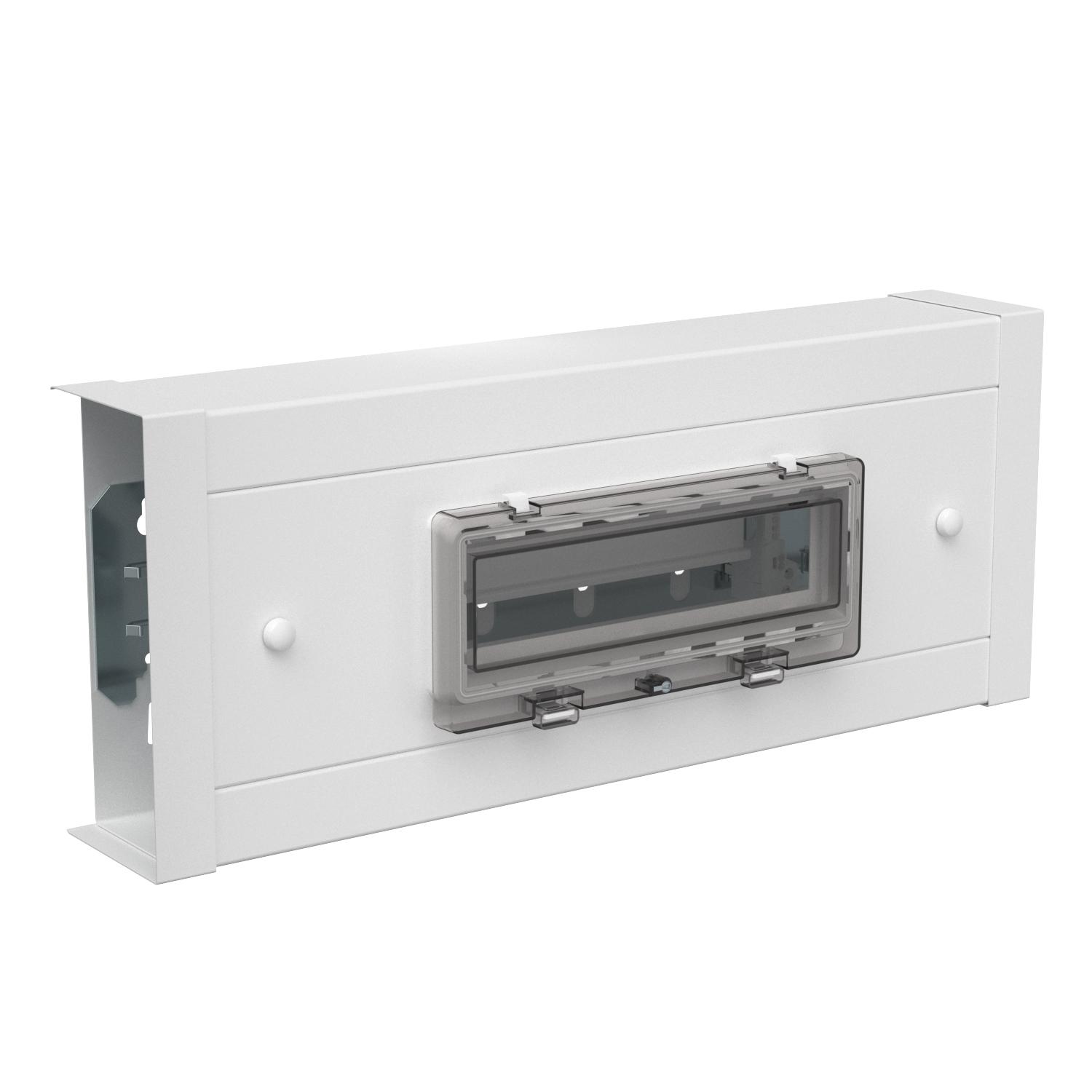

Installation unit for series-mounted devices, 90 x 210 mm 500 | Pure white; RAL 9010

Installation unit for series-mounted devices, 90 x 210 mm

Item no. 6288336 | EAN 4012196691562

Item no. / Types

Length	500 mm

Colour	Pure white; RAL 9010

Product description

Product description

Installation unit made of sheet steel for installation in the trunking section of device installation trunking of the corresponding system size.

Acceptance of series-mounted devices with a total width of 12 PUs on hat rails. Incl. N and PE rails with screwless terminals. The foldable transparent hood can be locked.

Technical data

Technical data

Cable entry	yes
Colour	Pure white; RAL 9010

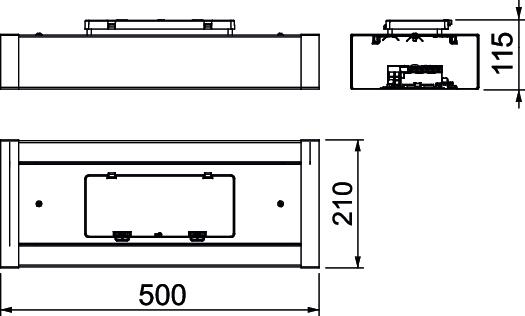

Dimension	115x210x500
DIN rail	yes
Extension option	no
Halogen-free	yes
Height	115 mm
Length	500 mm
Material	Steel

Number of rows	1
Number of units	12
Suitable for duct depth	90
Surface	Powder-coated
Transparent lid	yes
Type of cover	Transparent
Width	210 mm
With mounting plate	no

All types

All types

Types	Length	Colour	Item no.
IKR12RW70170	500 mm	Pure white; RAL 9010	6288328
IKR12RW90170	500 mm	Pure white; RAL 9010	6288330
IKR12RW70210	500 mm	Pure white; RAL 9010	6288334
IKR12RW90210	500 mm	Pure white; RAL 9010	6288336
