HW Compensation ring 10
morepic-1 morepic-2

HW Compensation ring 10

Item no. 2003842 | EAN 4012196714681

Product description
Product description

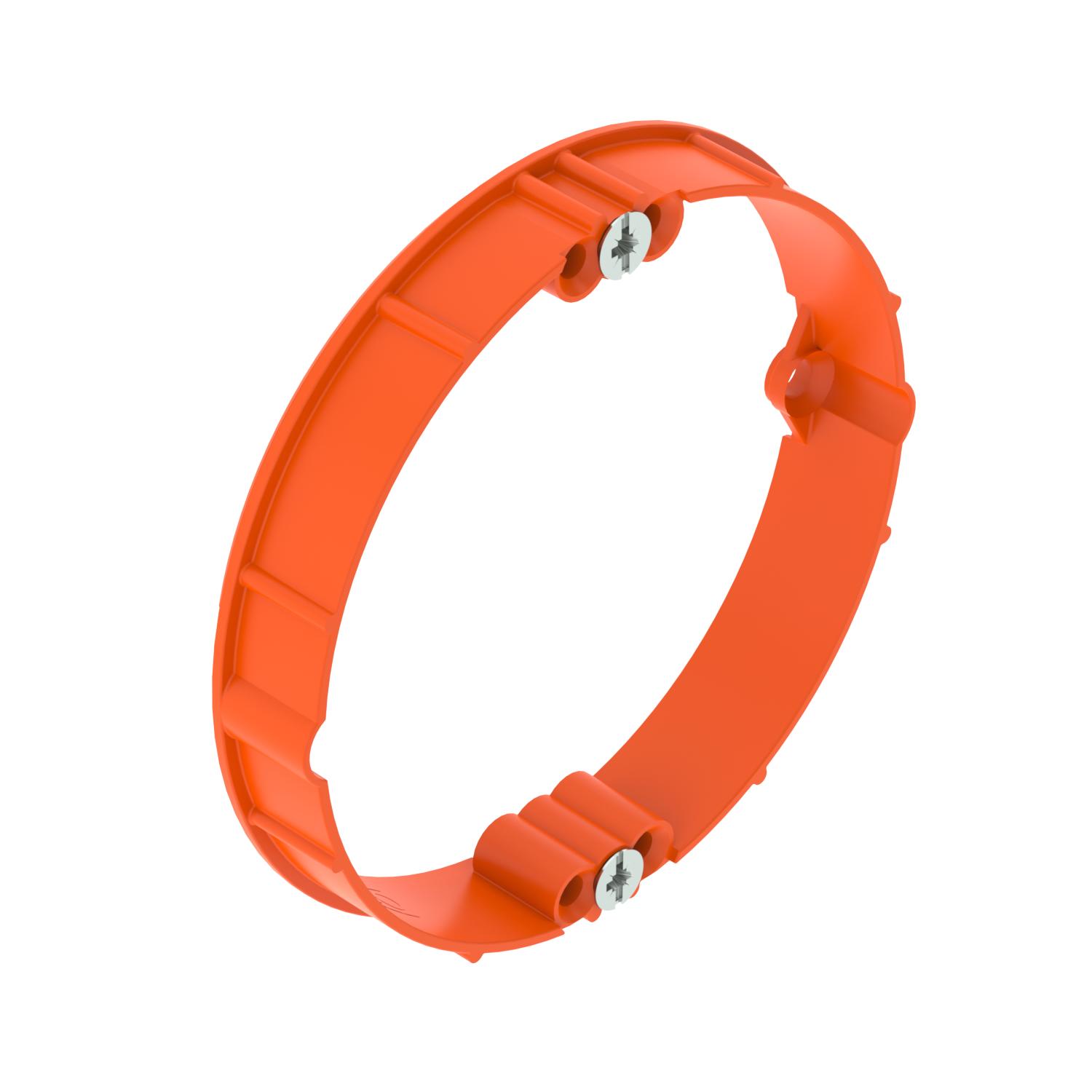

Compensation ring for cavity wall device box Ø 68 mm, to screw on.
  • Halogen-free; without chlorine, fluorine and bromine
  • Flame resistant 850 °C
  • Communautés Européennes, EC declaration of conformity according to EC directives
  • RoHS-conformant
  • Diameter 68 mm
Technical data

Technical data

Accessory screw clearance 60 mm
CO2 Footprint (GWP) Cradle-to-Gate 0,0145 kg CO₂e / 1 Piece
Colour Orange
Diameter 68 mm

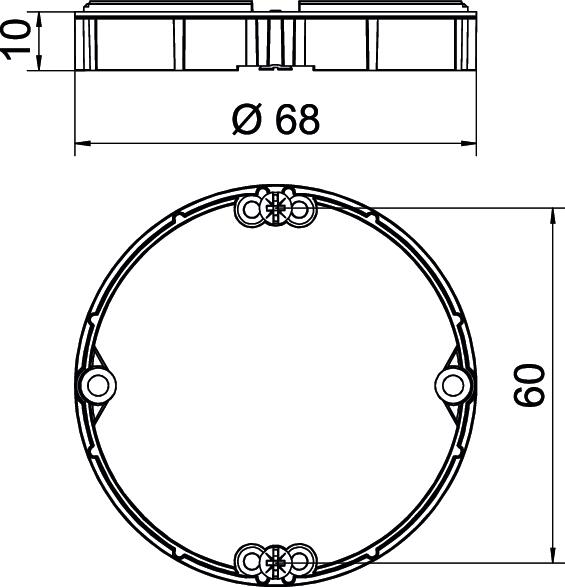

Dimension Ø68mm, H10mm
Flame-resistant Acc. to VDE 0471/IEC 60695-2-11, test temperature 850°C
Halogen-free yes
Height 10 mm
Impact-resistant yes
Material Polypropylene
With bolts yes
All types

All types

Types Mounting type Item no.
ZH 10-AR 2003842
