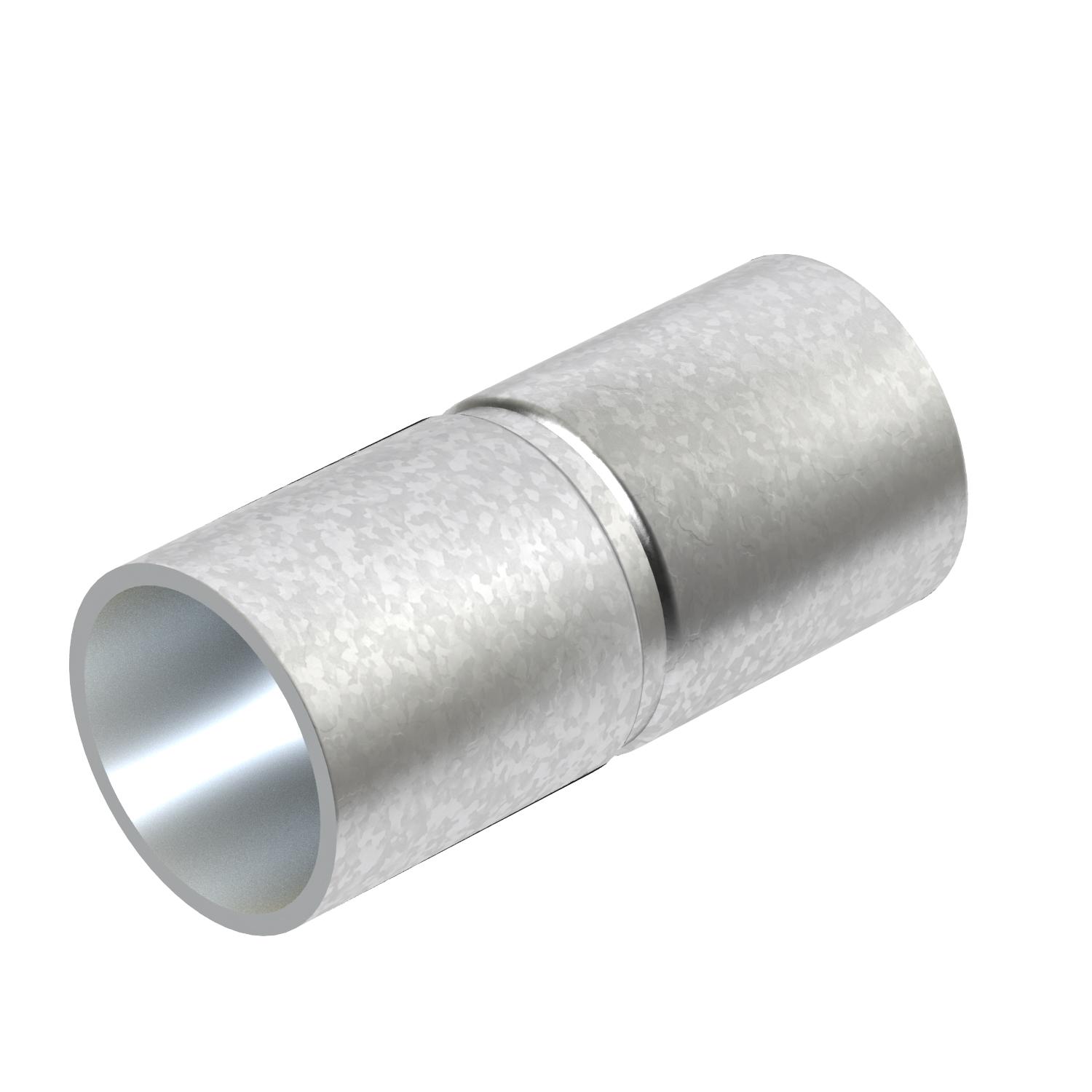

Hot-dip galvanised steel sleeve, without thread
Item no. 2046620 | EAN 4012195782384
- Product description
-
Product descriptionAccessory part: plug-in sleeve for the connections between electrical installation pipes. With burr-free inner wall.
-
- Technical data
-
Technical data

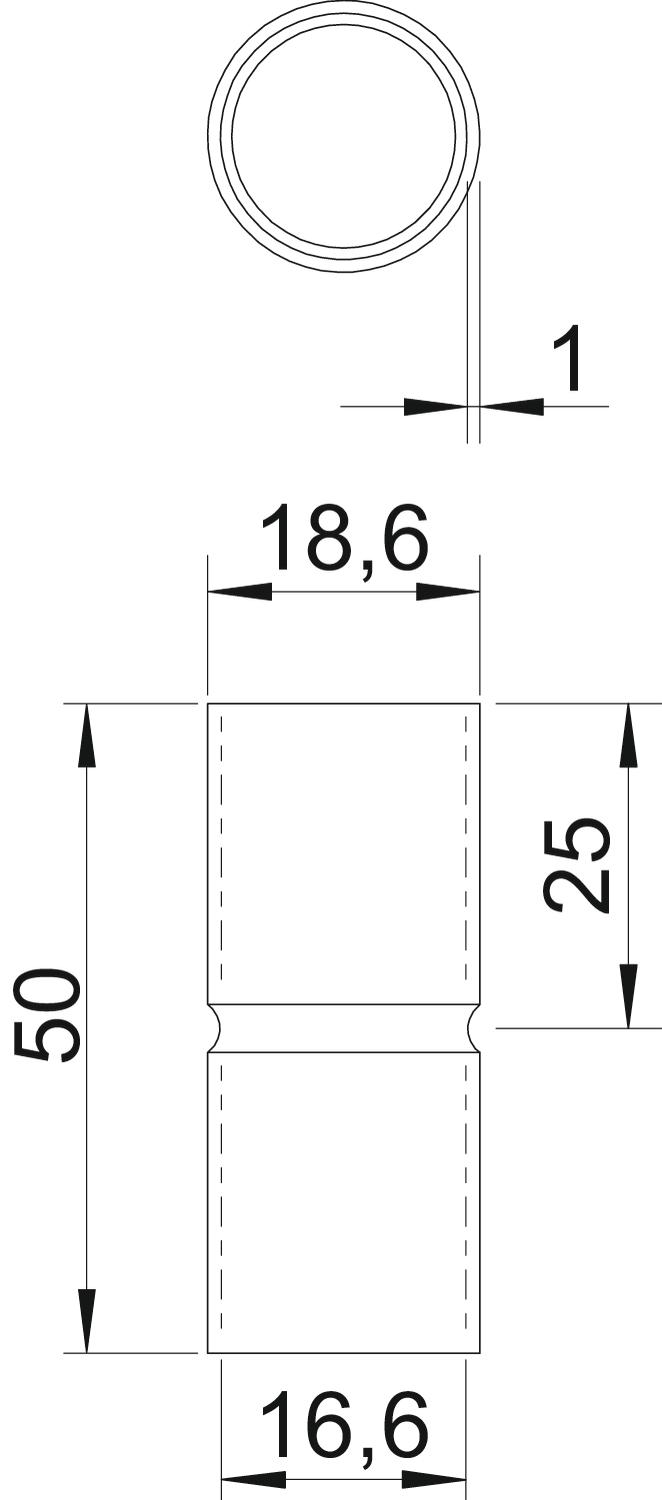

Brushed surface no CO2 Footprint (GWP) Cradle-to-Gate 0,0795 kg CO₂e / 1 Piece Dimension Ø16mm Dimension d 16,6 mm Dimension D 18,6 mm Dimension l 25 mm Dimension L 50 mm Dimension m (mm) M16 Dimension t 1 mm for pipe diameter 16 mm Halogen-free yes Length 50 mm Material Steel Permitted temperature range, max. 400 °C Permitted temperature range, min. -45 °C Polished surface no Size 16 Surface Hot-dip galvanised Two-part no Version for Connector With inspection opening and lid no - All types
- Downloads
-
Data sheet SV16W FT / 2046620 , 0.20MB , pdfEU declaration of conformity SV16W FT / 2046620 , 0.10MB , pdfUK Declaration of Conformity SV16W FT / 2046620 , 0.09MB , pdfREACH Declaration of conformity SV16W FT / 2046620 , 0.12MB , pdfRoHS Declaration of conformity SV16W FT / 2046620 , 0.12MB , pdf
