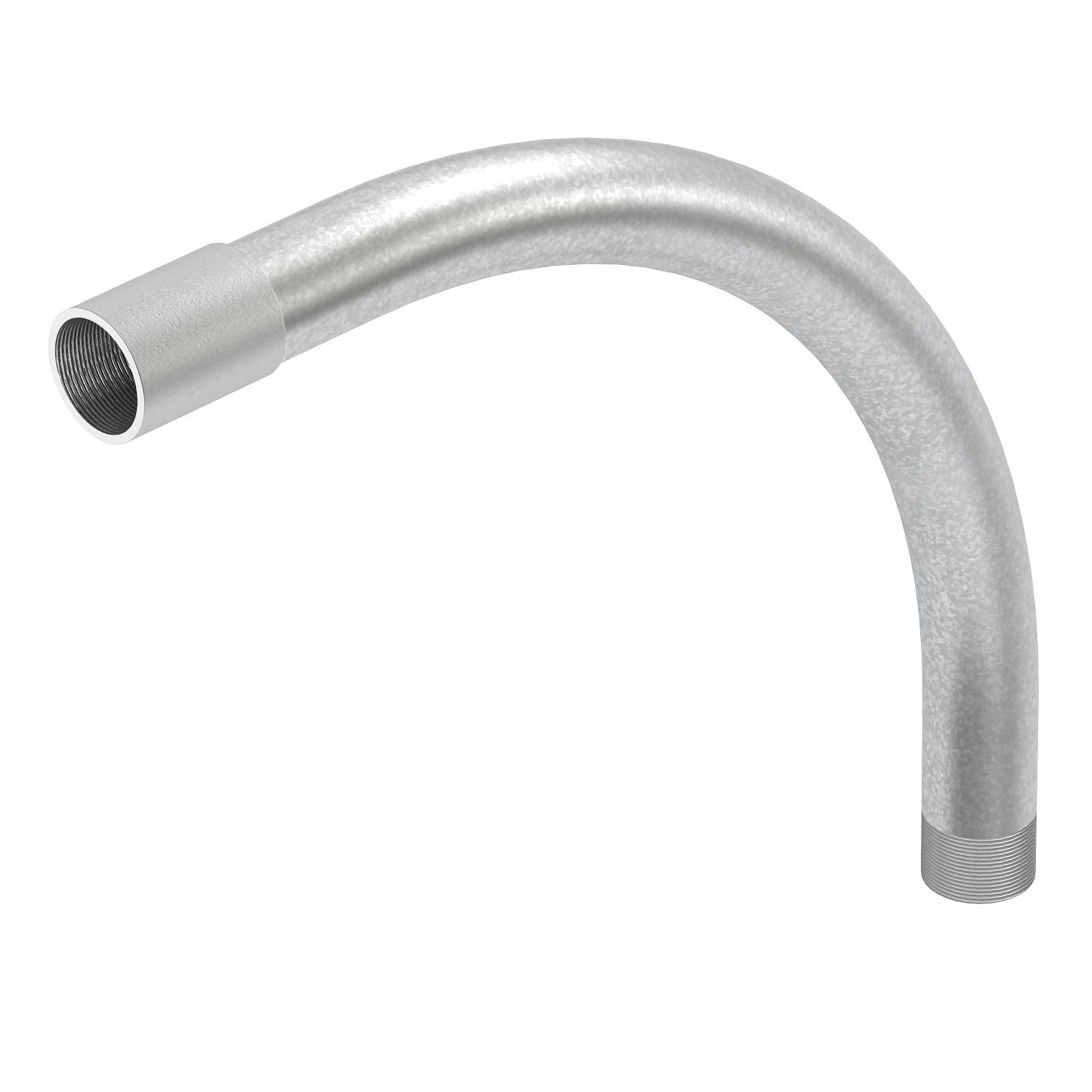

Hot-dip galvanised steel bend, with thread
Item no. 2046791 | EAN 4012196387656
- Product description
-
Product description90° bend for electrical installation pipes according to EN 61386-1 with threaded ends to DIN EN 60423. With burr-free inner wall.
One connection sleeve is already screwed onto each pipe bend.
-
- Technical data
-
Technical data

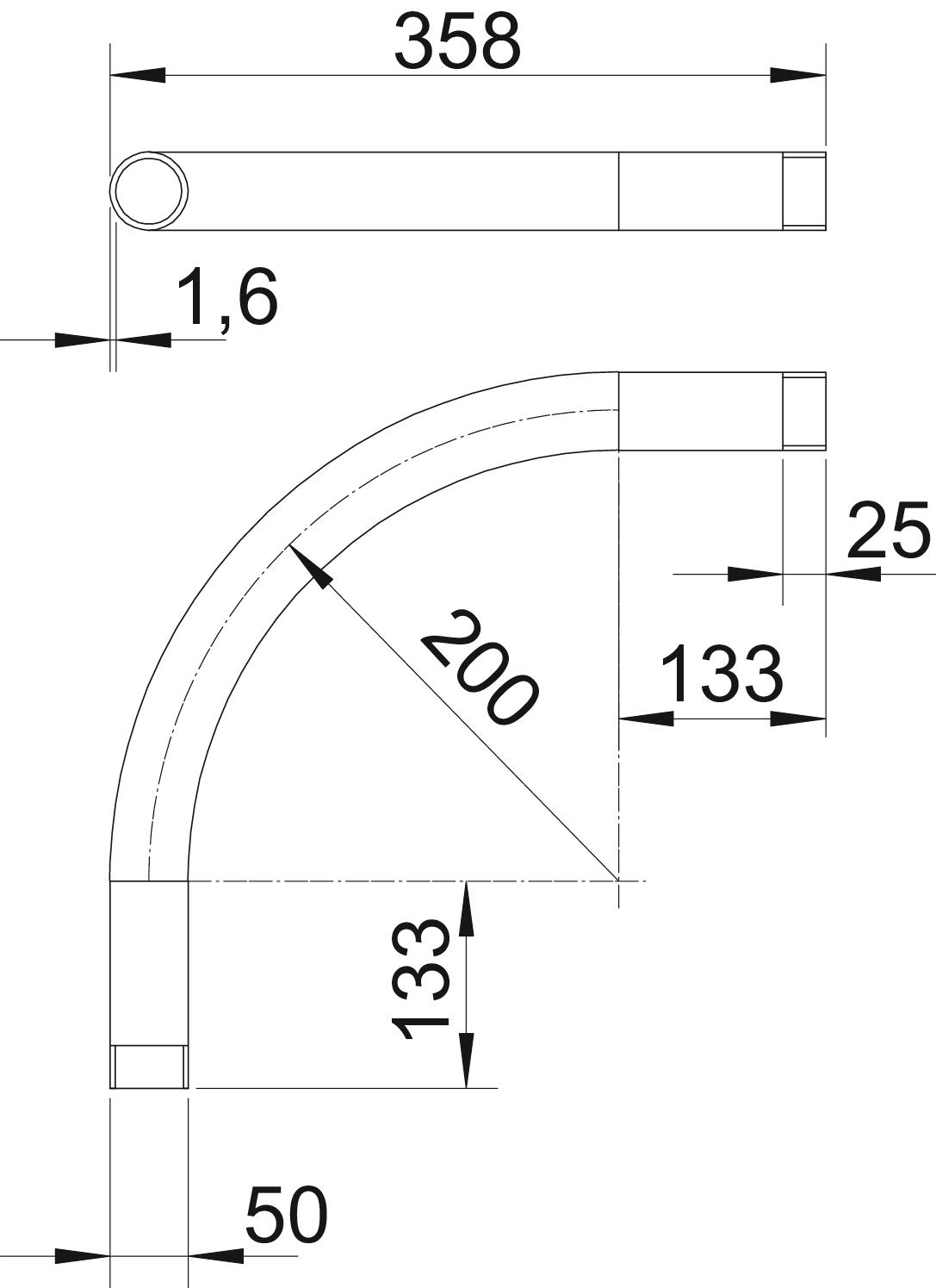

Angle of the bend 90 ° Brushed surface no CO2 Footprint (GWP) Cradle-to-Gate 4,7031 kg CO₂e / 1 Piece Dimension M50x1,5 Dimension A 133 mm Dimension B 358 mm Dimension D 50 mm Dimension l 25 mm Dimension m (mm) M50 Dimension R 200 mm Dimension t 1,6 mm Flexible no For nominal pipe diameter 50 mm Halogen-free no Material Steel Polished surface no Surface Hot-dip galvanised Thread M50x1,5 Two-part no Version for Thread With inspection opening and lid no With sleeve yes - All types
- Downloads
-
Data sheet SBNM50 FT / 2046791 , 0.18MB , pdfEU declaration of conformity SBNM50 FT / 2046791 , 0.10MB , pdfUK Declaration of Conformity SBNM50 FT / 2046791 , 0.09MB , pdfREACH Declaration of conformity SBNM50 FT / 2046791 , 0.12MB , pdfRoHS Declaration of conformity SBNM50 FT / 2046791 , 0.12MB , pdf
