Hexagonal wood screw DIN 571 | 40 | 10 | | Steel
morepic-1 morepic-2

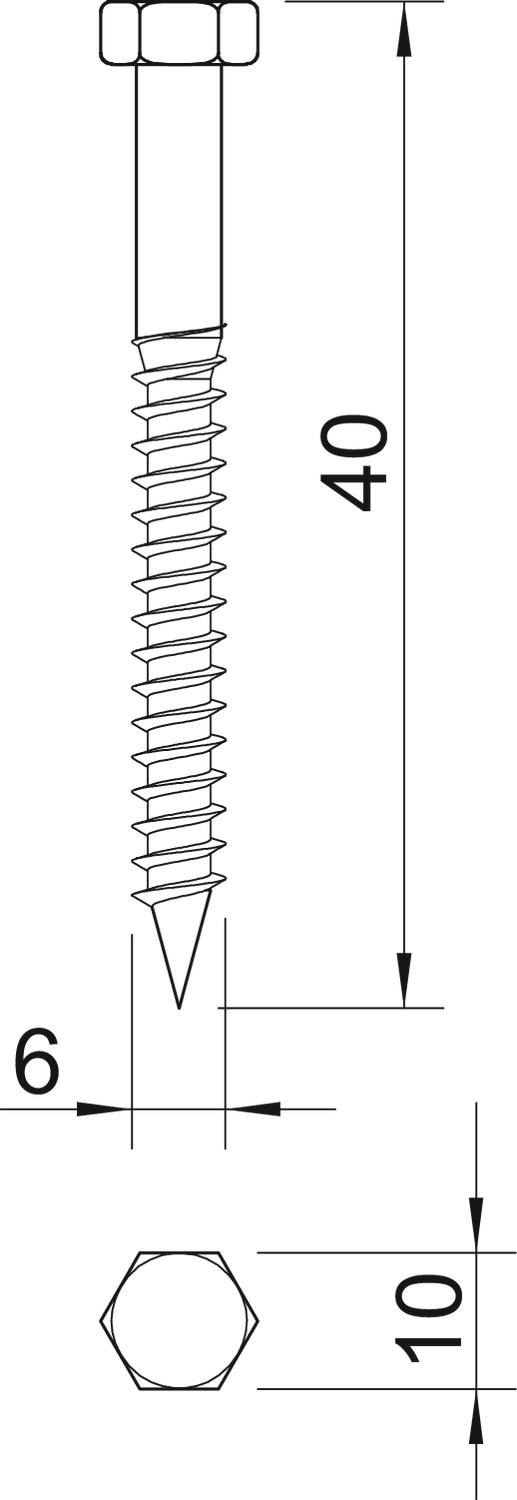

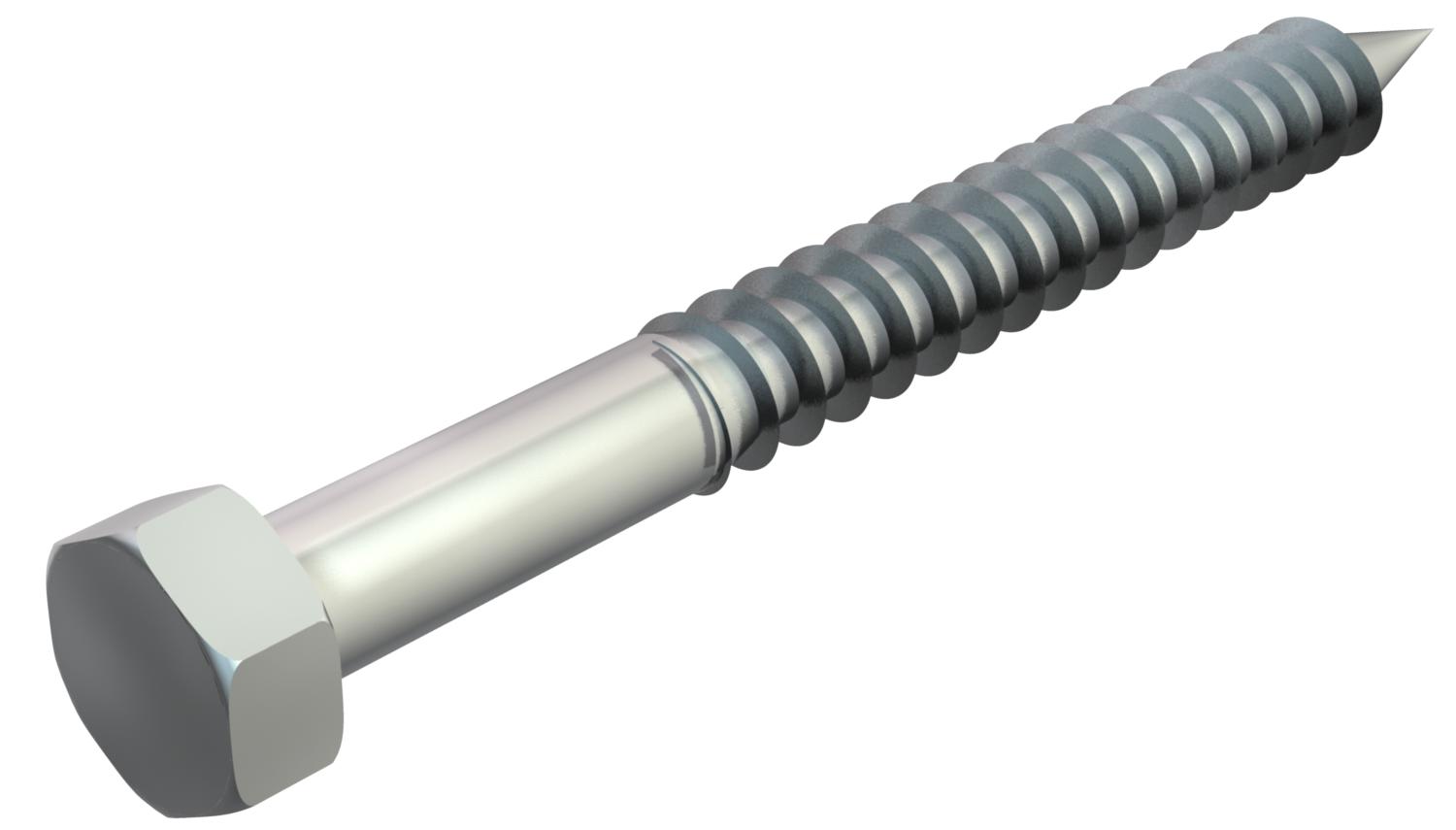

Hexagonal wood screw DIN 571

Item no. 3188043 | EAN 4012195866718

Product description
Product description
Hexagonal screw to DIN 571 with wood thread. Suitable for anchors, type 910.
  • Communautés Européennes, EC declaration of conformity according to EC directives
Technical data

Technical data

CO2 Footprint (GWP) Cradle-to-Gate 0,0206 kg CO₂e / 1 Piece
Dimension 6x40mm
Dimension D 6 mm
Dimension L 40 mm
Head shape Hexagonal
Length 40 mm
Material Steel
Screw system Hexagon head
Shank diameter 6 mm
Surface Electrogalvanized
WAF 10
All types

All types

Types 0 Item no.
HHWS 6x40 G 3188043
HHWS 6x50 G 3188051
HHWS 6x60 G 3188078
HHWS 6x80 G 3188094
HHWS 8x40 G 3188140
HHWS 8x50 G 3188159
HHWS 8x60 G 3188167
HHWS 8x70 G 3188175
HHWS 8x80 G 3188183
HHWS 8x100 G 3188205
HHWS 10x60 G 3188256
HHWS 10x70 G 3188272
HHWS 10x80 G 3188280
HHWS 10x100 G 3188302
HHWS 12x70 G 3188361
HHWS 12x80 G 3188388
