Hexagonal nut DIN 934 V5A 8 | 6.8 | 13

morepic-1

morepic-2

Hexagonal nut DIN 934 V5A

Item no. 3400185 | EAN 4012195909361

Item no. / Types

Dimension d

Dimension h

WAF

Product description

Product description

Hexagonal nut to DIN 934 with metric thread.

Technical data

Technical data

CO2 Footprint (GWP) Cradle-to-Gate	0,0251 kg CO₂e / 1 Piece
Dimension	M8
Dimension d	8 mm
Dimension h	6,8 mm
Halogen-free	yes
Left thread	no
Material	Stainless steel
Nut version	Nut
Resistance grade	8

Screw system nut	Hexagon head
Self-locking	no
Thread	M8
Thread metric	8
Thread type	Metric
Thread, imperial	5/16"
WAF	13
With flange	no

All types

All types

Types	Dimension d	Dimension h	WAF	Item no.
HN M6 A5	6 mm	5.2 mm	10	3400183
HN M8 A5	8 mm	6.8 mm	13	3400185

Downloads

Data sheet HN M8 A5 / 3400185 , 0.17MB , pdf

Catalogue Fastening materials , 19.78MB , pdf

EU declaration of conformity HN M8 A5 / 3400185 , 0.05MB , pdf

Download

REACH Declaration of conformity HN M8 A5 / 3400185 , 0.12MB , pdf

Download

RoHS Declaration of conformity HN M8 A5 / 3400185 , 0.13MB , pdf

Download

Product graphic HN M8 A5 / 3400185, 67.41 kB, jpg

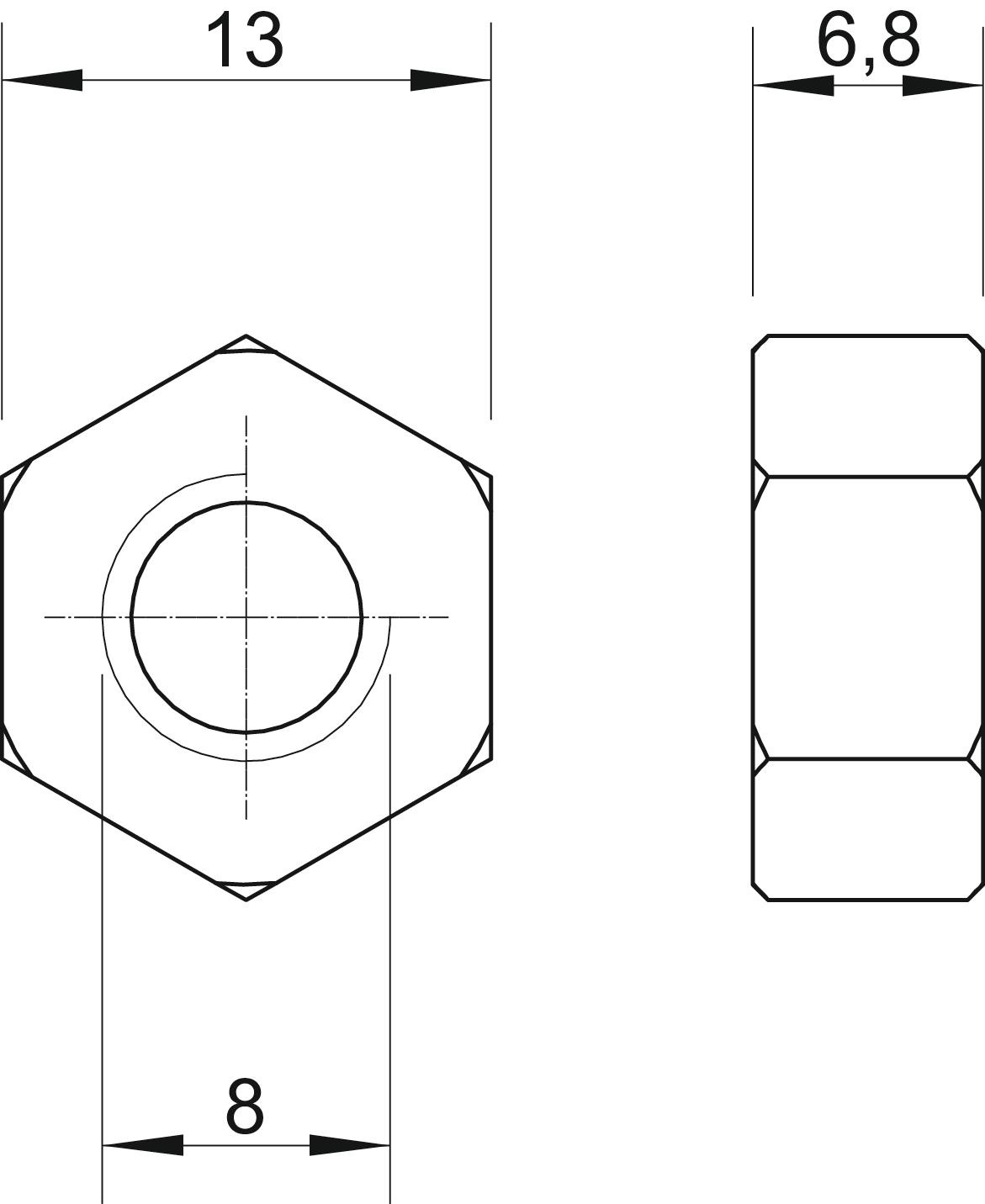

Scale drawing HN M8 A5 / 3400185, 59.30 kB, jpg
