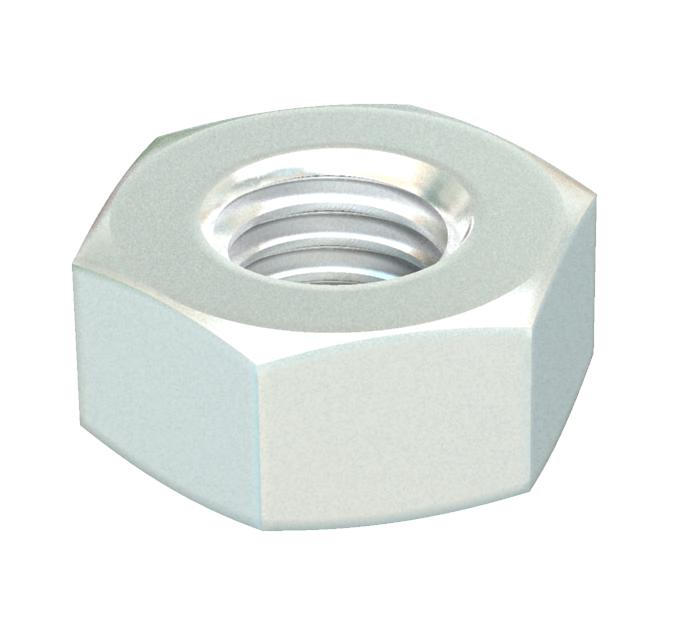

Hexagonal nut DIN 934 V4A
Item no. 3397145 | EAN 4012195894810
- Product description
-
Product descriptionHexagonal nut to DIN 934 with metric thread.
-
- Technical data
-
Technical data

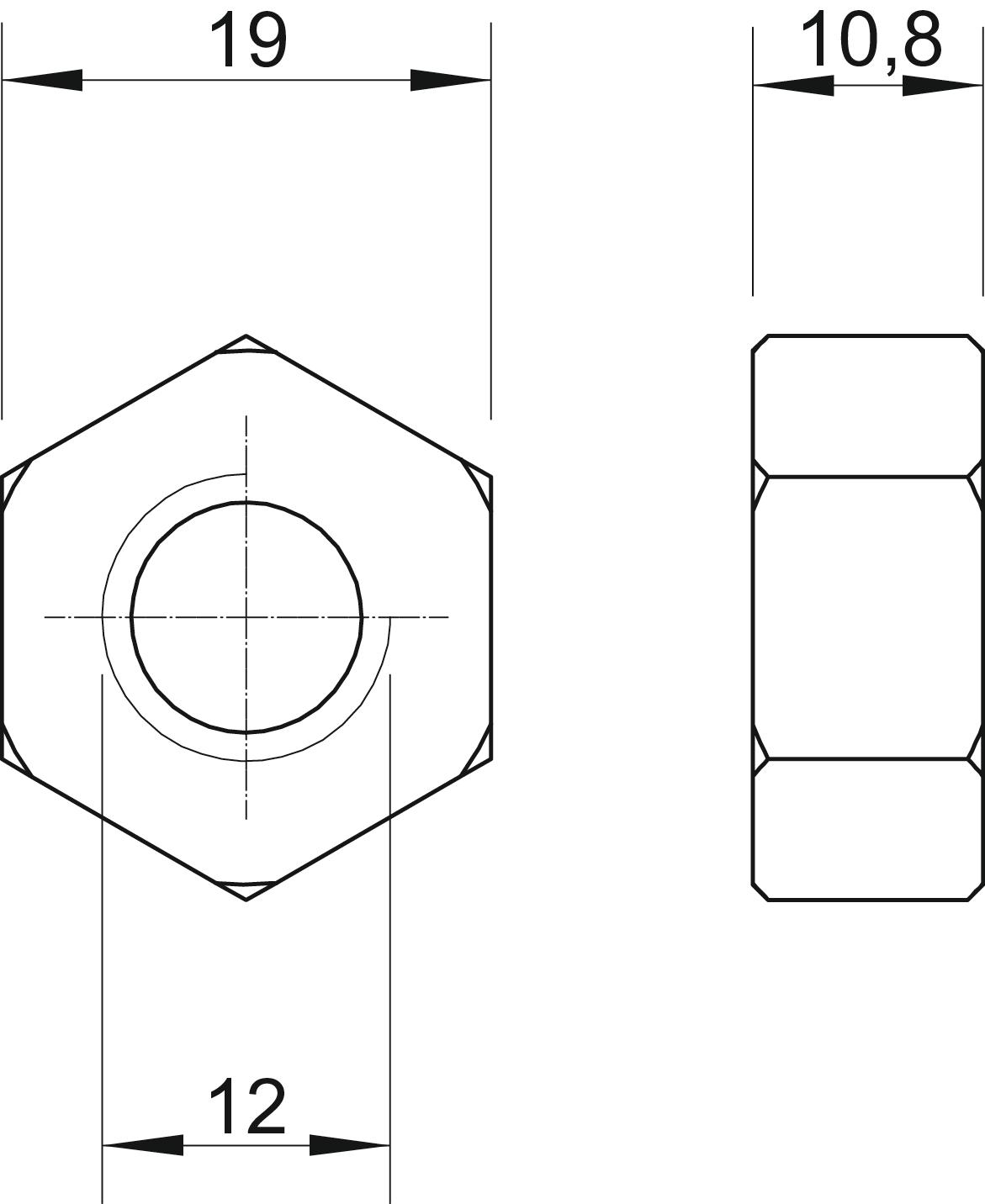

CO2 Footprint (GWP) Cradle-to-Gate 0,0834 kg CO₂e / 1 Piece Dimension M12 Dimension d 12 mm Dimension h 10,8 mm Halogen-free yes Left thread no Material Stainless steel Nut version Nut Resistance grade 8 Screw system nut Hexagon head Self-locking no Surface Bright, treated Thread M12 Thread metric 12 Thread type Metric Thread, imperial 1/2" WAF 19 With flange no - All types
- Downloads
-
Data sheet HN M12 A4 / 3397145 , 0.15MB , pdfCatalogue Fastening materials , 19.78MB , pdfEU declaration of conformity HN M12 A4 / 3397145 , 0.05MB , pdfREACH Declaration of conformity HN M12 A4 / 3397145 , 0.12MB , pdfRoHS Declaration of conformity HN M12 A4 / 3397145 , 0.13MB , pdf
