Hexagonal bolt M12 A2
Item no. 6418368 | EAN 4012196204618
- Product description
-

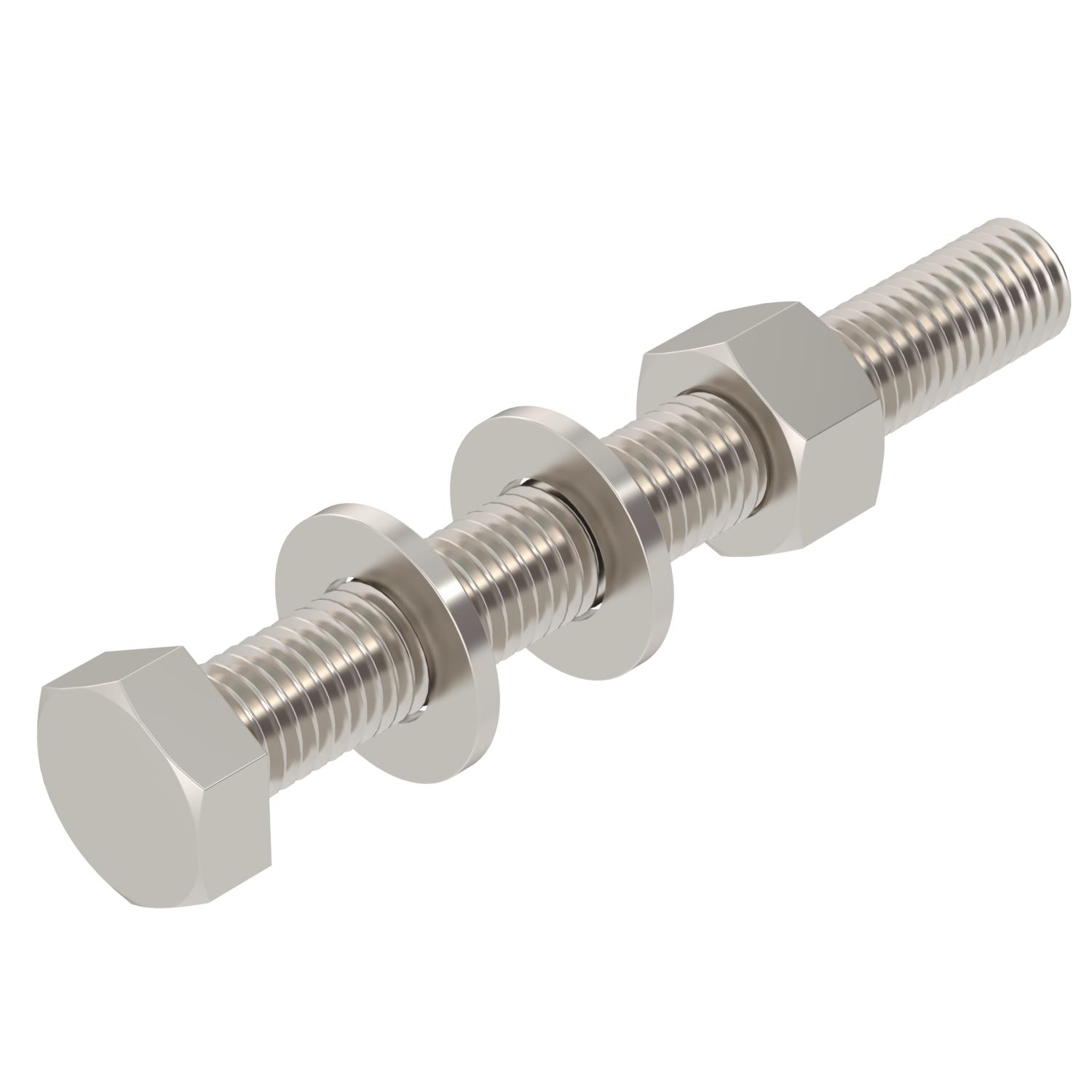

Product descriptionHexagonal bolt for universal fastening of construction components. With hexagonal nut and 2 washers.
-
- Technical data
-
Technical data

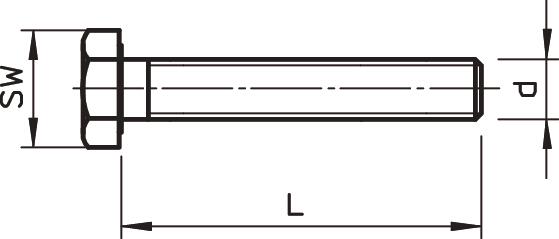

CO2 Footprint (GWP) Cradle-to-Gate 0,6068 kg CO2e / 1 Piece Colour stainless steel Dimension M12x100 Dimension d 12 mm Dimension L 100 mm Full thread yes Left thread no Length 100 mm Material Stainless steel Resistance grade A2-70 Screw system Hexagonal Self-locking no Surface Bright, treated Thread M 12 x 100 Thread increase 1,75 mm Thread length 100 mm Thread metric 12 Thread type Metric WAF 19 With flange no With nut yes With washer yes - All types
- Downloads
-
Data sheet SKS 12x100 A2 / 6418368 , 0.15MB , pdfEU declaration of conformity SKS 12x100 A2 / 6418368 , 0.22MB , pdfREACH Declaration of conformity SKS 12x100 A2 / 6418368 , 0.12MB , pdfRoHS Declaration of conformity SKS 12x100 A2 / 6418368 , 0.12MB , pdfMounting instructions General information on the mounting , 2.65MB , pdf
