Hexagonal bolt DIN 933 A5
Item no. 3156054 | EAN 4012195940739
- Product description
-

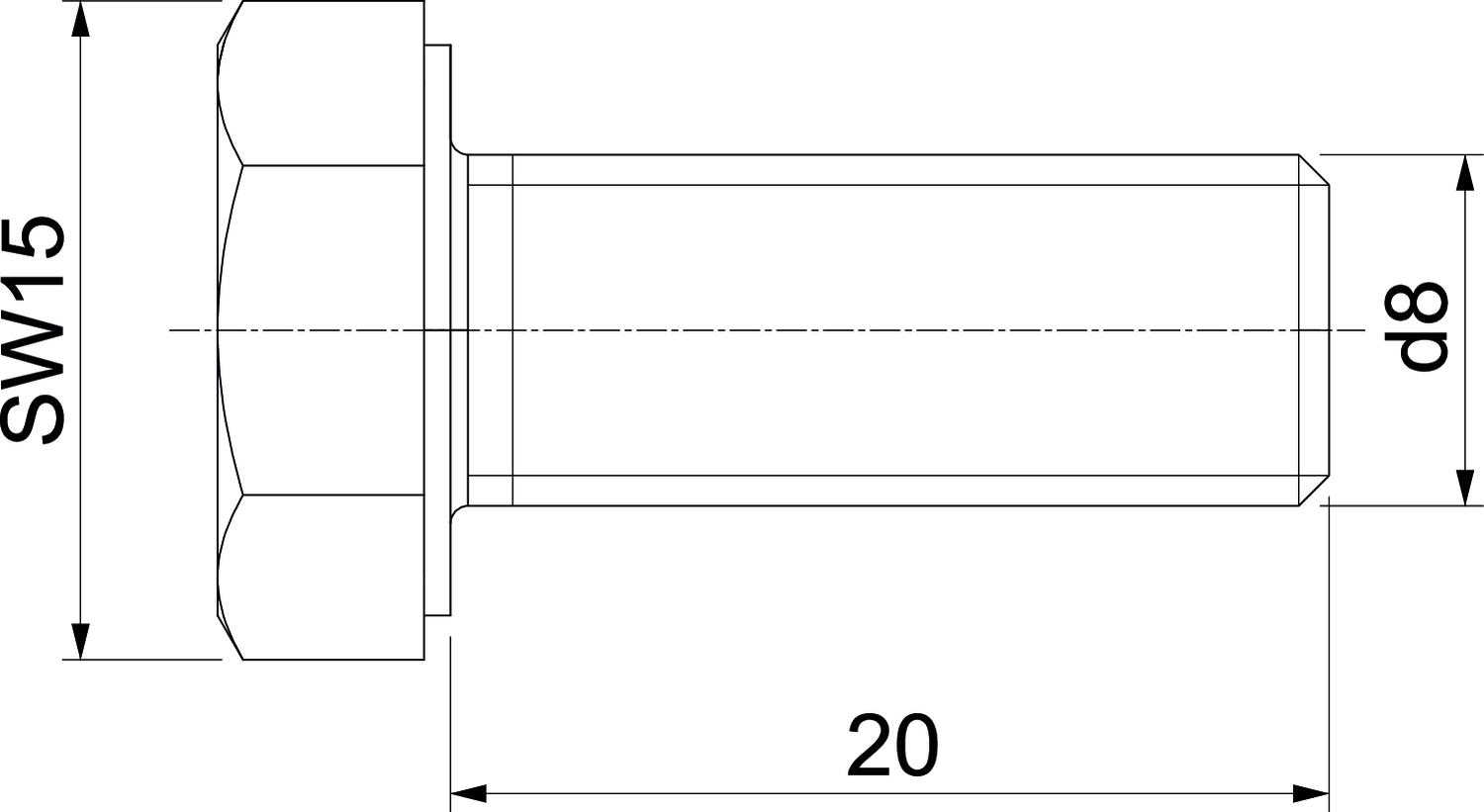

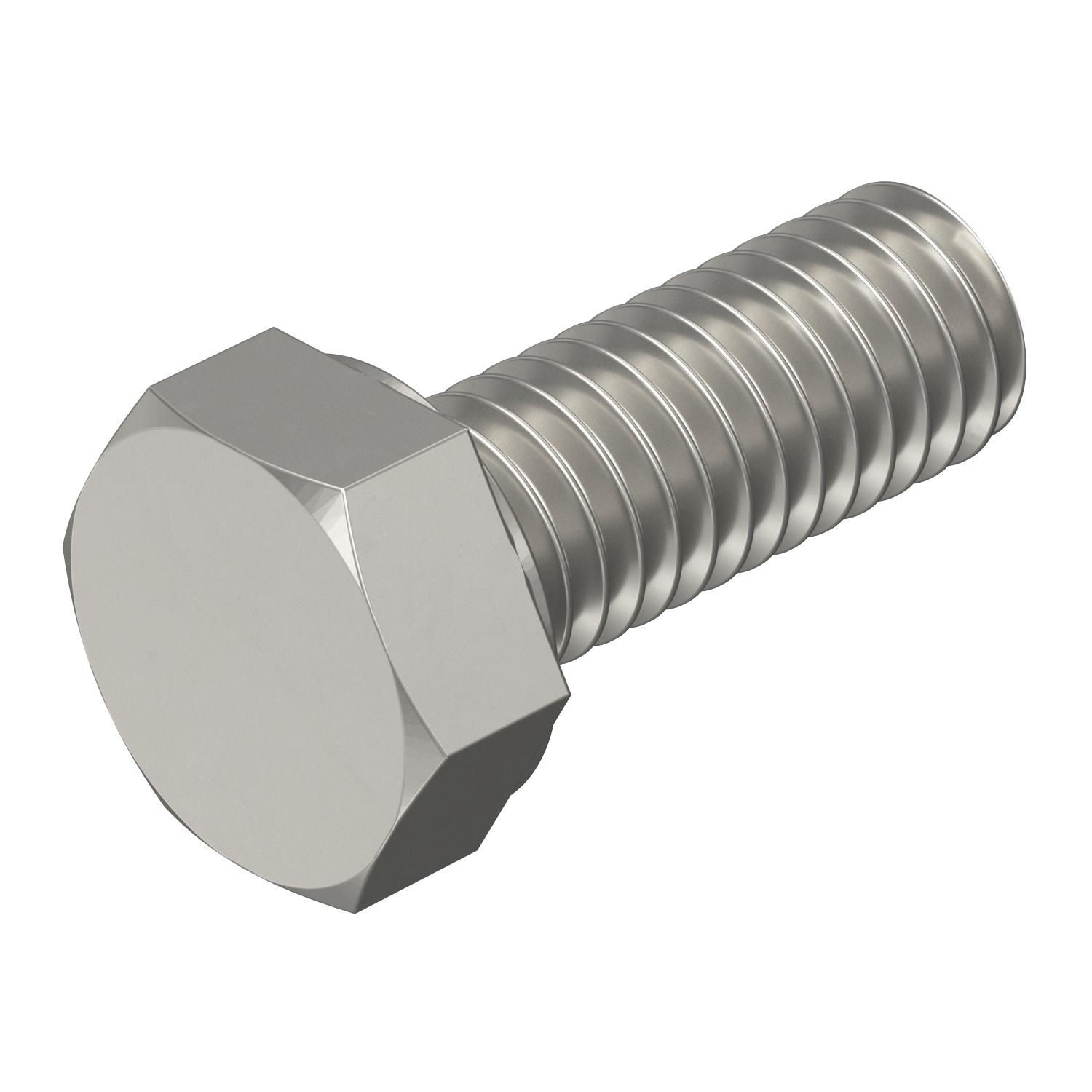

Product descriptionHexagonal bolt M8x20
-
- Technical data
-
Technical data
CO2 Footprint (GWP) Cradle-to-Gate 0,059 kg CO₂e / 1 Piece Dimension M8x20mm Dimension d 8 mm Dimension L 20 mm Full thread yes Left thread no Length 20 mm Material Stainless steel Screw system Hexagonal Self-locking no Thread M8 Thread length 20 mm Thread metric 8 Thread type Metric WAF 13 With flange no With nut no With washer no - All types
- Downloads
-
Data sheet HHS M8x20 A5 / 3156054 , 0.16MB , pdfCatalogue Fastening materials , 19.78MB , pdfREACH Declaration of conformity HHS M8x20 A5 / 3156054 , 0.12MB , pdfRoHS Declaration of conformity HHS M8x20 A5 / 3156054 , 0.13MB , pdf
