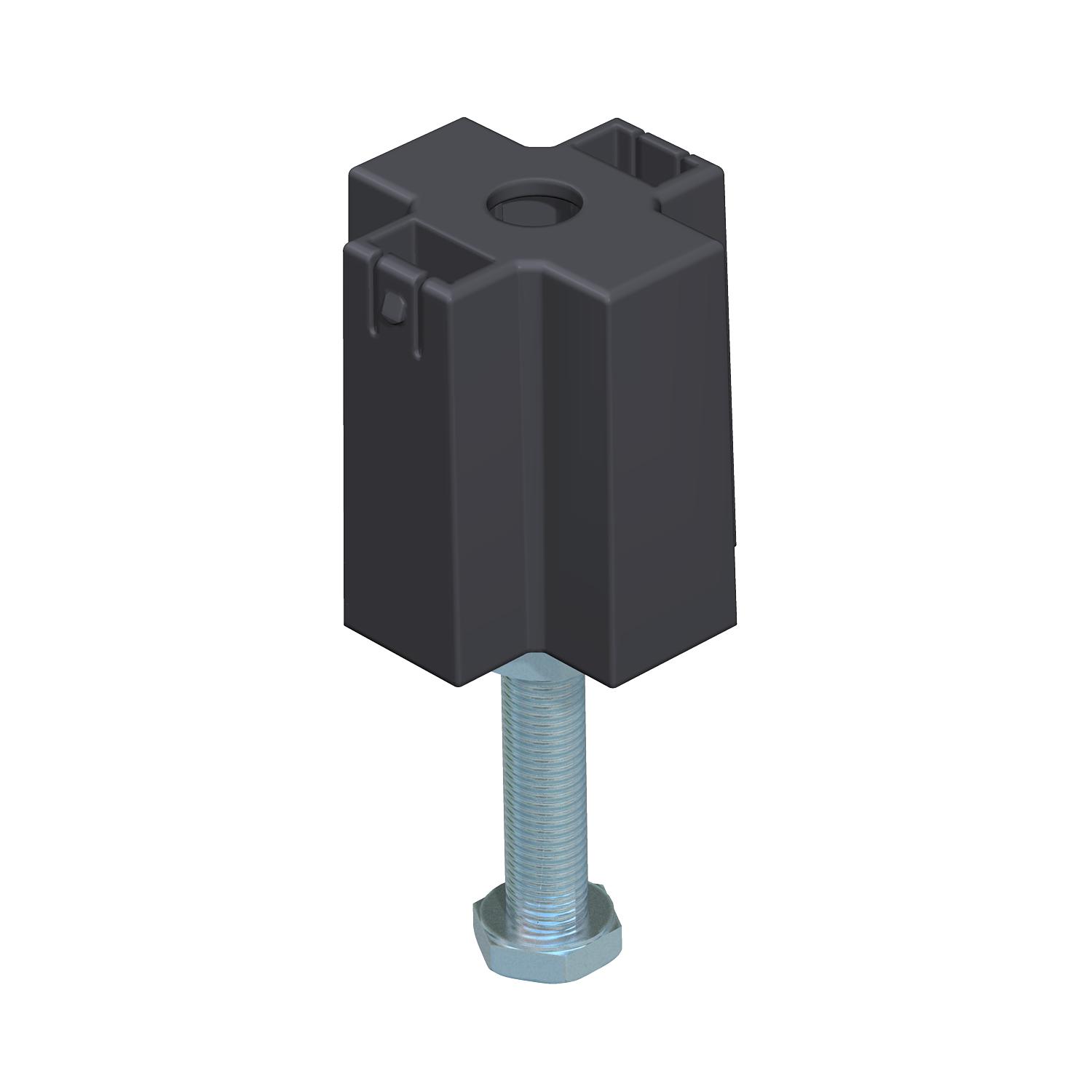

Height adjustment unit for lid butt support, trunking height 60-110 mm

Item no. / Types	7424842 / NE DSU2 6050

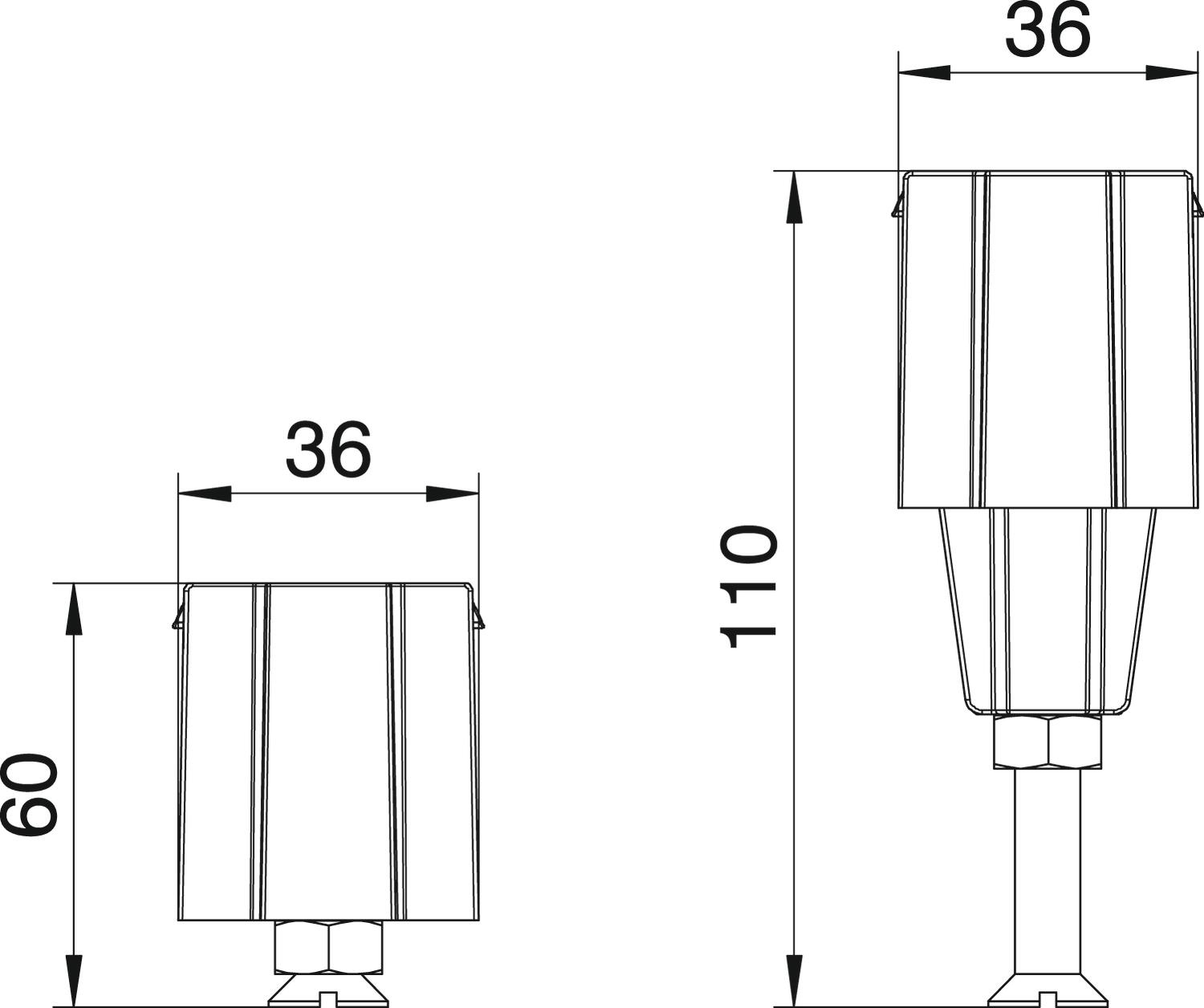

Height-adjustment range, min.	60 mm

Height-adjustment range, max.	110 mm

Product description

Product description

For central support of a lid butt support of nominal width 400, 500 or 600.

Technical data

Accessories	yes
CO2 Footprint (GWP) Cradle-to-Gate	0,3131 kg CO2e / 1 Piece
Decouplable	no
Device support to accept mounting boxes	no
Duct height, min.	60 mm
Height-adjustment range, max.	110 mm
Height-adjustment range, min.	60 mm

Material	Steel
Minimum screed height	40
Spare part	no
Suitable for screed-flush closed underfloor ducts	no
Surface	Strip galvanized
Trunking height, max.	110 mm
Width	35 mm

All types

All types

Types	Height-adjustment range, min.	Height-adjustment range, max.	Item no.
NE DSU2 6050	60 mm	110 mm	7424842

Downloads

Data sheet NE DSU2 6050 / 7424842 , 0.16MB , pdf

Catalogue Floor installation systems and Underfloor applications , 42.28MB , pdf

EU declaration of conformity NE DSU2 6050 / 7424842 , 0.11MB , pdf
