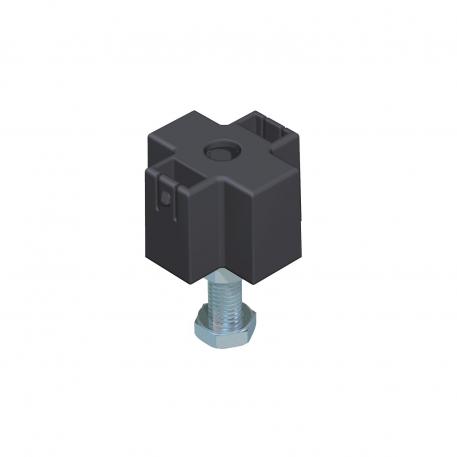

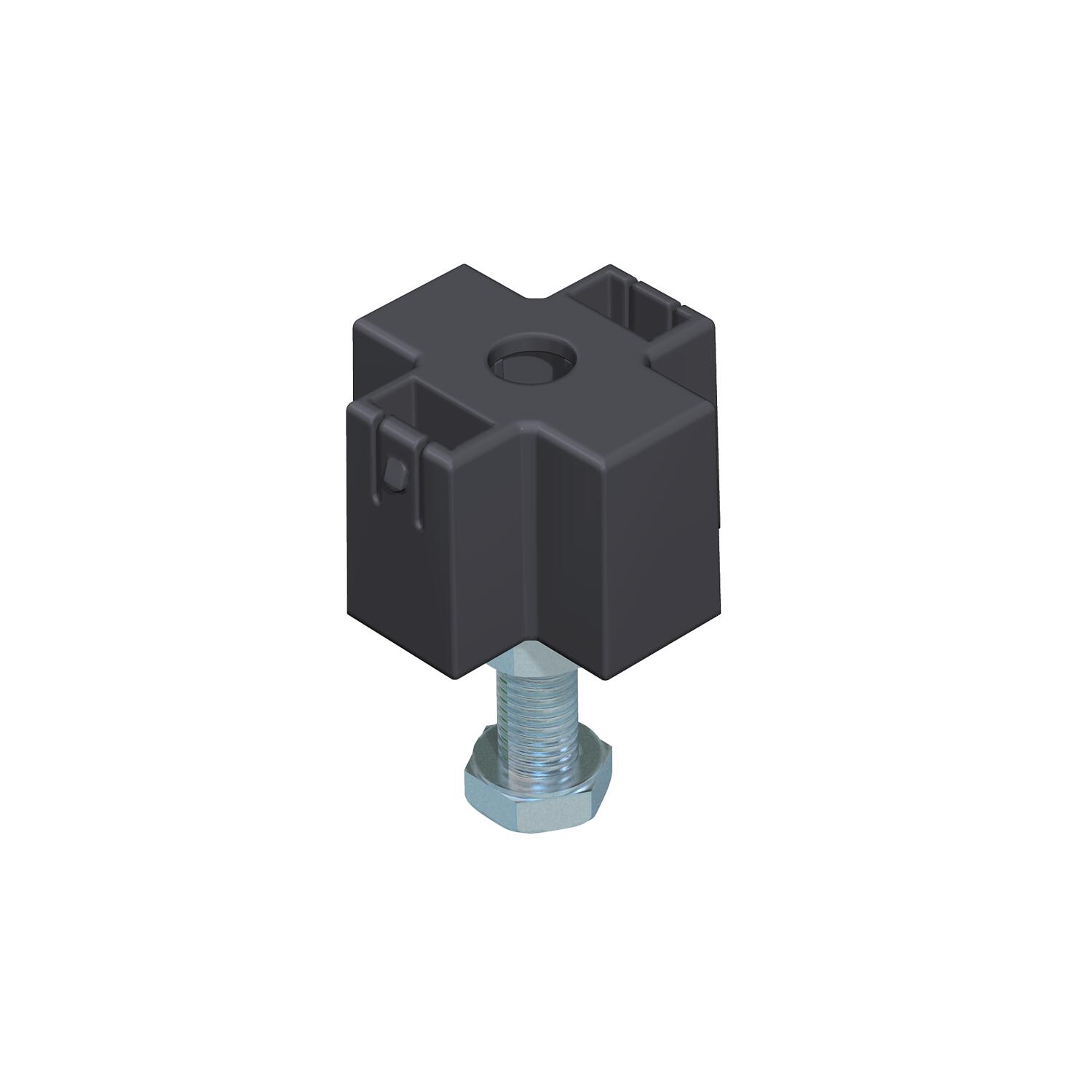

Height adjustment unit for lid butt support, trunking height 40-70 mm
Item no. 7424840 | EAN 4012195245117
- Product description
-
Product descriptionFor central support of a lid butt support of nominal width 400, 500 or 600.
-
- Technical data
-
Technical data

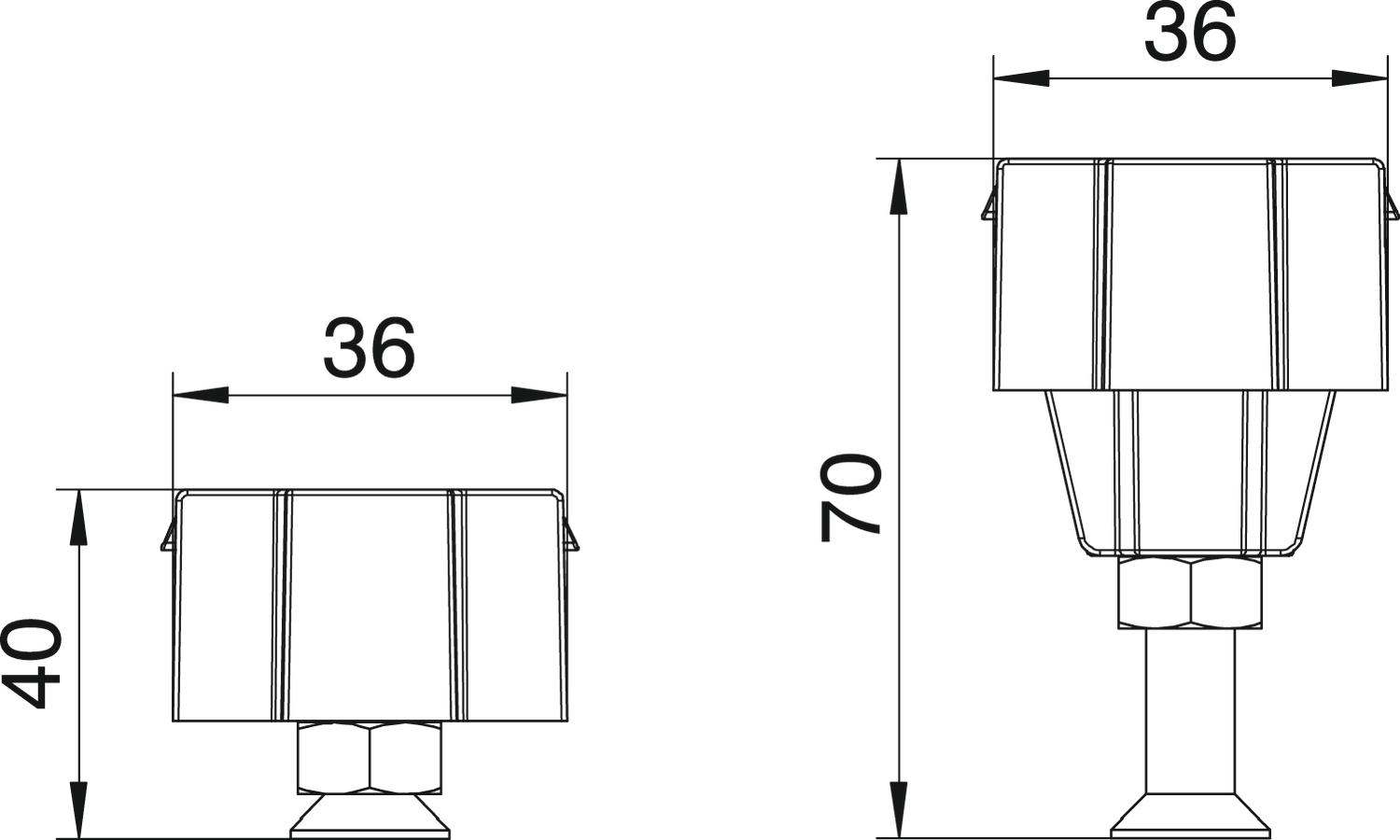

Accessories yes CO2 Footprint (GWP) Cradle-to-Gate 0,1354 kg CO2e / 1 Piece Decouplable no Device support to accept mounting boxes no Duct height, min. 40 mm Height-adjustment range, max. 70 mm Height-adjustment range, min. 40 mm Material Steel Minimum screed height 40 Spare part no Suitable for screed-flush closed underfloor ducts no Surface Strip galvanized Trunking height, max. 70 mm Width 35 mm - All types
- Downloads
-
Data sheet NE DSU2 4030 / 7424840 , 0.16MB , pdfEU declaration of conformity NE DSU2 4030 / 7424840 , 0.11MB , pdfREACH Declaration of conformity NE DSU2 4030 / 7424840 , 0.12MB , pdfRoHS Declaration of conformity NE DSU2 4030 / 7424840 , 0.13MB , pdfLabel approval VDE symbol approval, OKA , 0.18MB , pdfMounting instructions Mounting instructions, screed-flush duct systems OKA-G and OKA-W , 3.48MB , pdfNo invitation to tender text is available for this product.
