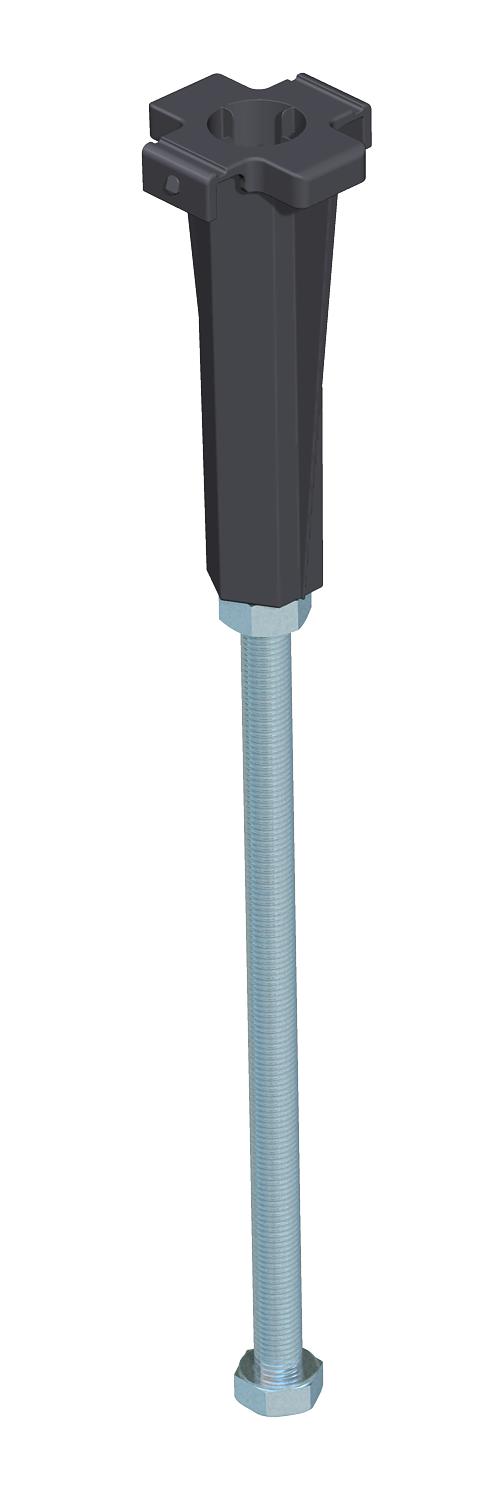

Height adjustment unit for lid butt support, trunking height 170-245 mm

Item no. / Types	7424846 / NE DSU2 17075

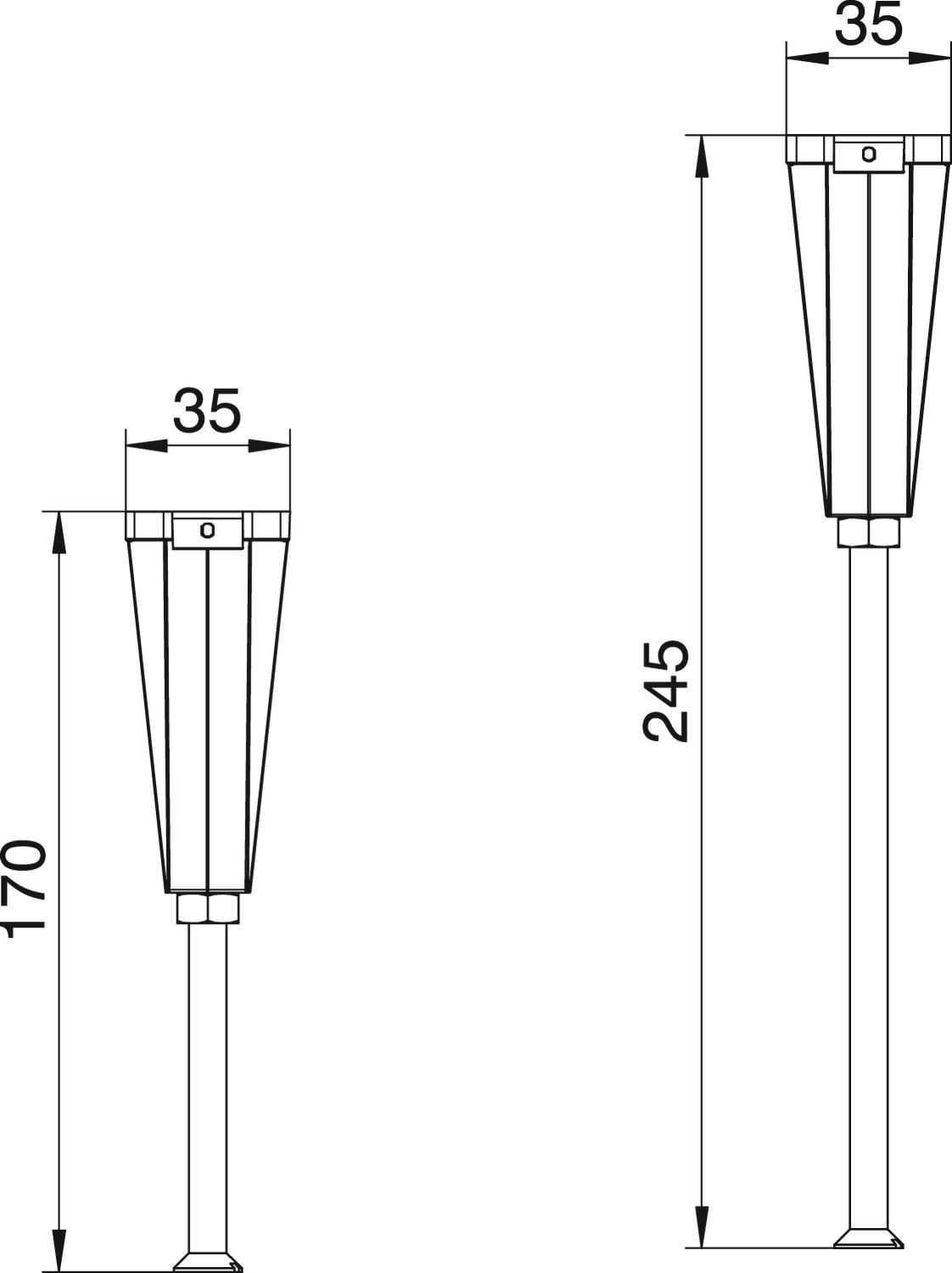

Height-adjustment range, min.	170 mm

Height-adjustment range, max.	245 mm

Product description

Product description

For central support of a lid butt support of nominal width 400, 500 or 600.

Technical data

Accessories	yes
CO2 Footprint (GWP) Cradle-to-Gate	0,2122 kg CO2e / 1 Piece
Decouplable	no
Device support to accept mounting boxes	no
Duct height, min.	170 mm
Height-adjustment range, max.	245 mm
Height-adjustment range, min.	170 mm

Material	Steel
Minimum screed height	40
Spare part	no
Suitable for screed-flush closed underfloor ducts	no
Surface	Strip galvanized
Trunking height, max.	245 mm
Width	35 mm

All types

All types

Types	Height-adjustment range, min.	Height-adjustment range, max.	Item no.
NE DSU2 17075	170 mm	245 mm	7424846

Downloads

Data sheet NE DSU2 17075 / 7424846 , 0.17MB , pdf

Catalogue Floor installation systems and Underfloor applications , 42.28MB , pdf

EU declaration of conformity NE DSU2 17075 / 7424846 , 0.11MB , pdf
