Height adjustment unit for lid butt support, trunking height 100-175 mm 100 | 175
morepic-1 morepic-2

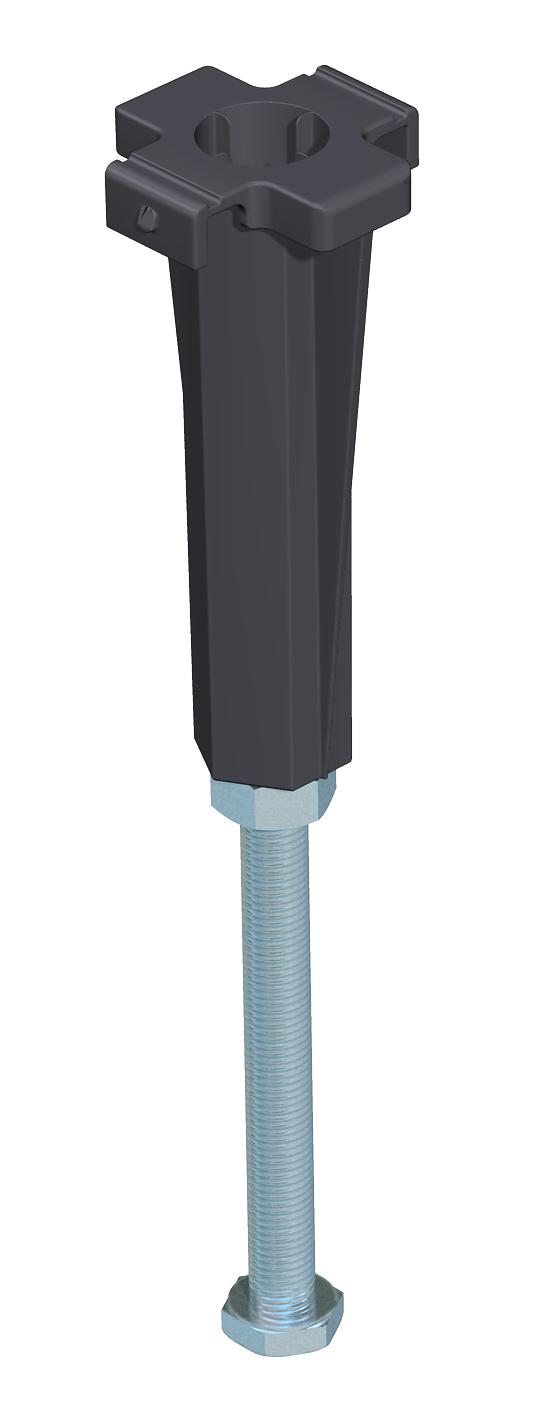

Height adjustment unit for lid butt support, trunking height 100-175 mm

Item no. 7424844 | EAN 4012195245131

7424844 / NE DSU2 10075

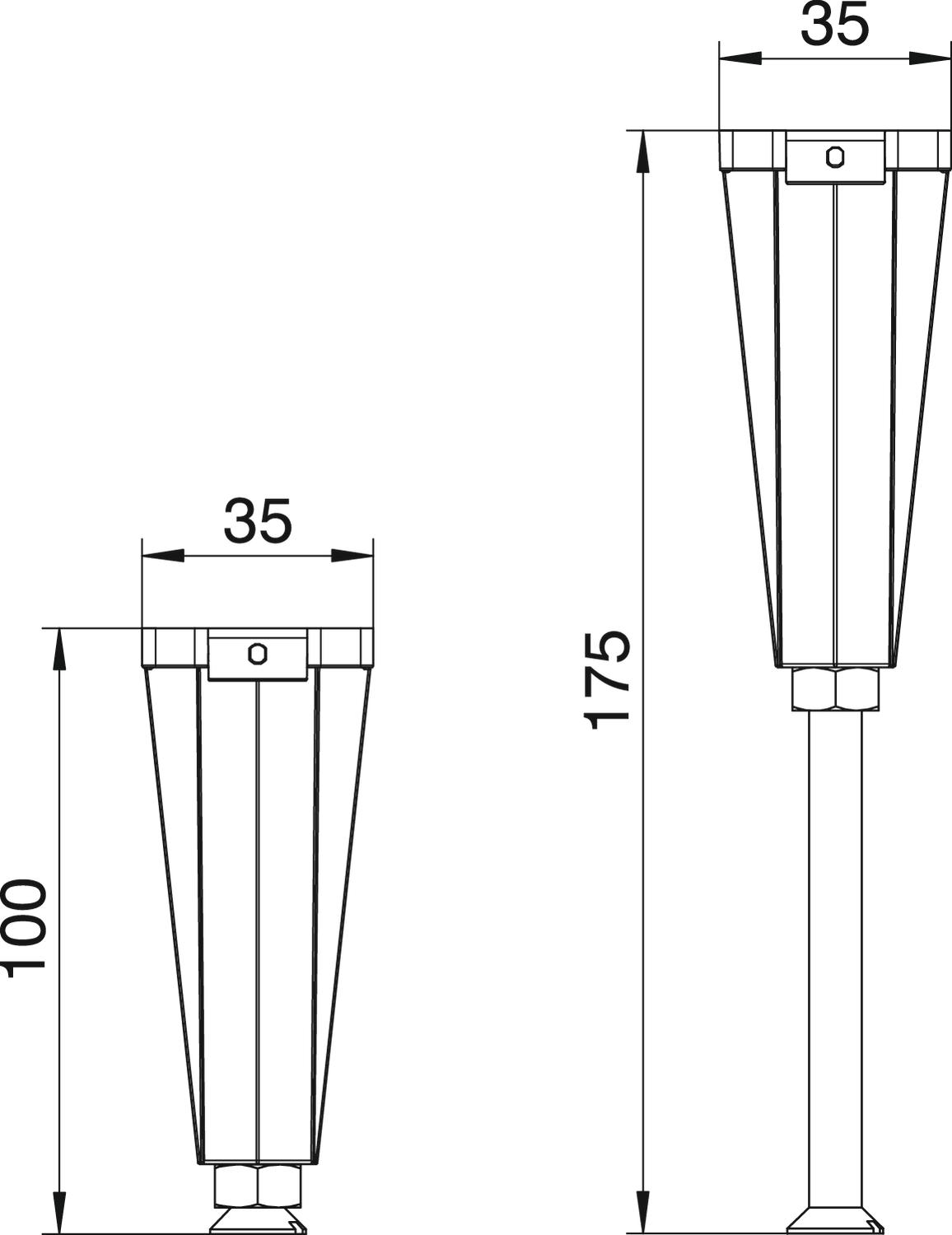

100 mm
175 mm
Product description
Product description
For central support of a lid butt support of nominal width 400, 500 or 600.
  • Verband der Elektrotechnik, Elektronik, Informationstechnik e.V., Germany
  • Communautés Européennes, EC declaration of conformity according to EC directives
Technical data

Technical data

Accessories yes
CO2 Footprint (GWP) Cradle-to-Gate 0,1858 kg CO2e / 1 Piece
Decouplable no
Device support to accept mounting boxes no
Duct height, min. 100 mm
Height-adjustment range, max. 175 mm
Height-adjustment range, min. 100 mm
Material Steel
Minimum screed height 40
Spare part no
Suitable for screed-flush closed underfloor ducts no
Surface Strip galvanized
Trunking height, max. 175 mm
Width 35 mm
All types

All types

Types Height-adjustment range, min. Height-adjustment range, max. Item no.
NE DSU2 10075 100 mm 175 mm 7424844
Downloads

Download

Download

EU declaration of conformity NE DSU2 10075 / 7424844 , 0.11MB , pdf
Download

Download

Download
Download

No invitation to tender text is available for this product.
