Heavy mesh cable tray SGR 55 A2

Item no. / Types

Length	3000 mm

Width

Height	55 mm

Wire diameter	6 mm

Usable cross-section

Product description

Product description

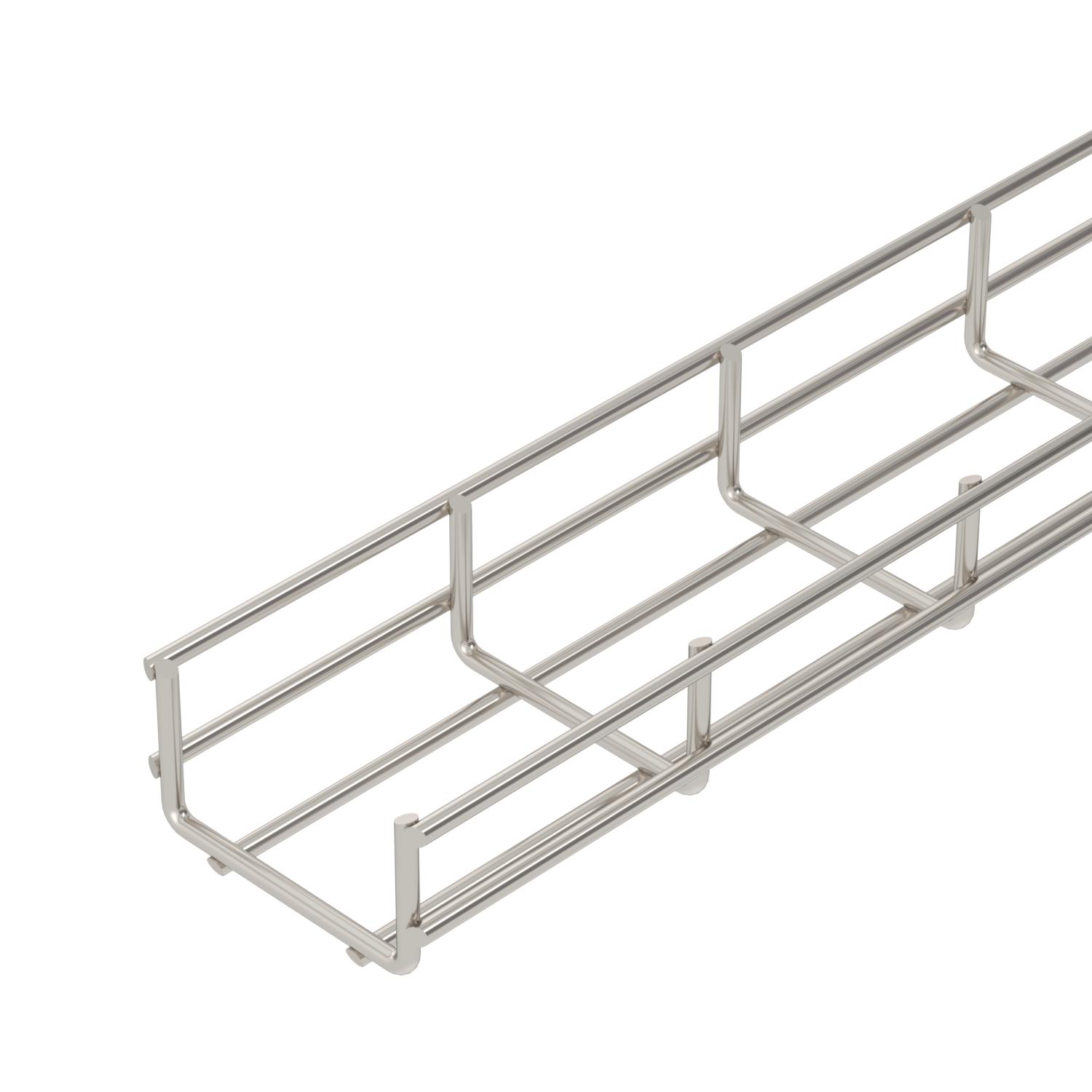

Mesh cable tray made of spot-welded steel wire of side height 55 mm.
Magnetic shield insulation without cover 15 dB, with cover 25 dB.

Technical data

CO2 Footprint (GWP) Cradle-to-Gate	8,521 kg CO2e / 1 Meter
Colour	stainless steel
Connector version	Without connectors

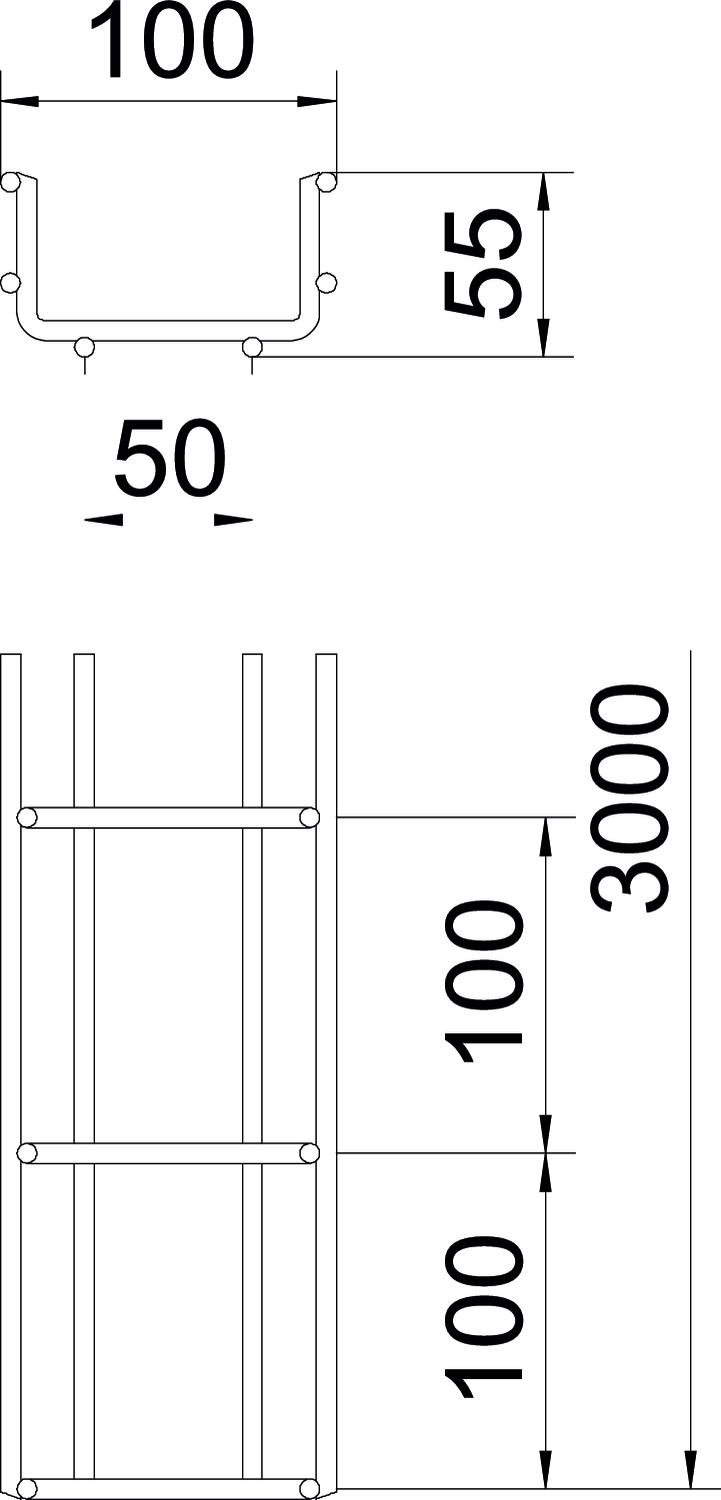

Dimension	55x100x3000
Dimension B	100 mm
Height	2,17 in
Height	55 mm
Length	3000 mm
Load test type according to IEC 61537	Type II
Material	Stainless steel
Profile shape	U-shaped

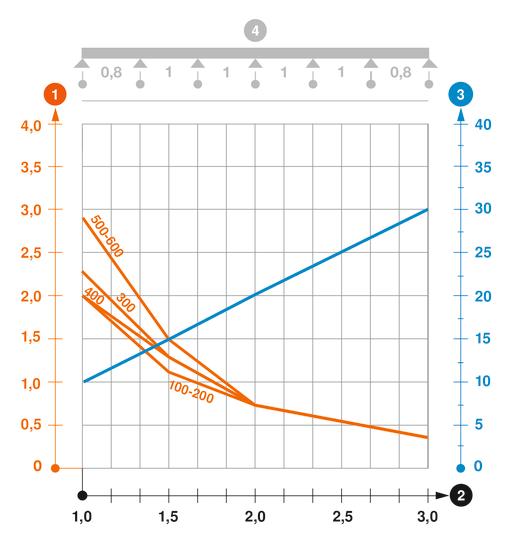

Support spacing 1.0 m	2 kN/m

Support spacing 1.5 m	1,15 kN/m
Support spacing 2.0 m	0,75 kN/m
Support spacing 2.5 m	0,5 kN/m
Support spacing 3.0 m	0,4 kN/m
Surface	Bright, treated
Type of connector, cable support system	Screwed
Usable cross-section	40 cm²
Usable cross-section	4000 mm²
Width	3,94 in
Width	100 mm
Wire diameter	6 mm

Technical data

All types

Types	Length	Width	Height	Wire diameter	Usable cross-section	Item no.
SGR 55 100 A2	3000 mm	100 mm	55 mm	6 mm	40 cm²	6000909
SGR 55 150 A2	3000 mm	150 mm	55 mm	6 mm	63 cm²	6000913
SGR 55 200 A2	3000 mm	200 mm	55 mm	6 mm	87 cm²	6000917

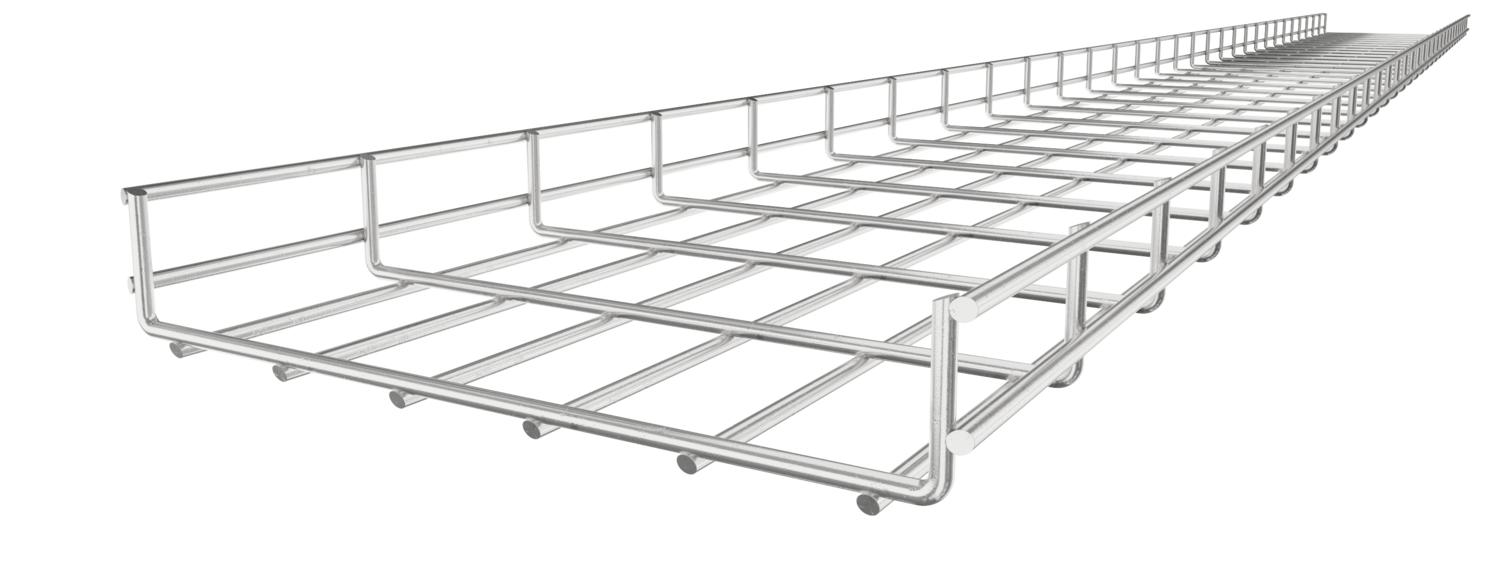

SGR 55 300 A2	3000 mm	300 mm	55 mm	6 mm	129 cm²	6000925
SGR 55 400 A2	3000 mm	400 mm	55 mm	6 mm	175 cm²	6000933
SGR 55 500 A2	3000 mm	500 mm	55 mm	6 mm	220 cm²	6000941
SGR 55 600 A2	3000 mm	600 mm	55 mm	6 mm	265 cm²	6000958
