Gutter clamp RK-FIX FT 2 x Rd 8 | 25 | 15

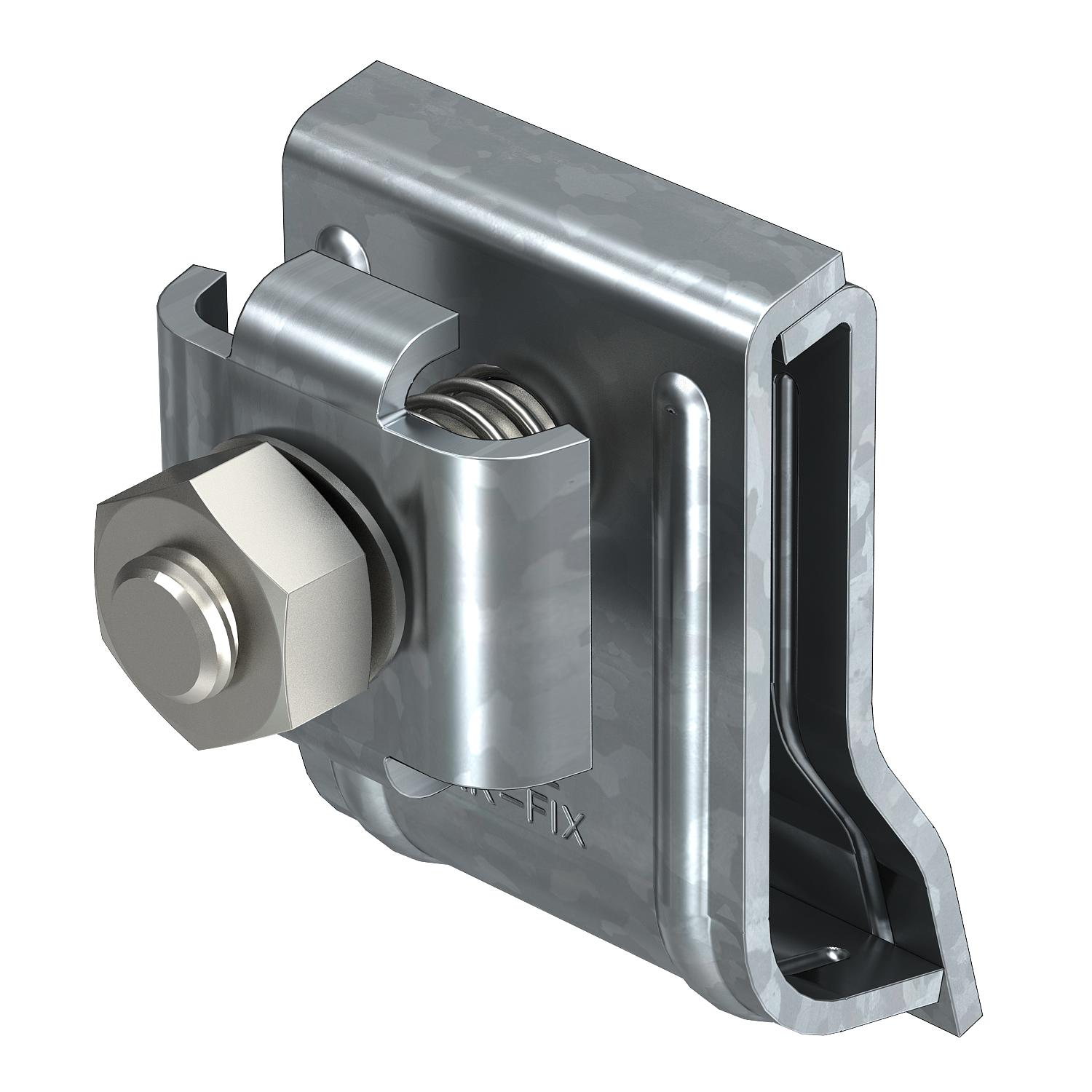

Gutter clamp RK-FIX FT

Item no. 5316450 | EAN 4012195433682

Item no. / Types	5316450 / RK-FIX

Fit	2 x Rd 8 mm

Clamping range, max.	25 mm

Clamping range, min.	15 mm

Product description

Product description

• For up to 2 round conductors Rd 6 or Rd 8
• Suitable for all bead thicknesses (15–25 mm)
• With 1 truss-head bolt M10 x 45

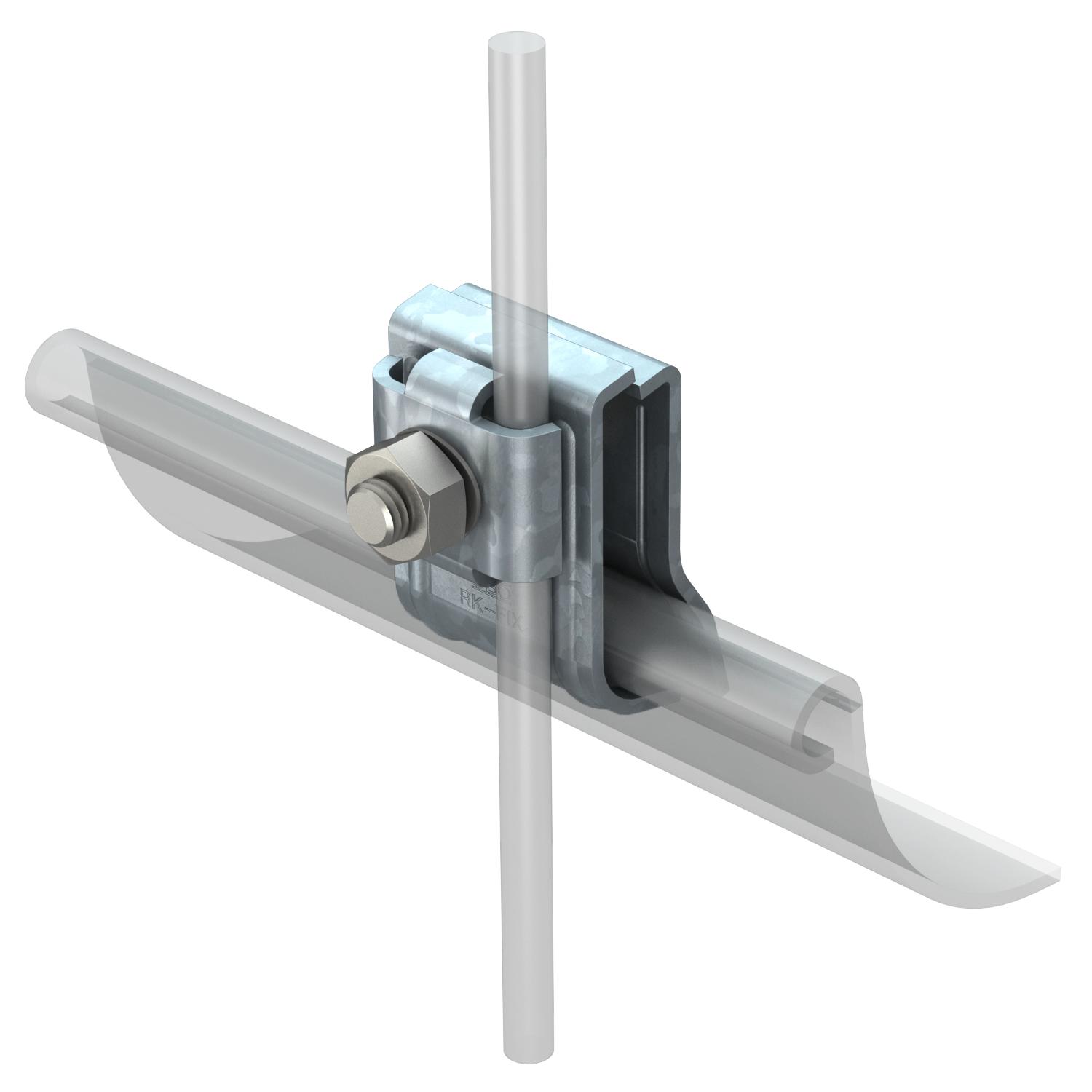

• With spring for prefixing on rain gutter
• Clamp body and crossbar made of hot-dip galvanised steel
• Nut, bolt and spring made of stainless steel (V2A)
• Tested to VDE 0185-561-1 (IEC/EN 62561-1)

Technical data

Technical data

Clamping range, max.	25 mm
Clamping range, min.	15 mm
CO2 Footprint (GWP) Cradle-to-Gate	0,6591 kg CO2e / 1 Piece
Dimension	2x8mm
Fit	2 x Rd 8 mm

Lightning current carrying capacity	H/100 kA
Material	Steel
Surface	Hot-dip galvanised
Type of connector	Roof gutter clamp
Type of fastening screw	Hexagonal bolt
