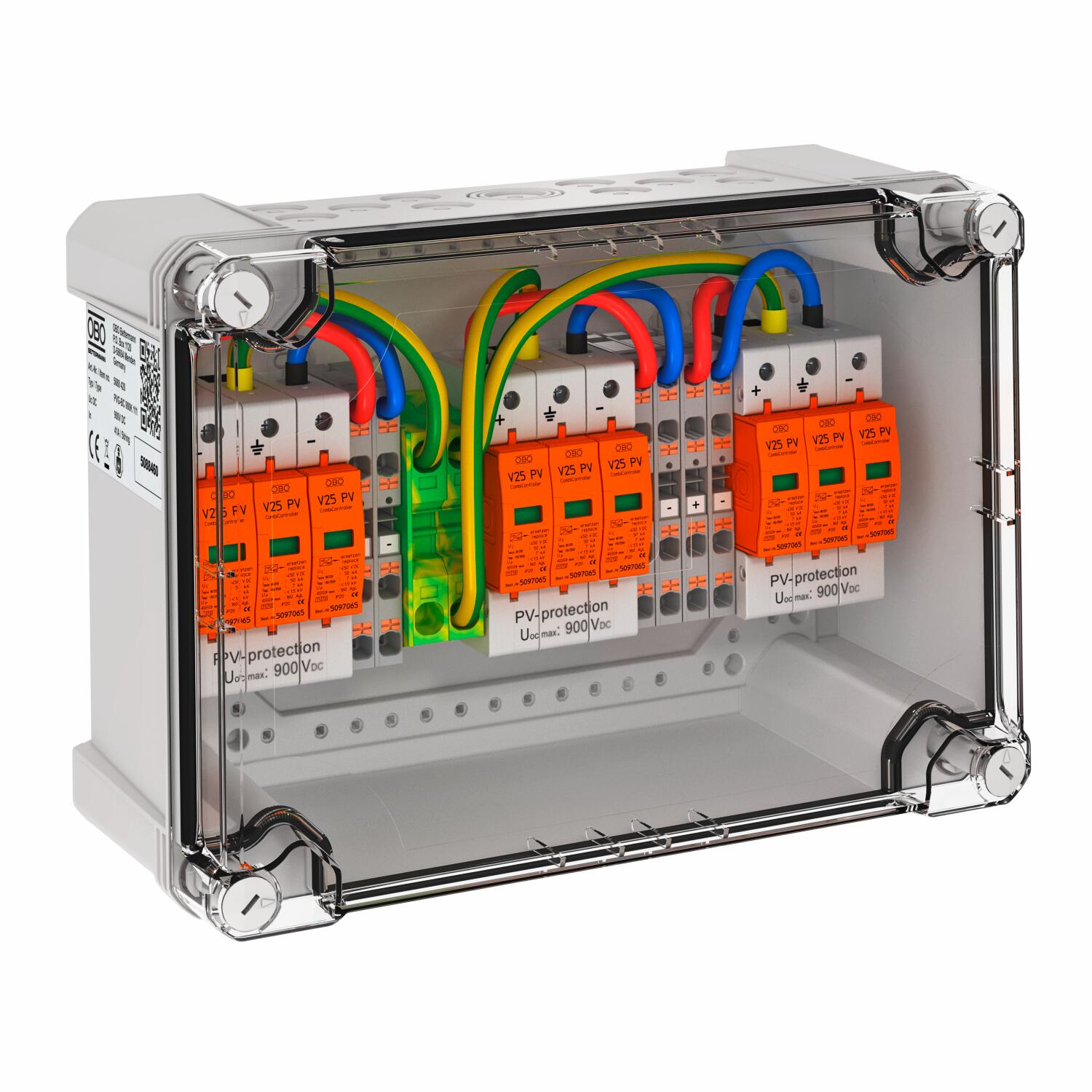

Generator connection box, type 1+2 for 3x 2 PV string IP67

Generator connection box, type 1+2 for 3x 2 PV string

Item no. 5088460 | EAN 4012197435097

Item no. / Types	5088460 / PVG-BC 900K 222

Protection rating	IP67

Product description

Product description

Generator connection box, type 1+2, for photovoltaic systems, to connect 3 x 2 string. For DC protection of the inverter.

• Varistor conductor, pluggable, with cut-off unit in error-resistant Y circuit to VDE 0100-712 (50530-12)
• Low DC protection level: < 3.0 kV (Uoc max = 900 V DC)
• 3 protection devices with 3 push-in terminals to 6 mm² pre-installed in the housing, to 41 A DC per terminal
• Polycarbonate housing (IP67), UV-resistant for the use outdoors, cable gland set and pressure balance plug included

If there is a danger of condensation forming through wind, ice, temperature or sunlight, further measures may be necessary!

Technical data

Connectivity options

Anschlussart Generatoranschlusskasten	Push-in terminal
Cable type for surge protection devices	Power cable DC (PV)
Conductor cross-section, flexible (fine-wire), max.	10 AWG
Conductor cross-section, flexible (fine-wire), max.	6 mm²
Conductor cross-section, flexible (fine-wire), min.	0,5 mm²
Conductor cross-section, flexible (fine-wire), min.	21 AWG
Conductor cross-section, rigid (single-wire/multiwire), max.	10 mm²
Conductor cross-section, rigid (single-wire/multiwire), max.	8 AWG
Conductor cross-section, rigid (single-wire/multiwire), min.	0,5 mm²
Conductor cross-section, rigid (single-wire/multiwire), min.	21 AWG
DC network form	yes

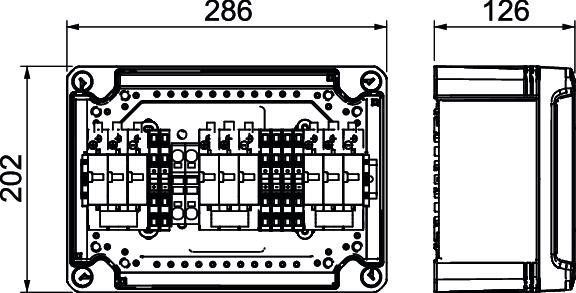

Depth	126 mm
Dimension	900V DC
Entries per MPPT	2
Equipped with load-break switch	no
Exits per MPPT	1
Height	202 mm
Housing material surge protection components	PC
Installation type	Pre-mounted in the housing
Lightning protection zone LPZ	0→2
Lightning surge current (10/350 μs)	7 kA
Max. Input current per string	41 A
Max. Input voltage DC	900 V
Max. Output current	41 A
Maximum continuous voltage DC	900 V

Maximum discharge current (8/20 μs)	50 kA
Monitoring function	no
Network form	DC
Nominal discharge current (8/20 µs)	30 kA
Number of cable entries	19
Number of inputs	2
Number of MPPTs	3
Number of string inputs	2
Operating temperature, max.	60 °C
Operating temperature, min.	-25 °C
Permitted temperature range, max.	65 °C
Permitted temperature range, min.	-25 °C
Protection rating	IP67
Protection rating IK code	IK08
Response time	<25 ns
Signalling on device	Visual
SPD to EN 61643-11	Type 1+2
SPD to IEC 61643-1	Class II
String fuse	Without
Test class, type 1	yes
Test class, type 2	yes
Test class, type 3	no
Type of entry	Gland
Version for	For 3 MPPT and with push-in terminal
Width	286 mm
