Generator connection box, type 1 + 2, for 3 x 1 string
Item no. 5088420 | EAN 4012197365103
- Product description
-

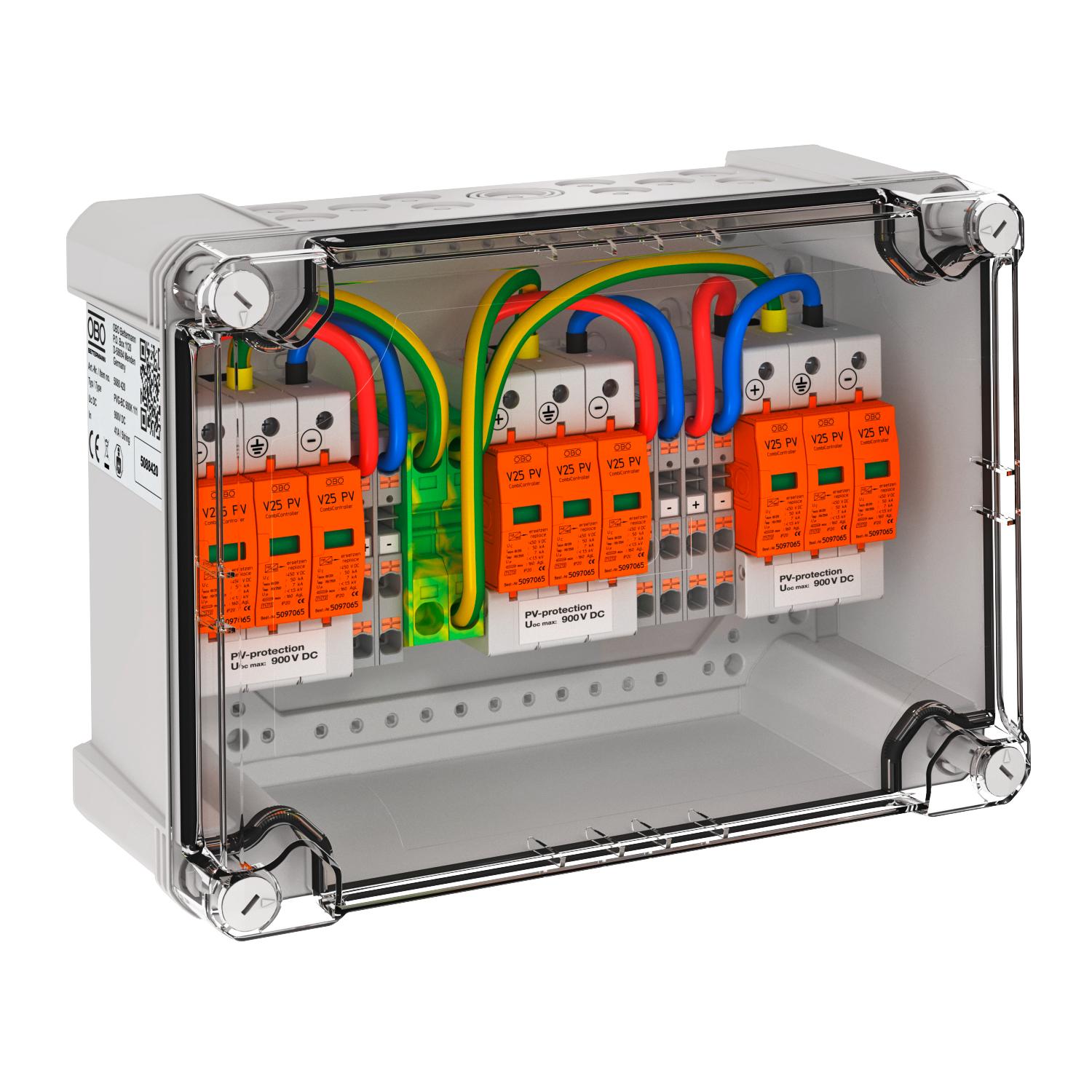

Product descriptionGenerator connection box, type 1 + 2, for photovoltaic systems, to connect 3 x 1 string. For DC protection of the inverter.
• Varistor arrester, plug-in, with separation device in error-resistant Y circuit according to VDE 0100-712 (50539-12)
• Low DC protection level: < 3.0 kV (Uoc max = 900 V DC)
• 3 protection devices with 2 push-in terminals each of up to 6 mm² pre-installed in the housing, up to 41 A DC per terminal
• Polycarbonate housing (IP67), UV-resistant for exterior use, incl. cable gland set and pressure compensation element
Additional measures may be required if there is the risk of condensation formation through wind, ice, temperature or sun!
-
- Technical data
-
Connectivity options

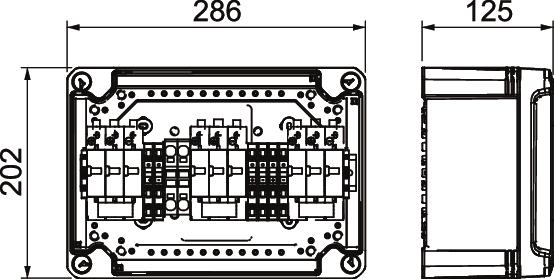

Anschlussart Generatoranschlusskasten Push-in terminal Cable type for surge protection devices Power cable DC (PV) CO2 Footprint (GWP) Cradle-to-Gate 8,6202 kg CO2e / 1 Piece Colour Light grey; RAL 7035 Conductor cross-section, flexible (fine-wire), max. 10 AWG Conductor cross-section, flexible (fine-wire), max. 6 mm² Conductor cross-section, flexible (fine-wire), min. 0,5 mm² Conductor cross-section, flexible (fine-wire), min. 21 AWG Conductor cross-section, rigid (single-wire/multiwire), max. 8 AWG Conductor cross-section, rigid (single-wire/multiwire), max. 10 mm² Conductor cross-section, rigid (single-wire/multiwire), min. 0,5 mm² Conductor cross-section, rigid (single-wire/multiwire), min. 21 AWG DC network form yes Depth 125 mm Dimension 900V DC Entries per MPPT 1 Equipped with load-break switch no Exits per MPPT 1 Height 202 mm Housing material surge protection components PC Installation type Pre-mounted in the housing Lightning protection zone LPZ 0→2 Lightning surge current (10/350 μs) 7 kA Max. Input current per string 41 A Max. Input voltage DC 900 V Max. Output current 41 A Maximum continuous voltage DC 900 V Maximum discharge current (8/20 μs) 50 kA Monitoring function no Network form DC Nominal discharge current (8/20 µs) 30 kA Number of cable entries 12 Number of inputs 1 Number of MPPTs 3 Number of string inputs 1 Operating temperature, max. 60 °C Operating temperature, min. -25 °C Permitted temperature range, max. 65 °C Permitted temperature range, min. -25 °C Protection rating IP67 Protection rating IK code IK08 Response time <25 ns Signalling on device Visual SPD to EN 61643-11 Type 1+2 SPD to IEC 61643-1 Class II String fuse Without Test class, type 1 yes Test class, type 2 yes Test class, type 3 no Type of entry Gland Version for For 3 MPPT and with push-in terminal Width 286 mm - All types
-
