Generator connection box, type 1+2, for 2x 3 string, combination arrester IP67

Generator connection box, type 1+2, for 2x 3 string, combination arrester

Item no. 5088462 | EAN 4012197426002

Item no. / Types	5088462 / PVG-BC1500M110

Protection rating	IP67

Product description

Product description

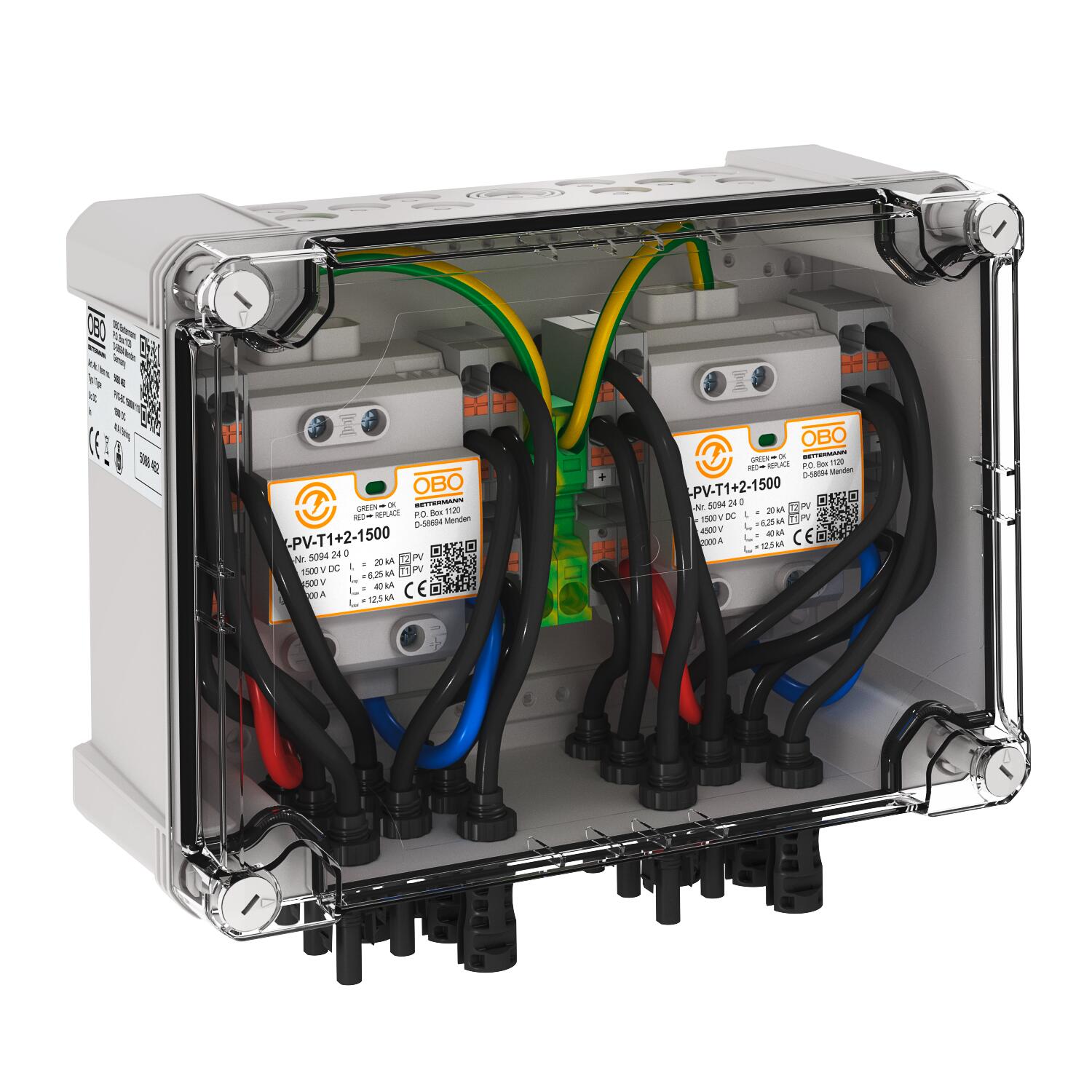

Generator connection box, type 1+2, with original MC4-Evo 2 connectors to connect 2x 3 string. For DC protection of the inverter.

• Type 1+2 combination arrester for lightning protection equipotential bonding to EN 62305 (VDE 0185-305)
• Surge protection according to IEC 60364-7-712 (VDE 0100-712)
• Low DC protection level: < 4.5 kV (Uoc max = 1,500 V DC)
• 2 protection devices with three PV string entries each (MC4-Evo 2 connectors) and 1 PV string exit (MC4-Evo 2 connector) pre-installed, up to 57 A DC per terminal
• Polycarbonate housing (IP67, IK08), UV-resistant for the use outside, including cable gland and pressure balance plug

If there is a danger of condensation forming through wind, ice, temperature or sunlight, further measures may be necessary!

Technical data

Connectivity options

Anschlussart Generatoranschlusskasten	MC4-Evo 2
Arrester surge current (8/20 µs) [total]	40 kA
Cable type for surge protection devices	Power cable DC (PV)
Conductor cross-section, flexible (fine-wire), max.	10 AWG
Conductor cross-section, flexible (fine-wire), max.	6 mm²
Conductor cross-section, flexible (fine-wire), min.	0,5 mm²
Conductor cross-section, flexible (fine-wire), min.	21 AWG
Conductor cross-section, rigid (single-wire/multiwire), max.	8 AWG
Conductor cross-section, rigid (single-wire/multiwire), max.	10 mm²
Conductor cross-section, rigid (single-wire/multiwire), min.	0,5 mm²
Conductor cross-section, rigid (single-wire/multiwire), min.	21 AWG
DC network form	yes

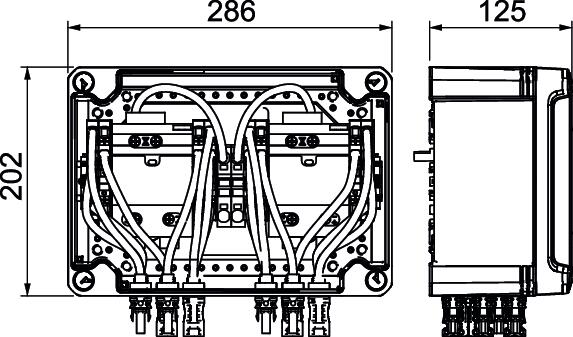

Depth	125 mm
Dimension	1500V DC
Entries per MPPT	3
Equipped with load-break switch	no
Exits per MPPT	1
Height	202 mm
Housing material surge protection components	PC
Installation type	Pre-mounted in the housing
Lightning protection zone LPZ	0→2
Lightning surge current (10/350 μs)	6,25 kA
Lightning surge current (10/350)	12,5 kA
Max. Input current per string	57 A
Max. Input voltage DC	1500 V
Max. Output current	57 A
Maximum continuous voltage DC	1500 V

Maximum discharge current (8/20 μs)	40 kA
Monitoring function	no
Network form	DC
Nominal discharge current (8/20 µs)	30 kA
Number of cable entries	1
Number of inputs	3
Number of MPPTs	2
Number of string inputs	3
OBO_Nominal load current (input/output terminal)	50 A
Operating temperature, max.	65 °C
Operating temperature, min.	-25 °C
Permitted temperature range, max.	65 °C
Permitted temperature range, min.	-25 °C
Pole version	Other
Protection rating	IP67
Protection rating IK code	IK08
Response time	<25 ns
Signalling on device	Visual
SPD to EN 61643-11	Type 1+2
SPD to IEC 61643-1	Class II
String fuse	Without
Test class, type 1	yes
Test class, type 2	yes
Test class, type 3	no
Type of entry	Gland
Version for	Y configuration
Width	286 mm
