Generator connection box, type 1 + 2, for 2 x 1 string IP67

Generator connection box, type 1 + 2, for 2 x 1 string

Item no. 5088410 | EAN 4012197365028

Item no. / Types	5088410 / PVG-BC 900K 110

Protection rating	IP67

Product description

Product description

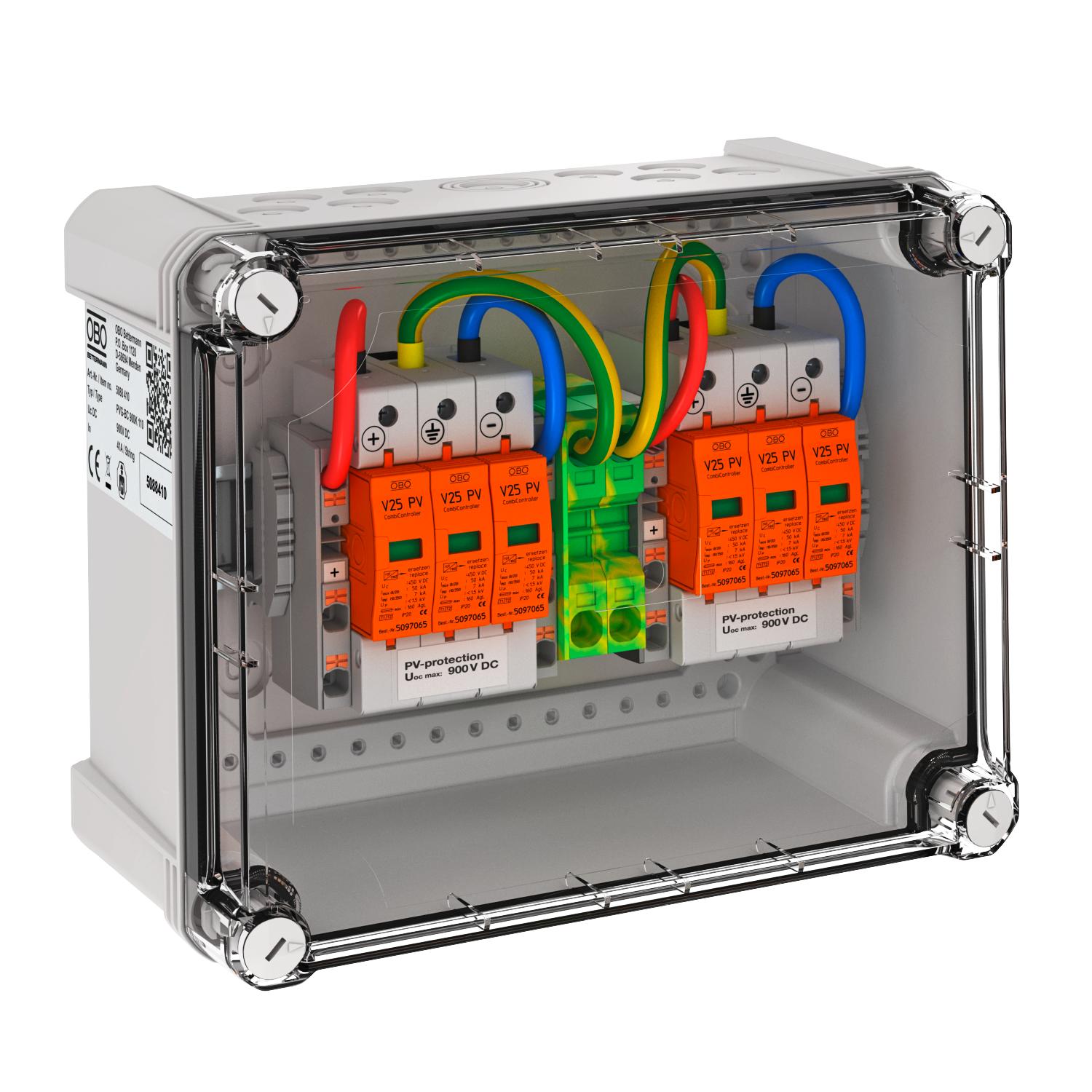

Generator connection box, type 1 + 2, for photovoltaic systems, to connect 2 x 1 string. For DC protection of the inverter.

• Varistor arrester, plug-in, with separation device in error-resistant Y circuit according to VDE 0100-712 (50539-12)

• Low DC protection level: < 3.0 kV (Uoc max = 900 V DC)

• 2 protection devices with 2 push-in terminals each of up to 6 mm² pre-installed in the housing, up to 41 A DC per terminal

• Polycarbonate housing (IP67), UV-resistant for exterior use, incl. cable gland set and pressure compensation element

Additional measures may be required if there is the risk of condensation formation through wind, ice, temperature or sun!

Technical data

Connectivity options

Anschlussart Generatoranschlusskasten	Push-in terminal
Cable type for surge protection devices	Power cable DC (PV)
CO2 Footprint (GWP) Cradle-to-Gate	6,1019 kg CO2e / 1 Piece
Colour	Light grey; RAL 7035
Conductor cross-section, flexible (fine-wire), max.	10 AWG
Conductor cross-section, flexible (fine-wire), max.	6 mm²
Conductor cross-section, flexible (fine-wire), min.	21 AWG
Conductor cross-section, flexible (fine-wire), min.	0,5 mm²
Conductor cross-section, rigid (single-wire/multiwire), max.	8 AWG
Conductor cross-section, rigid (single-wire/multiwire), max.	10 mm²
Conductor cross-section, rigid (single-wire/multiwire), min.	21 AWG
Conductor cross-section, rigid (single-wire/multiwire), min.	0,5 mm²
DC network form	yes

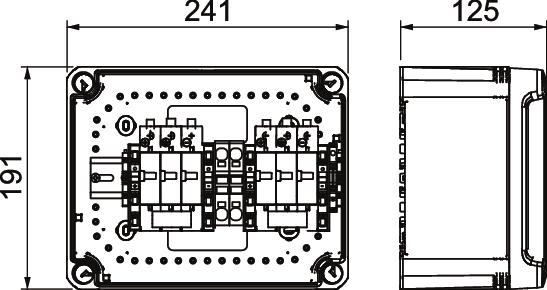

Depth	125 mm
Dimension	900V DC
Entries per MPPT	1
Equipped with load-break switch	no
Exits per MPPT	1
Height	191 mm
Housing material surge protection components	PC
Installation type	Pre-mounted in the housing
Lightning protection zone LPZ	0→2
Lightning surge current (10/350 μs)	7 kA
Max. Input current per string	41 A
Max. Input voltage DC	900 V
Max. Output current	41 A

Maximum continuous voltage DC	900 V
Maximum discharge current (8/20 μs)	50 kA
Monitoring function	no
Network form	DC
Nominal discharge current (8/20 µs)	30 kA
Number of cable entries	8
Number of inputs	1
Number of MPPTs	2
Number of string inputs	1
Operating temperature, max.	60 °C
Operating temperature, min.	-25 °C
Permitted temperature range, max.	65 °C
Permitted temperature range, min.	-25 °C
Protection rating	IP67
Protection rating IK code	IK08
Response time	<25 ns
Signalling on device	Visual
SPD to EN 61643-11	Type 1+2
SPD to IEC 61643-1	Class II
String fuse	Without
Test class, type 1	yes
Test class, type 2	yes
Test class, type 3	no
Type of entry	Gland
Version for	For 2 MPPT and with push-in terminal
Width	240 mm
