Fuse holder for FireBox T series Screw connection

morepic-1

morepic-2

morepic-3

Fuse holder for FireBox T series

Item no. 7205570 | EAN 4012195993162

Item no. / Types	7205570 / TE-FH 520

Connection type	Screw connection

Product description

Product description

Fuse holder with bayonet lock for fine-wire fuse for dimensions Ø 5 x 20 mm. Connection wires that maintain electrical functionality with nominal cross-section 2.5 mm², ready-stripped. For mounting on one of the exposed domes in the junction box of the FireBox T series using the supplied screw.

Technical data

Technical data

CO2 Footprint (GWP) Cradle-to-Gate	0,0784 kg CO2e / 1 Piece
Colour	Cream
Connection type	Screw connection

Dimensions of the fine-wire fuse	5 x 20 mm
Maintain electrical functions	yes
Material	Steatit

All types

All types

Types	Connection type	Item no.
TE-FH 520	Screw connection	7205570

Downloads

Data sheet TE-FH 520 / 7205570 , 0.17MB , pdf

Guide Fire protection in electrical engineering – A guide to fireproof building installations , 2.10MB , pdf

Brochure False ceiling installations , 2.70MB , pdf

Catalogue Safety and protection installations – fire-tested routing systems , 19.95MB , pdf

REACH Declaration of conformity TE-FH 520 / 7205570 , 0.12MB , pdf

Download

RoHS Declaration of conformity TE-FH 520 / 7205570 , 0.12MB , pdf

Download

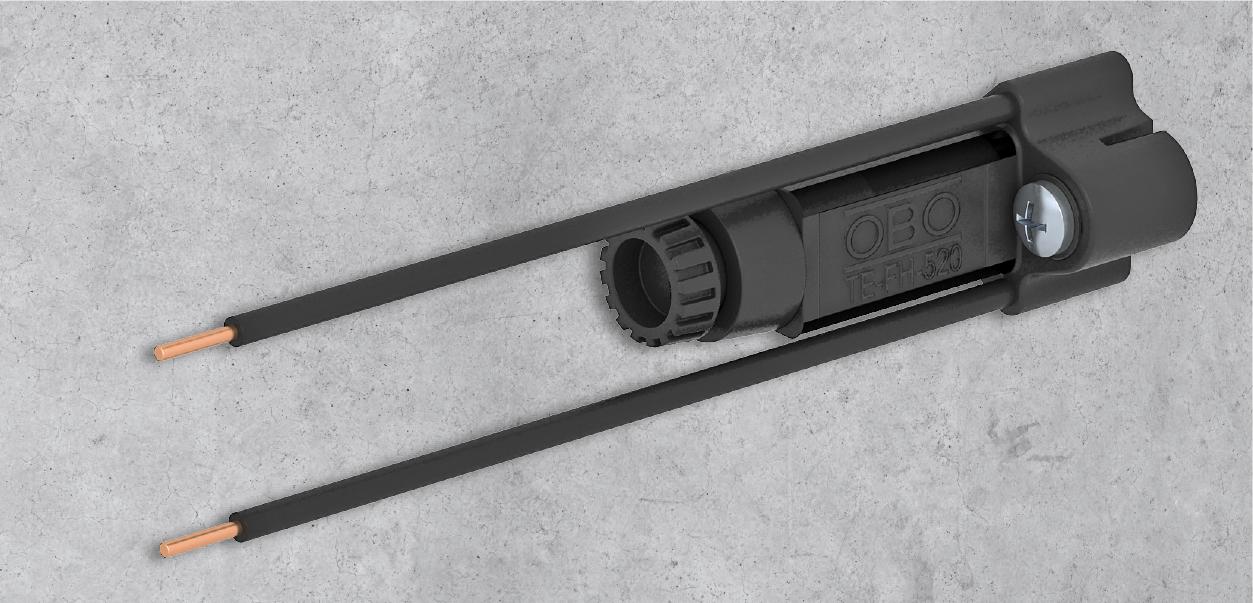

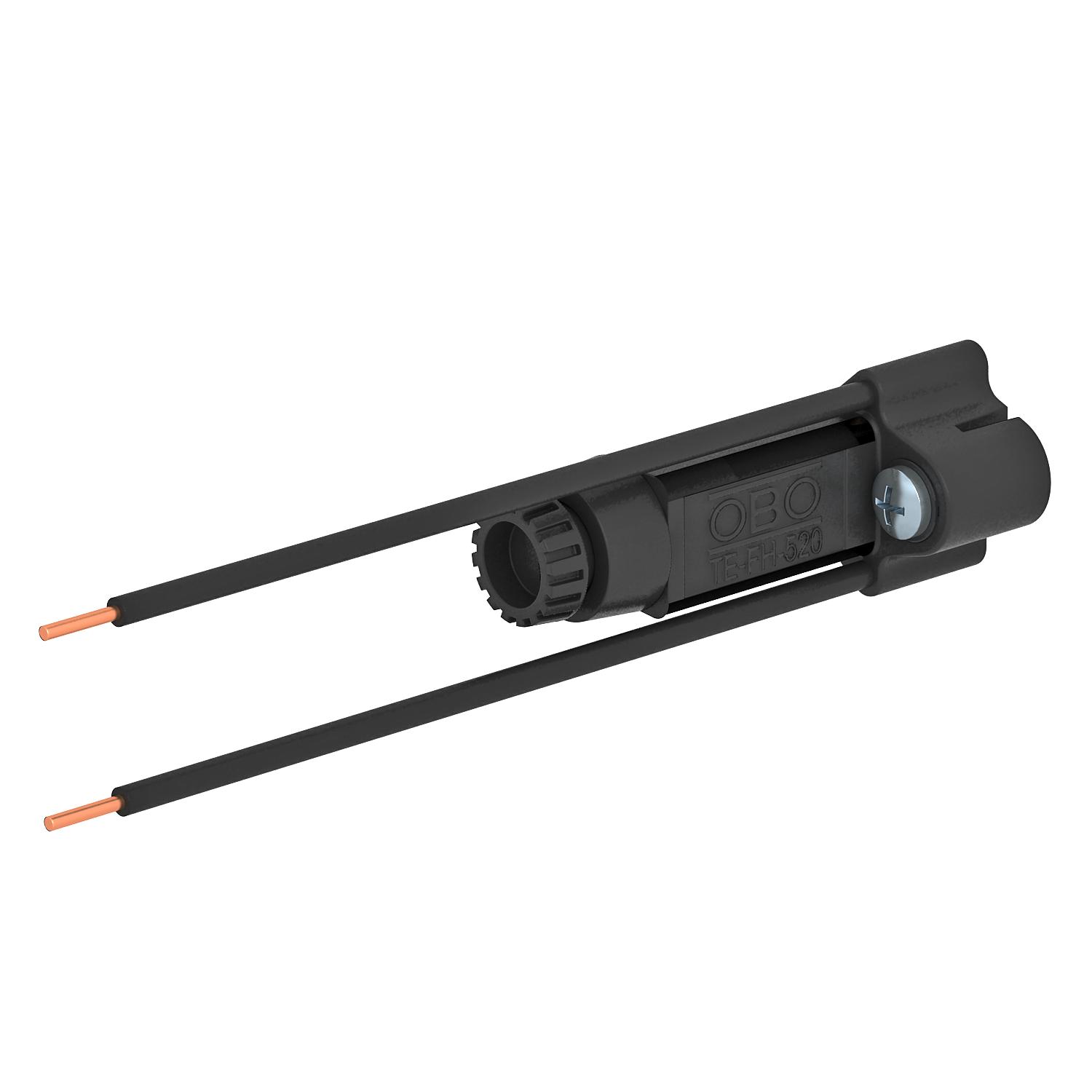

Product graphic TE-FH 520 / 7205570, 53.20 kB, jpg

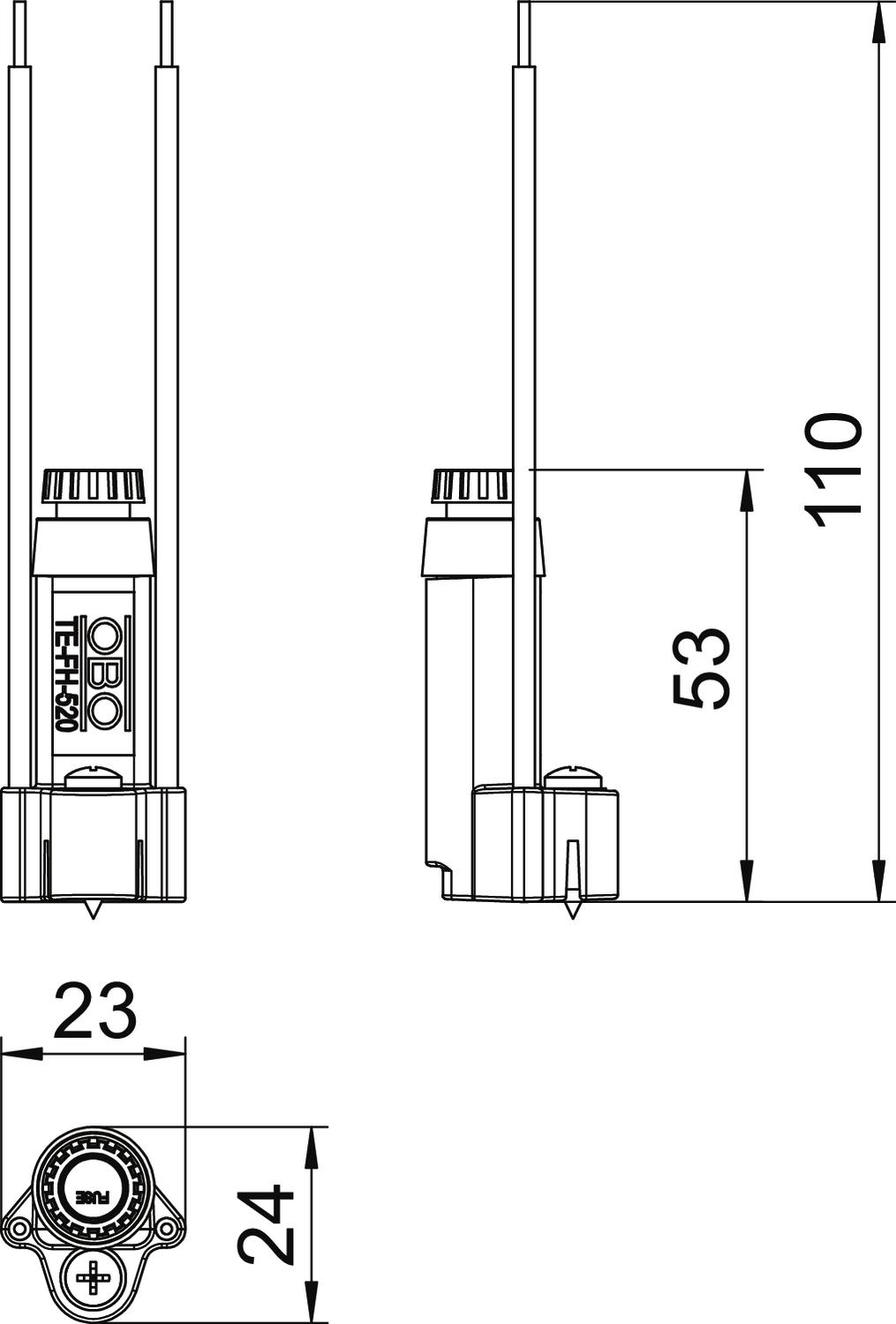

Scale drawing TE-FH 520 / 7205570, 74.52 kB, jpg

No invitation to tender text is available for this product.
