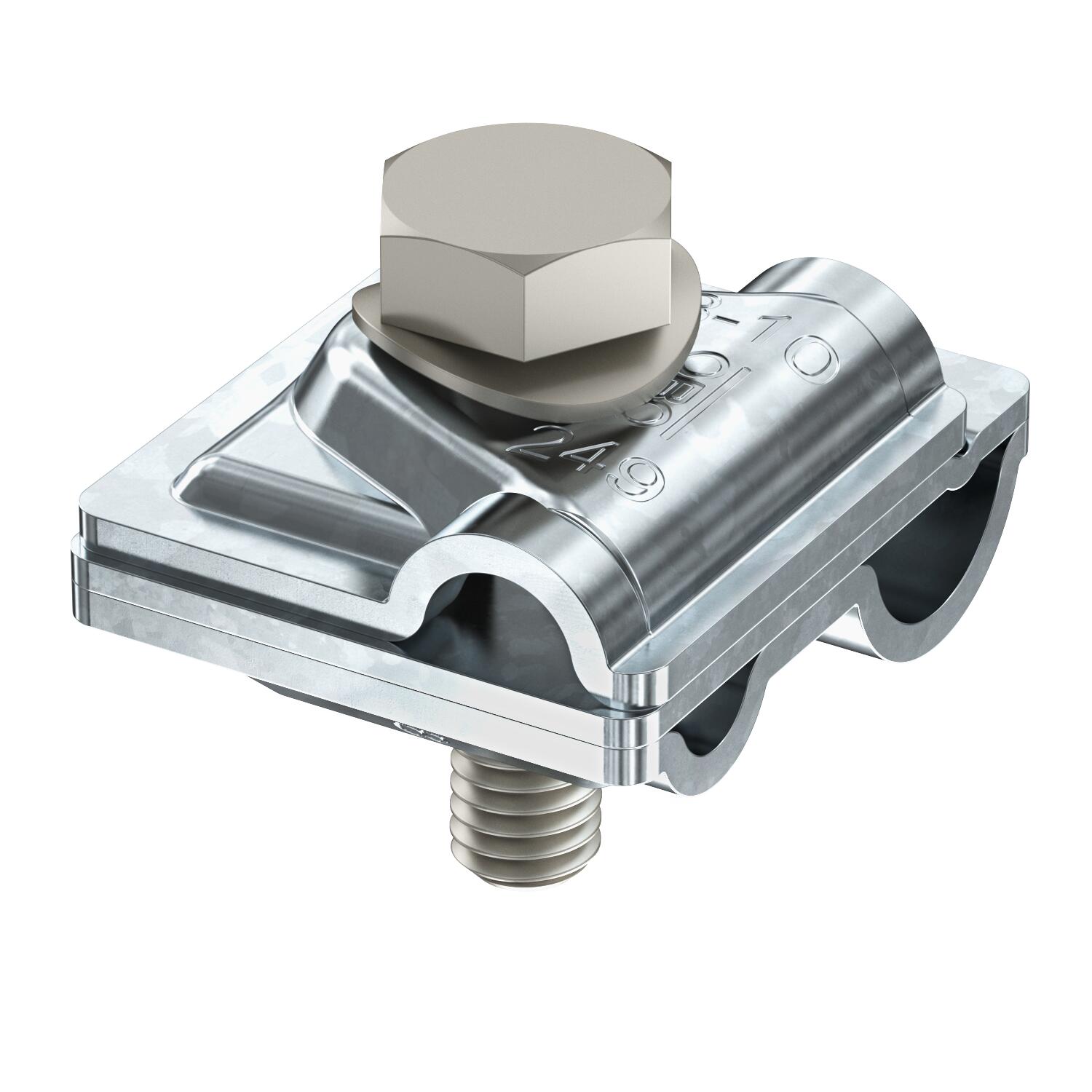

FT Vario quick connector
Item no. 5311441 | EAN 4012197405410
- Product description
-

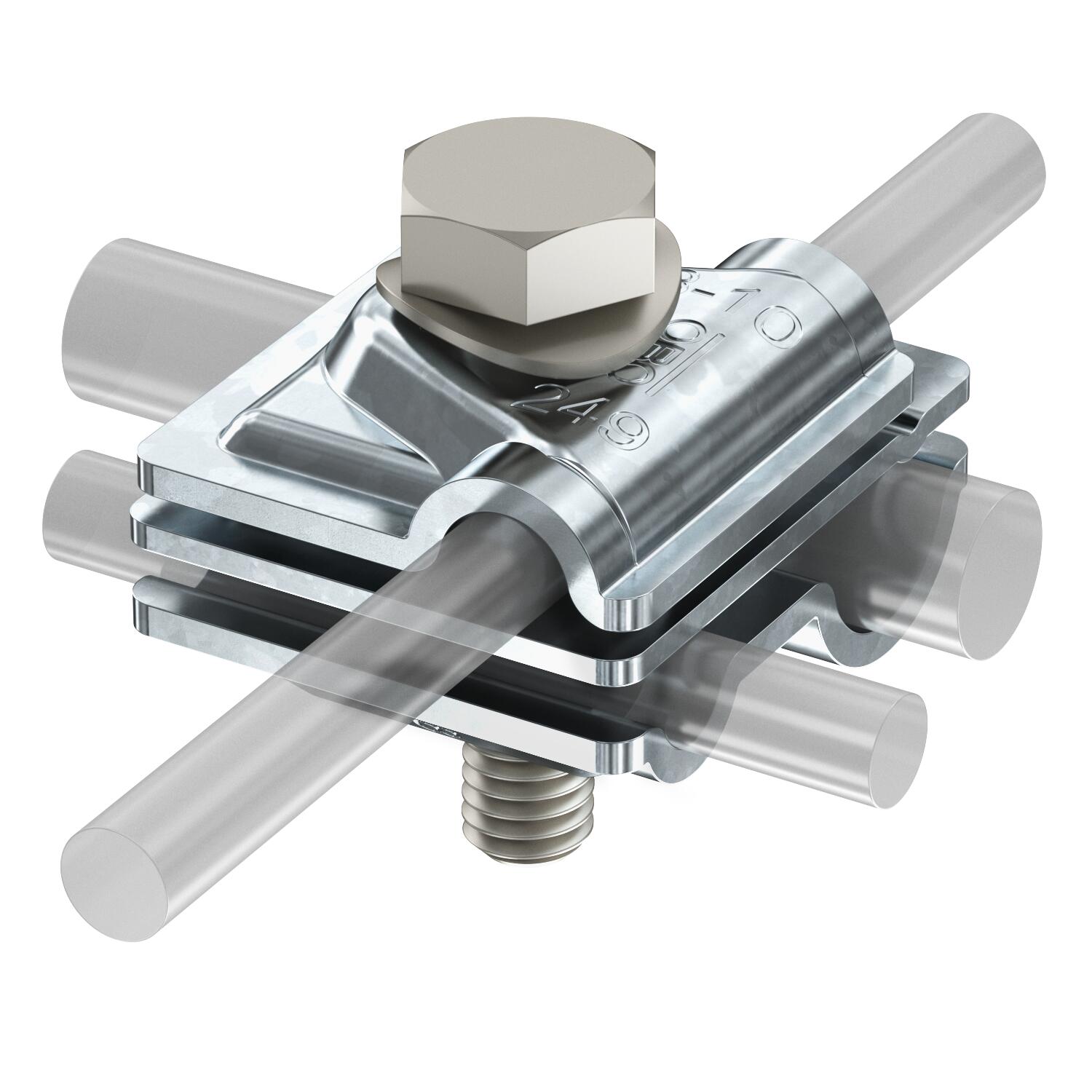

Product descriptionQuick connector to create T, cross and parallel connections. Mounting with stainless steel M10 x 40 screws. Suitable for reinforced steels Ø 6–16 mm and flat conductors Ø 8–10 mm. Conforms to the requirements according to DIN VDE 0185-305 (IEC 62305).
-
- Technical data
-
Technical data

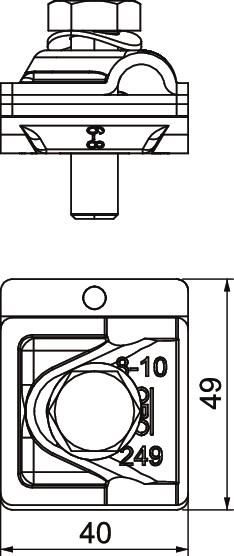

CO2 Footprint (GWP) Cradle-to-Gate 0,5711 kg CO2e / 1 Piece Dimension A 40 mm Dimension B 49 mm Fit Rd 8-10 / Ø 6-16 mm Intermediate plate yes Material Steel Round conductor diameter, conductor 1, max. 10 mm Round conductor diameter, conductor 1, min. 8 mm Round conductor diameter, conductor 2, max. 16 mm Round conductor diameter, conductor 2, min. 6 mm Suitable for connection Round conductor Rd 8-10 /Reinforcing steel ø 6-16 Surface Hot-dip galvanised Type of connector Multipurpose connection clamp Type of fastening screw Hexagonal bolt - All types
- Downloads
-
Data sheet 249 6-16 ST / 5311441 , 0.17MB , pdfREACH Declaration of conformity 249 6-16 ST / 5311441 , 0.12MB , pdfRoHS Declaration of conformity 249 6-16 ST / 5311441 , 0.13MB , pdfMounting instructions Vario quick connector 249 6-16 ST , 0.76MB , pdf
