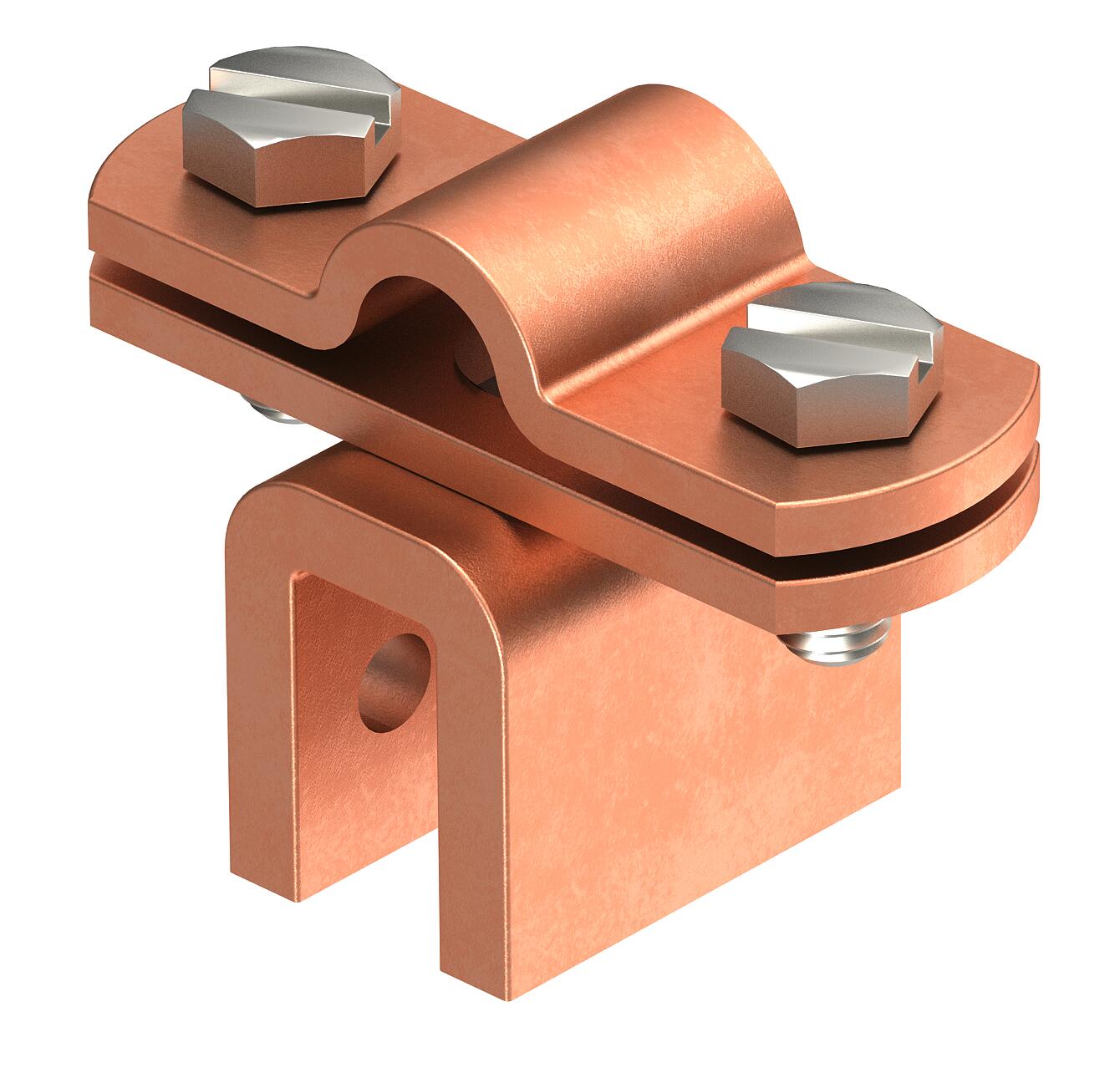

Folding clamp Rd 8-10 up to 10 mm plate thickness Cu
Item no. 5317258 | EAN 4012195420675
- Product description
-
Product description• Metal thickness to 10 mm

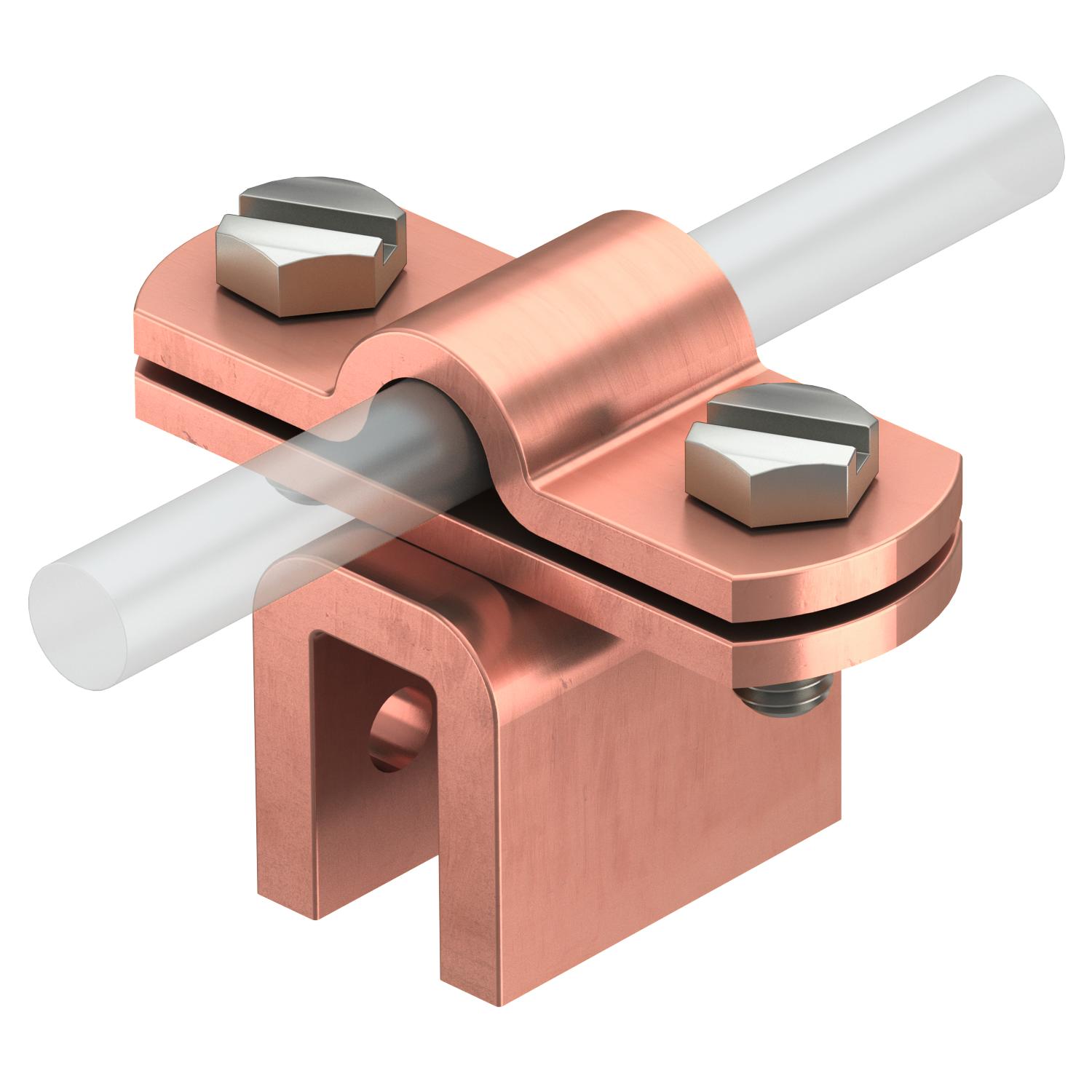

• For conductor routing transverse and in parallel to the plate
• Corresponds to the requirements to DIN V VDE V 0185-3 section 4.5
-
- Technical data
-
Technical data
Clamping range, max. 10 mm CO2 Footprint (GWP) Cradle-to-Gate 0,5639 kg CO2e / 1 Piece Dimension 8/10mm Fit Rd 8-10 mm Lightning current carrying capacity H/100 kA Material Copper Type of connector Folding clamp Type of fastening screw Hexagonal bolt - All types
- Downloads
-
Data sheet 270 8-10 CU / 5317258 , 0.18MB , pdfEU declaration of conformity 270 8-10 CU / 5317258 , 0.06MB , pdfREACH Declaration of conformity 270 8-10 CU / 5317258 , 0.12MB , pdfRoHS Declaration of conformity 270 8-10 CU / 5317258 , 0.13MB , pdf
