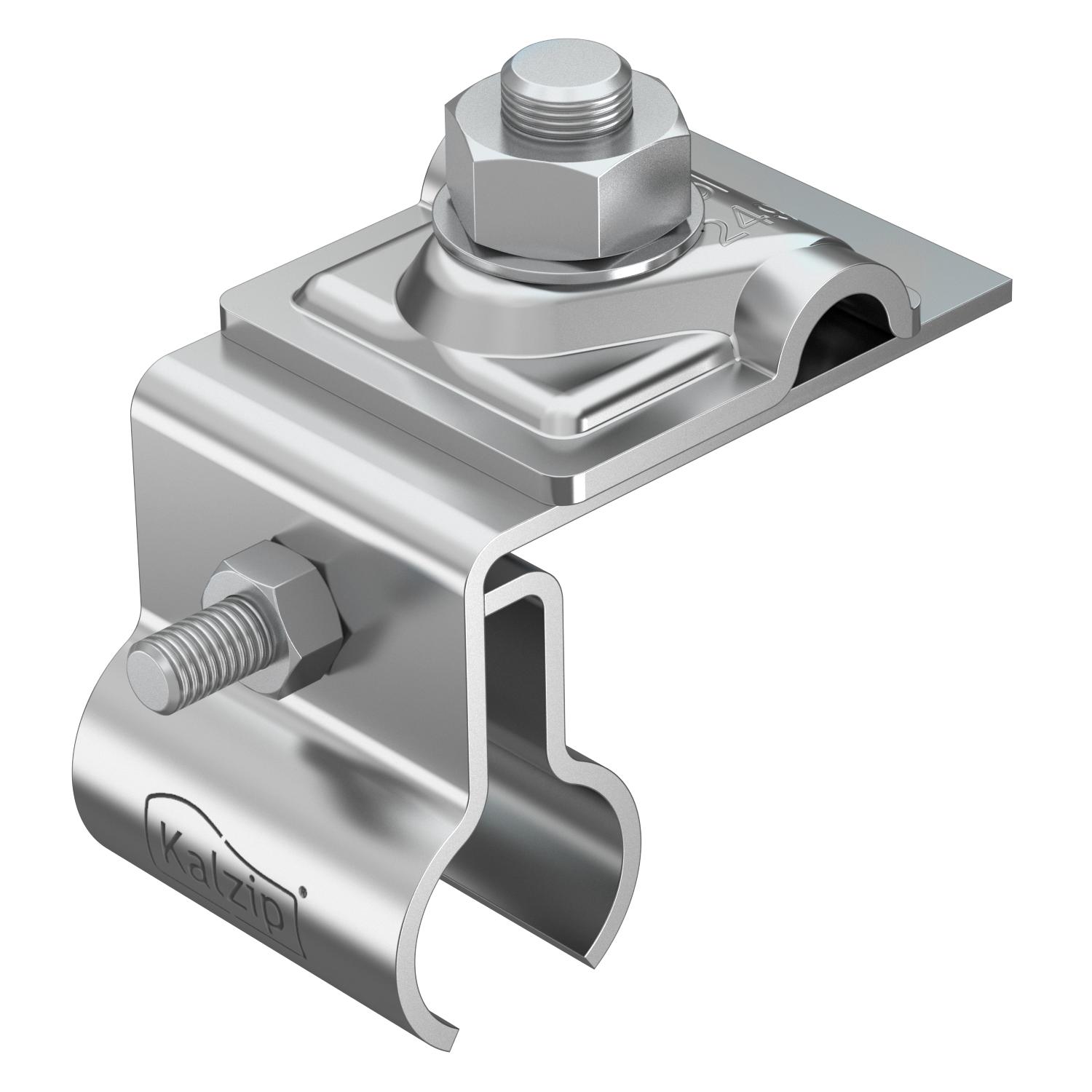

Folding and construction clamp
Item no. 5317502 | EAN 4012196622368
- Product description
-
Product description• For round standing seam systems, fixed cable routing
• Manufacturer release by Kalzip
• Tested according to VDE 0185-561-1 (IEC/EN 62561-1)
-
- Technical data
-
Technical data
Clamping range, max. 10 mm CO2 Footprint (GWP) Cradle-to-Gate 1,3894 kg CO2e / 1 Piece Dimension 8-10mm Fit Rd 8-10 mm Lightning current carrying capacity N/50 kA Material Stainless steel Type of connector Folding clamp Type of fastening screw Hexagonal bolt - All types
- Downloads
-
Data sheet RSF 249 8-10 VA / 5317502 , 0.15MB , pdfEU declaration of conformity RSF 249 8-10 VA / 5317502 , 0.06MB , pdf
