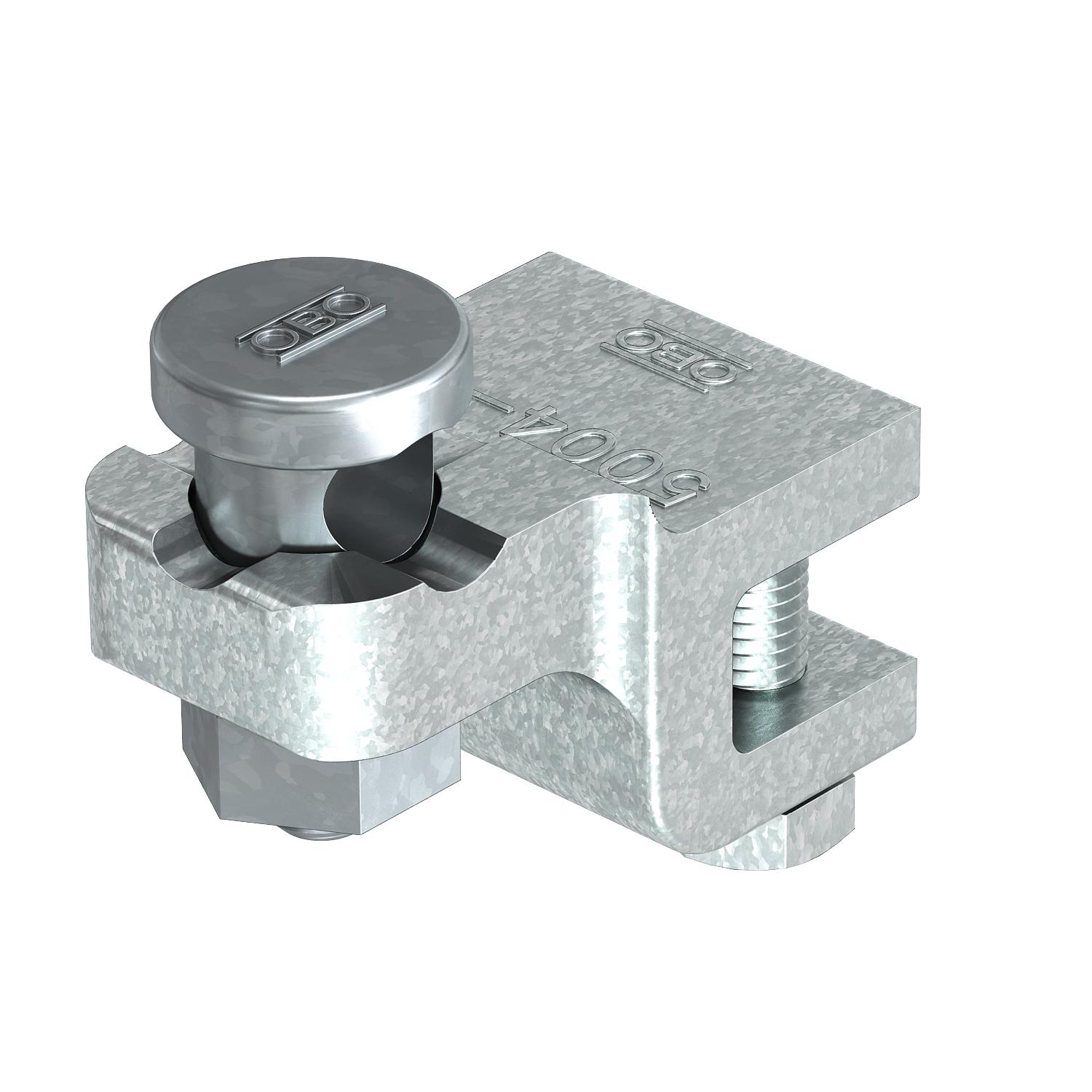

Folding and construction clamp, 10−20 mm
Item no. 5304407 | EAN 4012195416357
- Product description
-
Product description• Flange thickness to 12 or 10−20 mm
• With pre-mounted fix contact clamping screw 5000
• 2 hexagonal bolts M8 x 20, bolts made of hot galvanised steel
• Terminal block made of malleable iron, hot galvanised

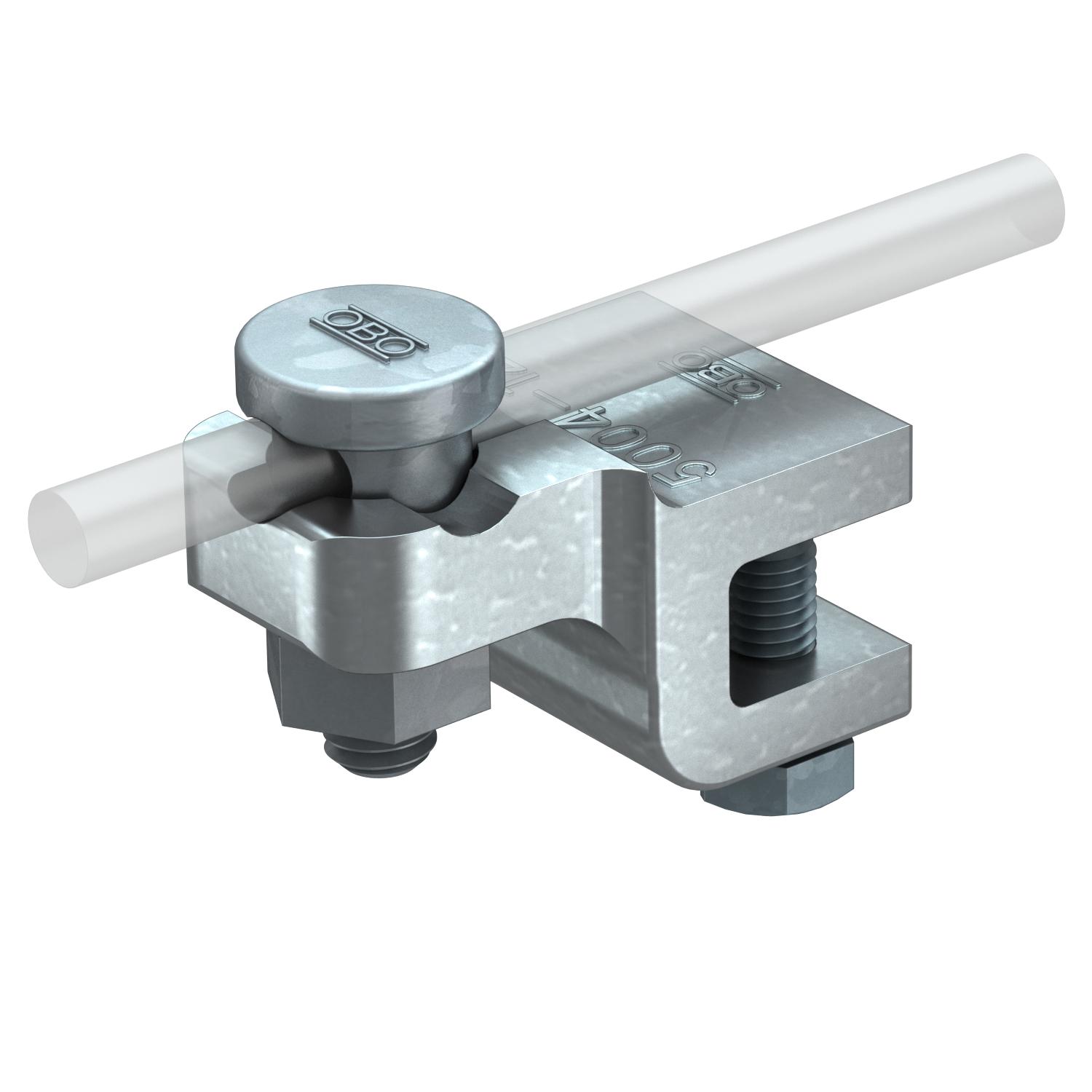

• Mounting of the round conductors either vertical or transverse to structure
• Corresponds to the requirements of DIN VDE 0185-305-3
-
- Technical data
-
Technical data

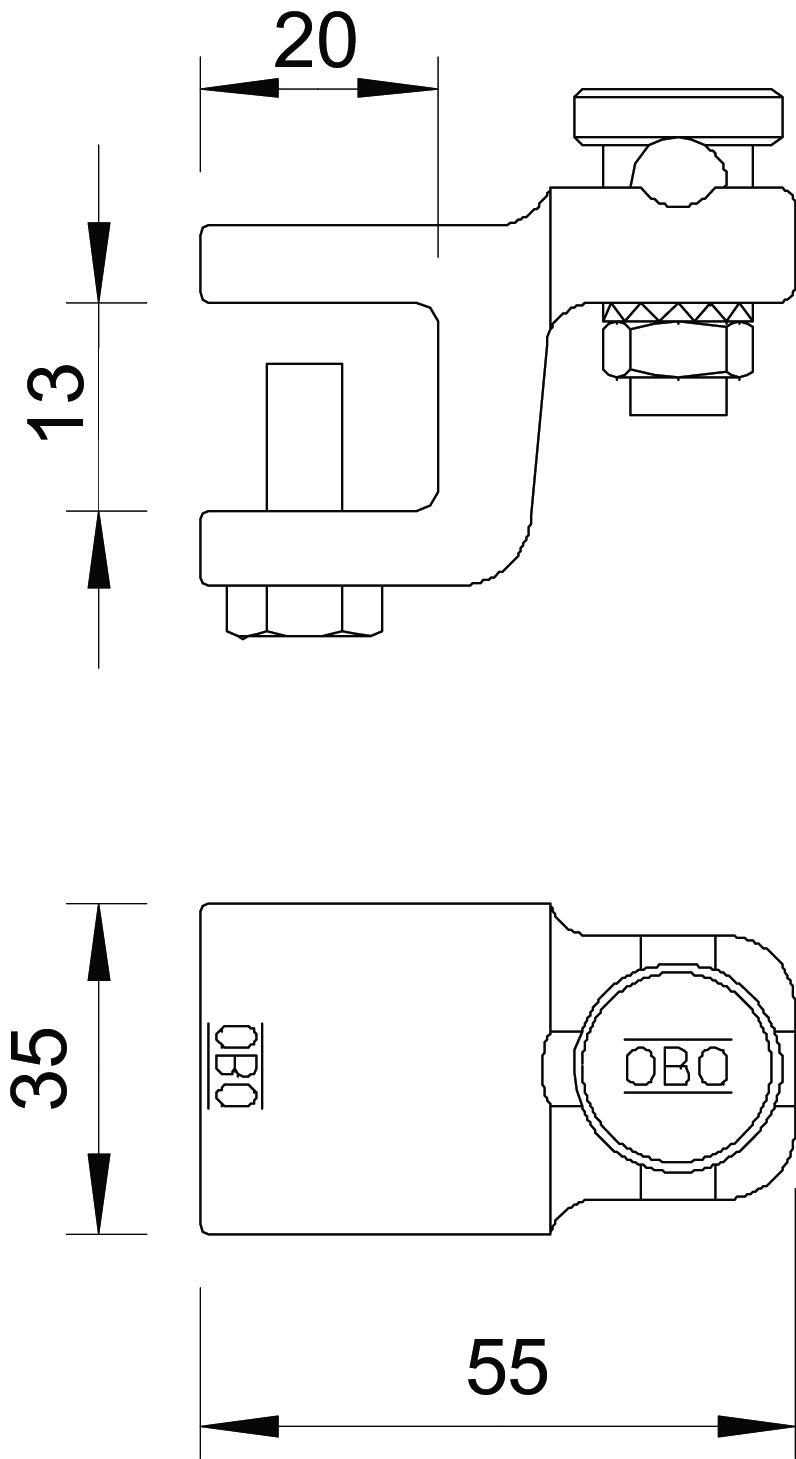

Clamping range, max. 12 mm CO2 Footprint (GWP) Cradle-to-Gate 0,5329 kg CO2e / 1 Piece Dimension 12mm Dimension L 55 mm Dimension t 20 mm Fit Rd 8-10 mm Intermediate plate no Lightning current carrying capacity N/50 kA Material cast steel Suitable for connection Miscellaneous Surface Hot-dip galvanised Type of connector Clamp connector Type of fastening screw Clamping screw - All types
- Downloads
-
Data sheet 5004 DIN-FT 12 / 5304407 , 0.17MB , pdfEU declaration of conformity 5004 DIN-FT 12 / 5304407 , 0.06MB , pdfREACH Declaration of conformity 5004 DIN-FT 12 / 5304407 , 0.12MB , pdfRoHS Declaration of conformity 5004 DIN-FT 12 / 5304407 , 0.12MB , pdf
