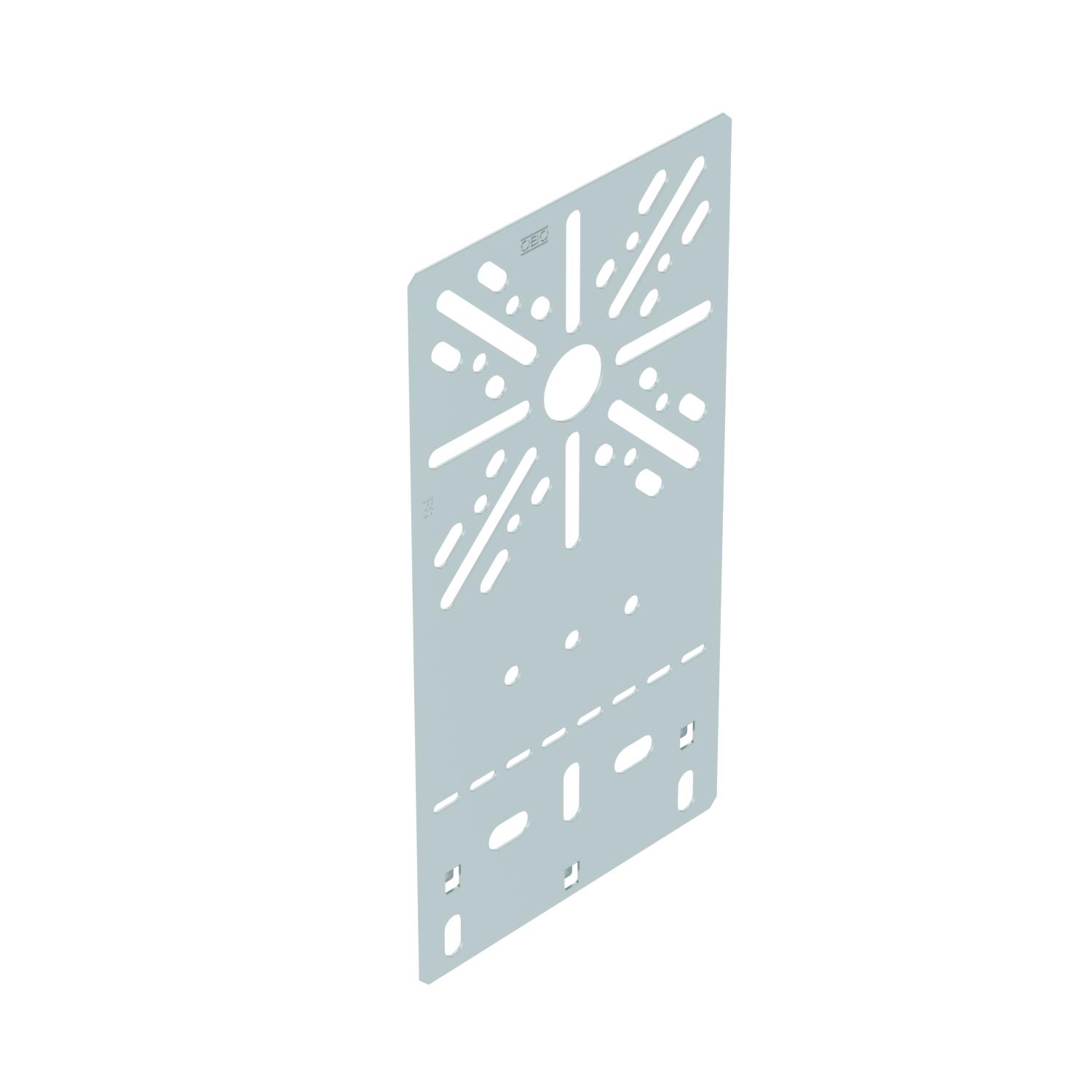

Flat mounting plate DD
Item no. 7085108 | EAN 4012195163268
- Product description
-
Product descriptionFlat mounting plate, for fastening on the side rail of the cable tray.
-
- Technical data
-
Technical data

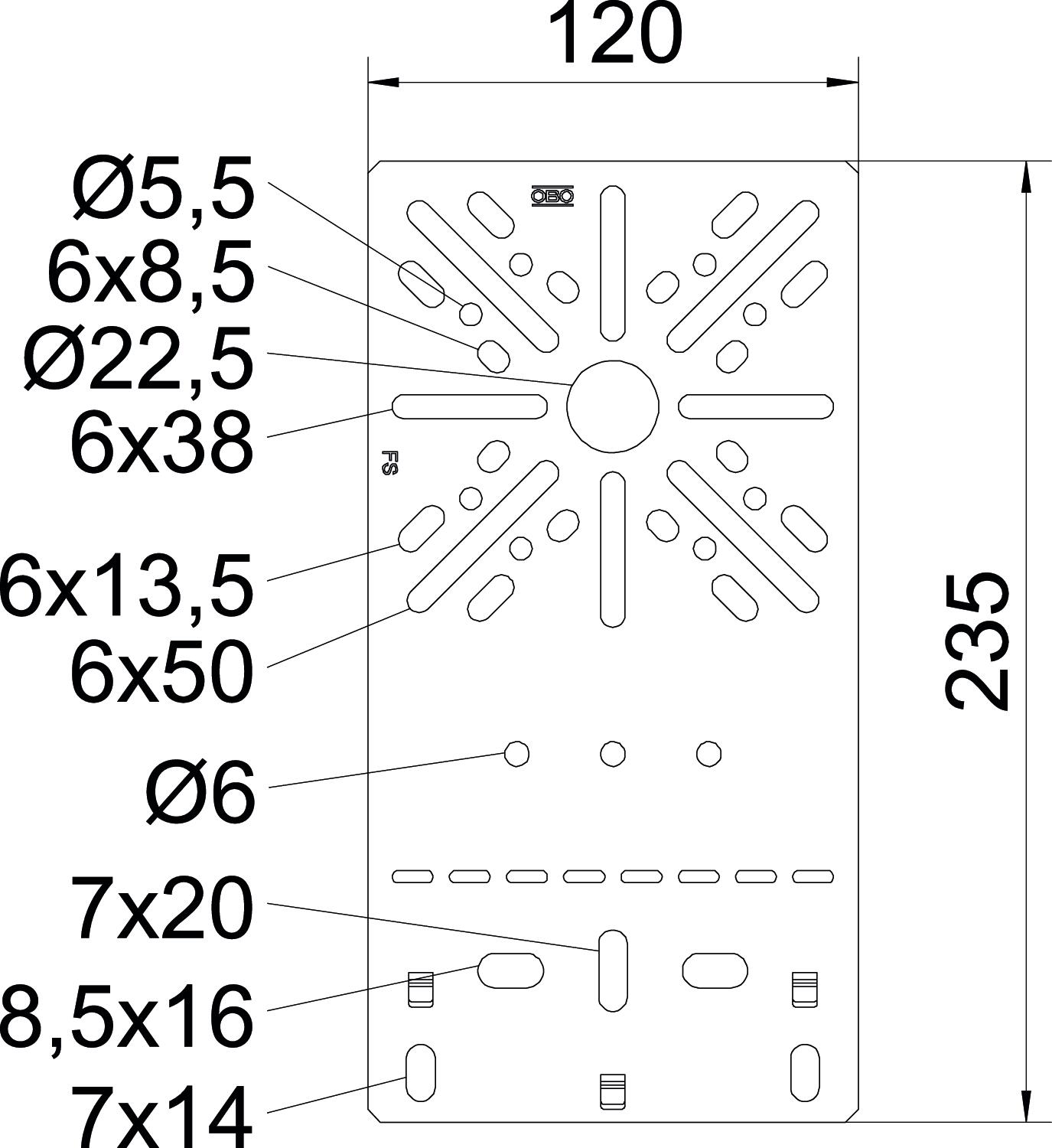

Colour zinc Dimension 235x120 Fastening type Screw fastening Height 235 mm Material Steel Plate thickness 1 mm Rustproof steel, pickled no Surface Strip galvanised zinc/aluminium, Double Dip Version for Vertical Width 4,72 in Width 120 mm - All types
- Downloads
-
Data sheet MP FL DD / 7085108 , 0.21MB , pdfEU declaration of conformity MP FL DD / 7085108 , 0.10MB , pdfUK Declaration of Conformity MP FL DD / 7085108 , 0.09MB , pdfREACH Declaration of conformity MP FL DD / 7085108 , 0.12MB , pdfRoHS Declaration of conformity MP FL DD / 7085108 , 0.12MB , pdfMounting instructions General information on the mounting , 2.65MB , pdf
