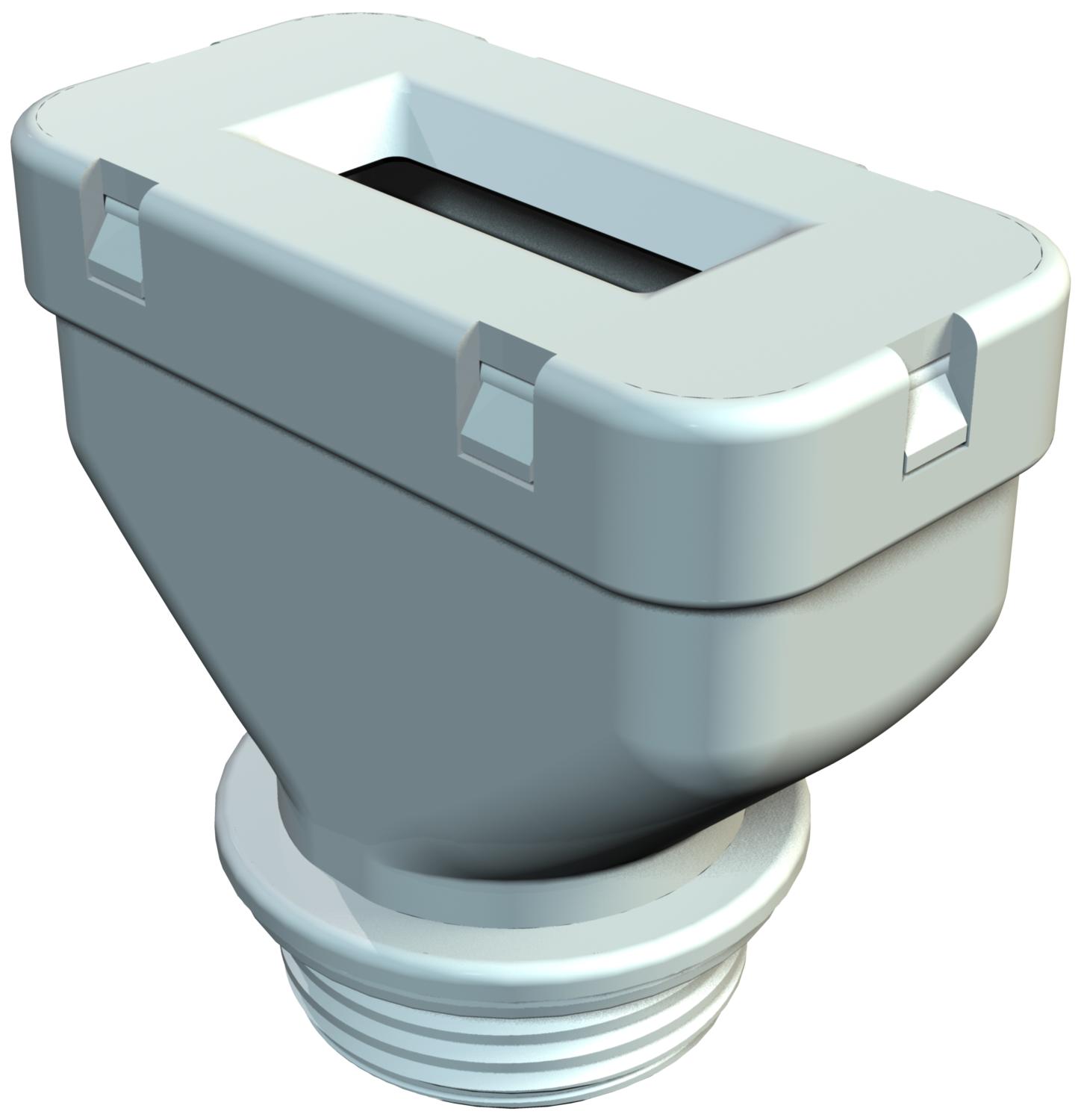

Flat cable threaded connection, PG thread rectangular version, stone grey

Item no. / Types

Flat cable/width, min.

Flat cable/width, max.

Flat cables/thickness, min.

Flat cables/thickness, max.

Thread

Product description

Product description

Flat-cable entry, choke-nipple design with PG connecting thread to DIN 40430, protection rating IP31, with pre-mounted support sealing ring 107/F.

Technical data

Bend protection	no
CO2 Footprint (GWP) Cradle-to-Gate	0,1102 kg CO₂e / 1 Piece
Colour	Stone grey; RAL 7030

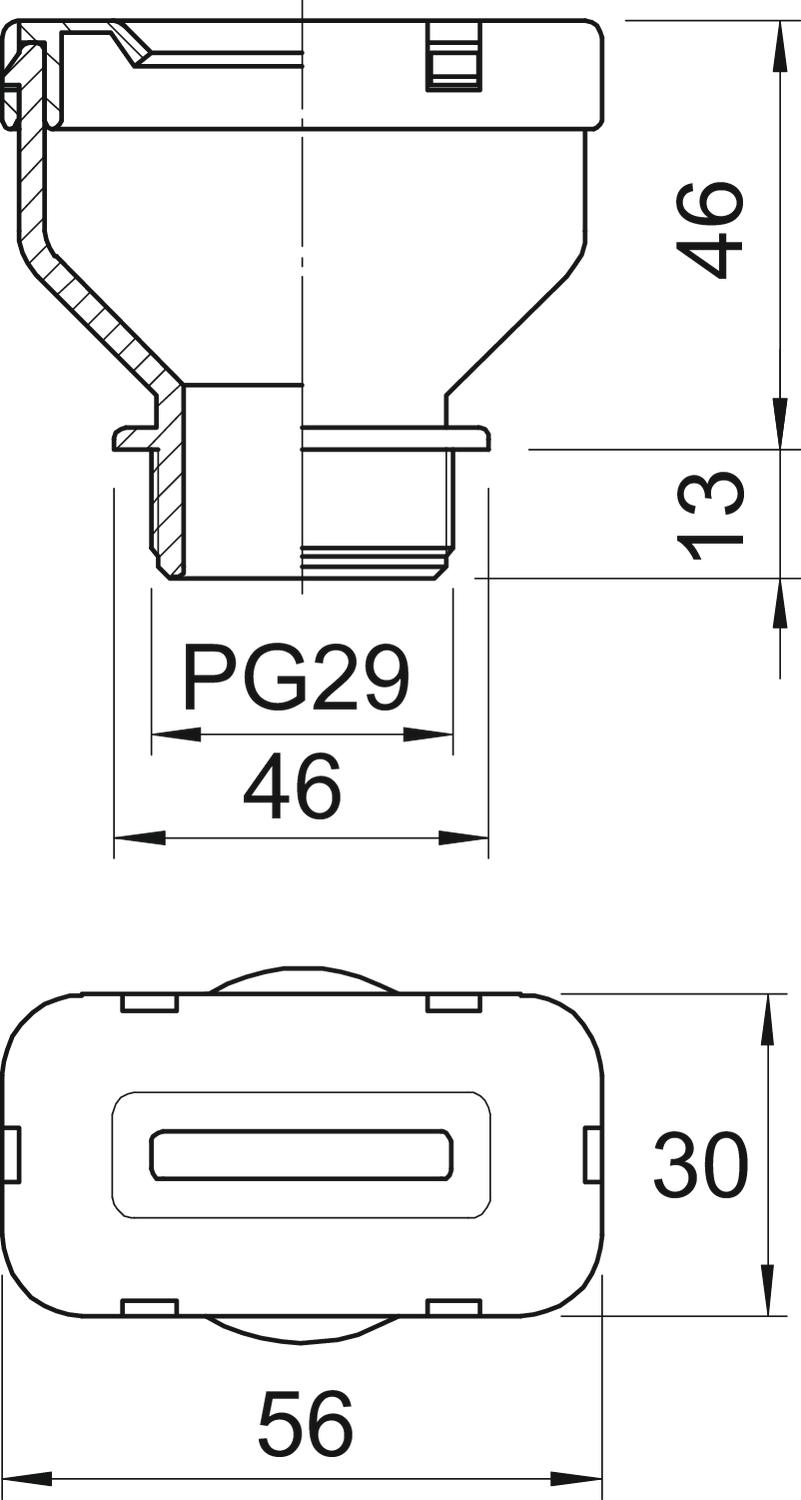

Dimension	PG29
Dimension A	30 mm
Dimension B	56 mm
Dimension D	46 mm
Dimension G	PG29 mm
Dimension L	59 mm
Dimension L1	13 mm
Dimension L2	46 mm
Fibre-glass reinforced	no
Flat cable gland	yes
Flat cable/width, max.	40 mm

All types

All types

Types	Flat cable/width, min.	Flat cable/width, max.	Flat cables/thickness, min.	Flat cables/thickness, max.	Thread	Item no.
106 FL 29 14 40	37 mm	40 mm	11 mm	14 mm	Pg 29	2012774
106 FL 21 8 33	30 mm	33 mm	6 mm	8 mm	Pg 21	2012782
106 FL 21 9 39	36 mm	39 mm	7 mm	9 mm	Pg 21	2012804
106 FL 21 9 22	19 mm	22 mm	7 mm	9 mm	Pg 21	2012820
106 FL 21 10 29	26 mm	29 mm	8 mm	10 mm	Pg 21	2012839
106 FL 21 12 35	31 mm	35 mm	9 mm	12 mm	Pg 21	2012847
106 FL 21 6 30	27 mm	30 mm	4 mm	6 mm	Pg 21	2012855
106 FL 21 10 31	28.5 mm	31.5 mm	8.5 mm	10.5 mm	Pg 21	2012871
106 FL 21 14 40	37 mm	40 mm	11 mm	14 mm	Pg 21	2012928
