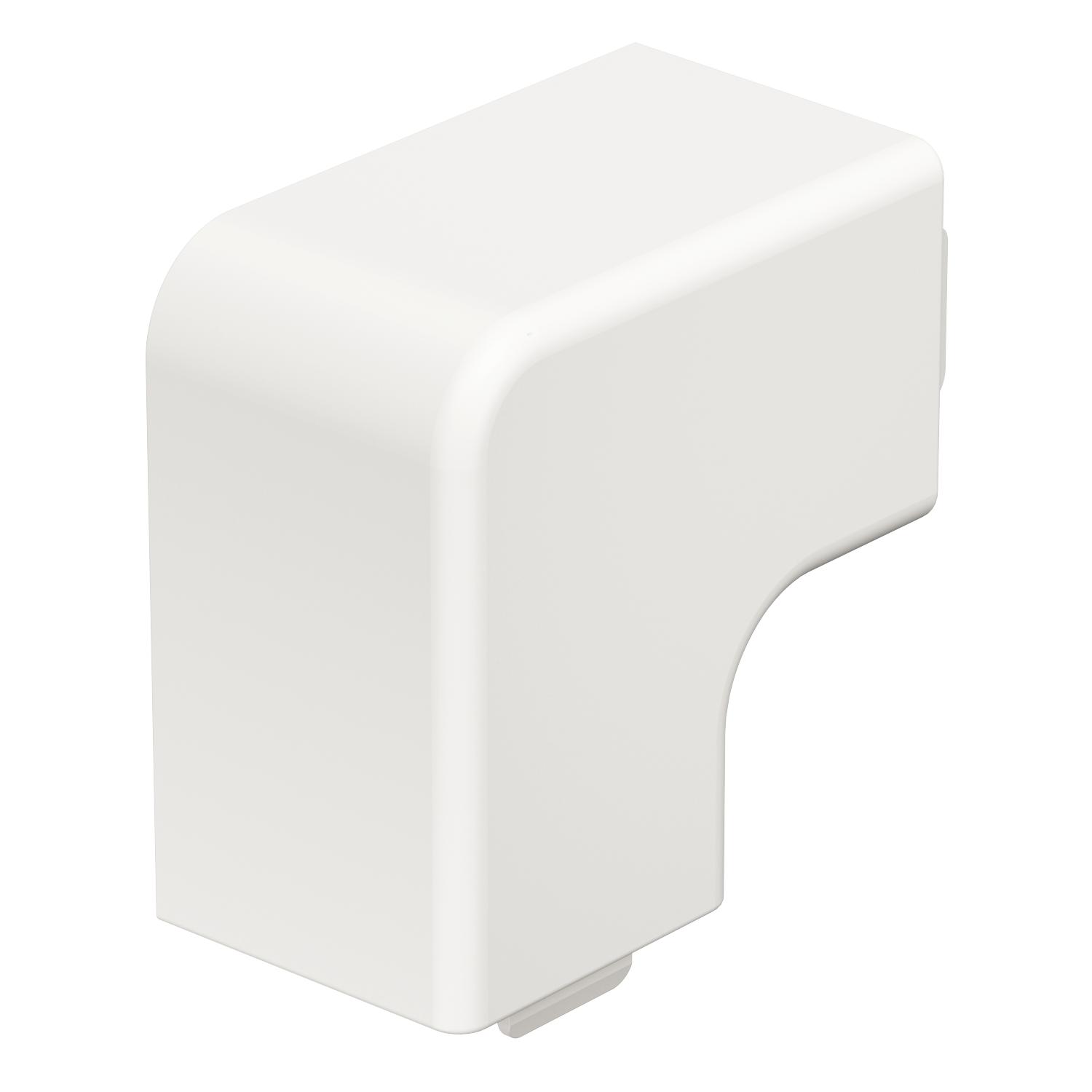

Flat angle cover, trunking type WDK 25025
Item no. 6192785 | EAN 4012196504916
- Product description
-
Product descriptionFlat angle cover for changing the direction of the WDK trunking.
-
- Technical data
-
Technical data
Angle range, max. 90 mm Angle range, min. 90 mm Antibacterial treatment no CO2 Footprint (GWP) Cradle-to-Gate 0,046 kg CO2e / 1 Piece Colour Pure white; RAL 9010 Dimension 25x25mm Dimension a 48 mm Dimension H 25 mm Fastening type Lockable for duct dimension 25 x 25 Halogen-free no Height 25 mm Length 48 mm Maintain electrical functions no Material Polyvinylchloride Permitted temperature range, max. 60 °C Permitted temperature range, min. -5 °C Protection rating IP30 Protection rating IK code IK04 Protective film no Trunking depth 25 mm Version for Hood fitting Width 25 mm - All types
- Downloads
-
Data sheet WDK HF25025RW / 6192785 , 0.15MB , pdfSafety data sheet WDK HF25025RW / 6192785 , 0.02MB , pdfCatalogue Cable routing systems , 17.62MB , pdfEU declaration of conformity WDK HF25025RW / 6192785 , 0.11MB , pdfUK Declaration of Conformity WDK HF25025RW / 6192785 , 0.09MB , pdfREACH Declaration of conformity WDK HF25025RW / 6192785 , 0.12MB , pdfRoHS Declaration of conformity WDK HF25025RW / 6192785 , 0.13MB , pdfMounting instructions Cable trunking WDK , 6.19MB , pdfNo invitation to tender text is available for this product.
