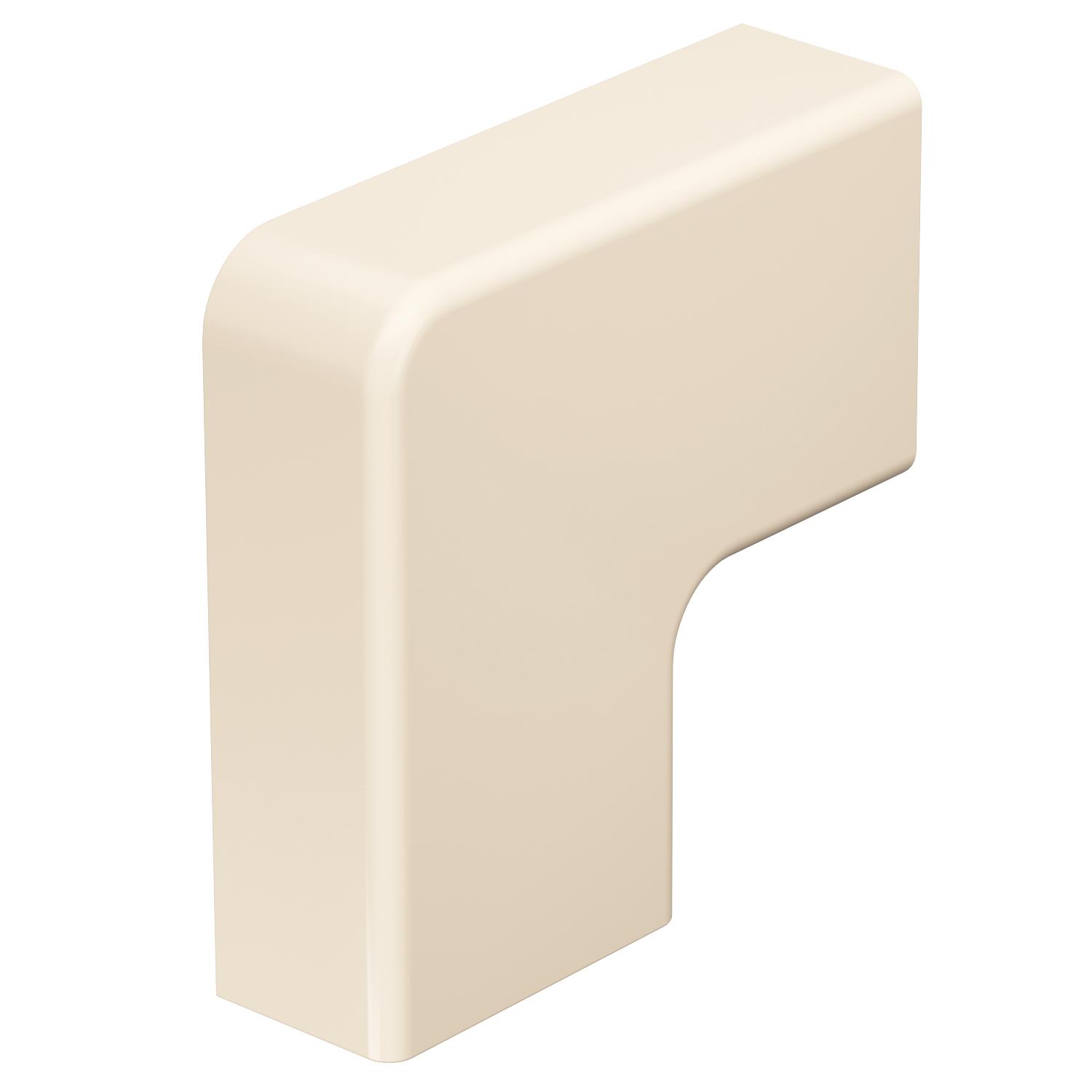

Flat angle cover, for duct type WDK 13025
Item no. 6192740 | EAN 4012195959151
- Product description
-
Product descriptionFlat angle hood for changing the direction of the WDK trunking.
-
- Technical data
-
Technical data

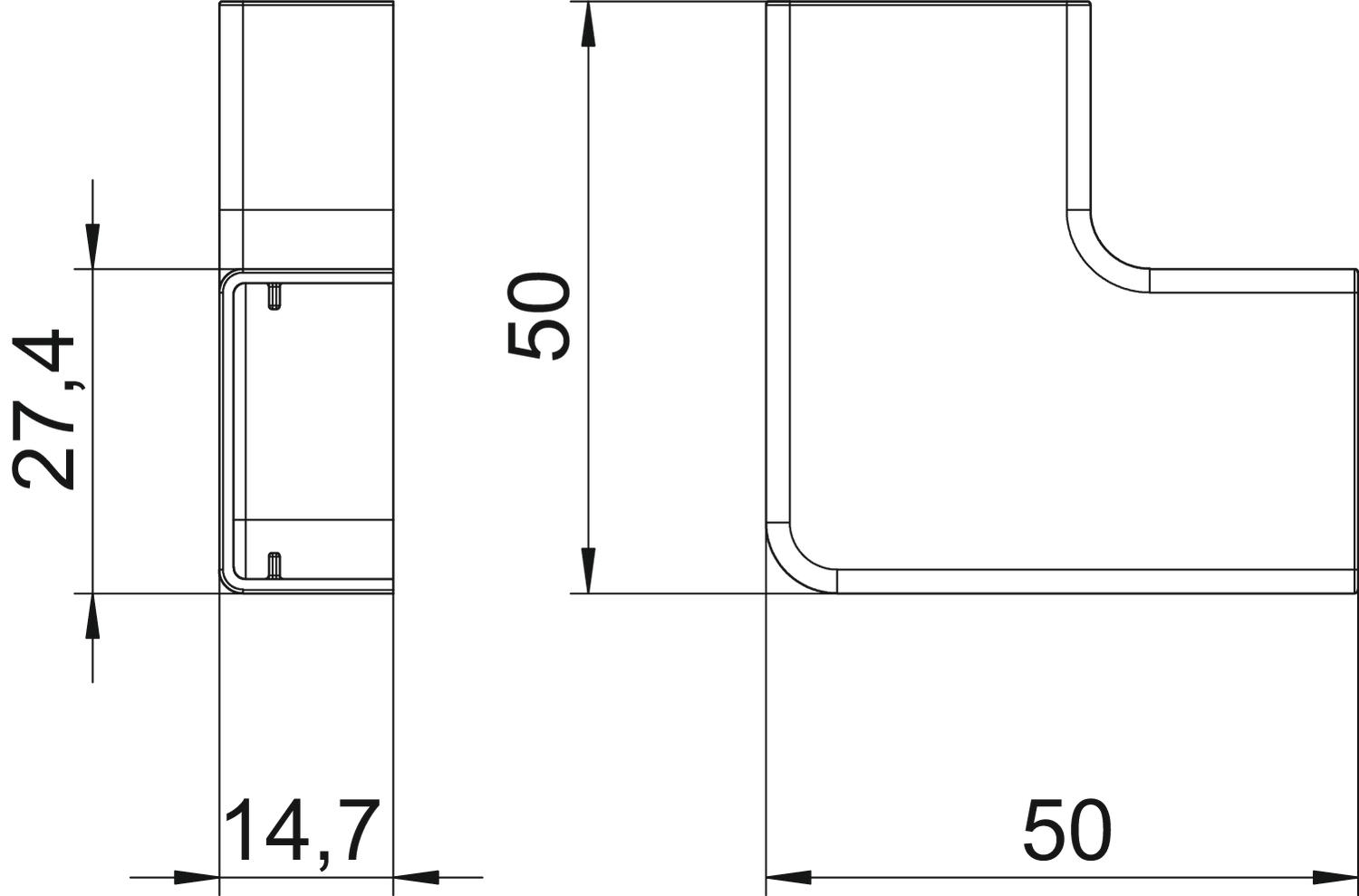

Antibacterial treatment no Colour Oyster white; RAL 1013 Dimension 15x50x50mm Dimension a 50 mm Fastening type Lockable Halogen-free no Height 13 mm Length 50 mm Material Polycarbonate/Acrylnitrile-butadiene-styrene Permitted temperature range, max. 60 °C Permitted temperature range, min. -5 °C Protection rating IP30 Protection rating IK code IK04 Protective film no Version for Hood fitting Width 25 mm - All types
- Downloads
-
Data sheet WDK HF13025PW / 6192740 , 0.19MB , pdfSafety data sheet WDK HF13025PW / 6192740 , 0.02MB , pdfCatalogue cable routing systems , 2.10MB , pdfCatalogue Cable routing systems , 17.62MB , pdfEU declaration of conformity WDK HF13025PW / 6192740 , 0.10MB , pdfUK Declaration of Conformity WDK HF13025PW / 6192740 , 0.09MB , pdfREACH Declaration of conformity WDK HF13025PW / 6192740 , 0.12MB , pdfRoHS Declaration of conformity WDK HF13025PW / 6192740 , 0.13MB , pdfLabel approval VDE symbol approval, WDK , 0.64MB , pdfMounting instructions Mounting instructions Mounting aid WDK , 0.07MB , pdfNo invitation to tender text is available for this product.
